250A 16 Way 125A Outgoers Plain

JN216B

  • Distri­bu­tion systems

250A 16 Way 125A Outgoers Plain JN216B

EAN
5015652263050
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products

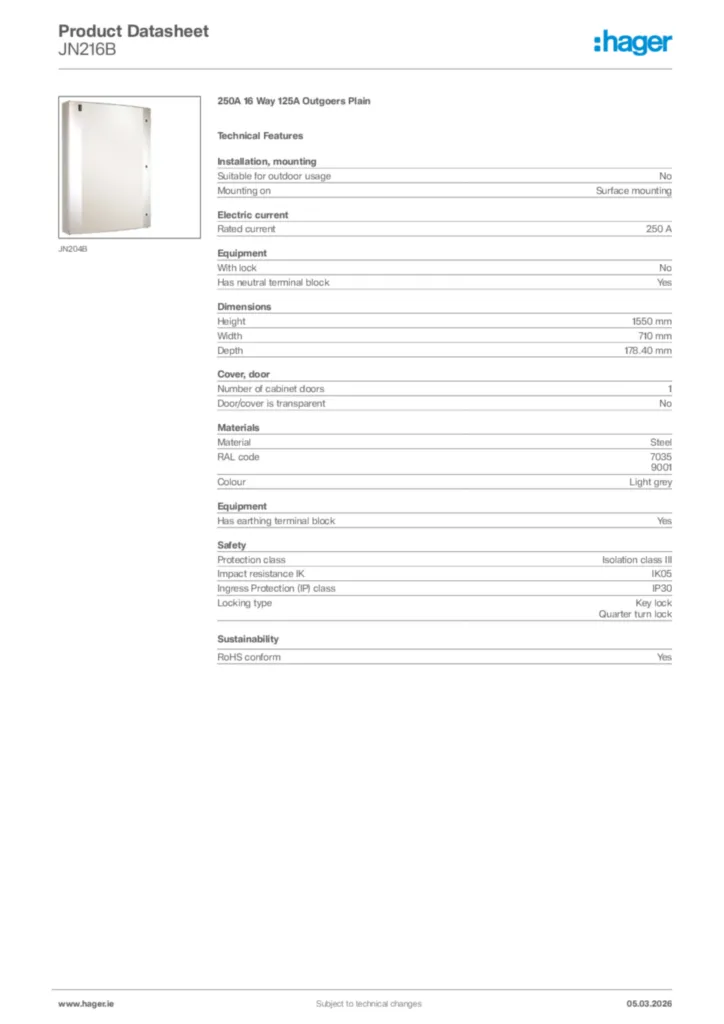

Download the data sheet

Complete your system

Optional accessories

  • Cable entry cabinet 3 products available
  • Distrib­utor assembly with main switch 2 products available
  • Distrib­utor assembly for device surface mounting 1 products available
  • Switch discon­nector 1 products available
  • Small distri­bu­tion board 3 products available
  • See more 4 other products available

Complete your system

  • Cable entry cabinet
  • Distrib­utor assembly with main switch
  • Distrib­utor assembly for device surface mounting
  • Switch discon­nector
  • Small distri­bu­tion board
  • Accessor­ies/s­pare parts for low-voltage switch tech­no­logy
  • Insert for lock system
  • JN15508SM

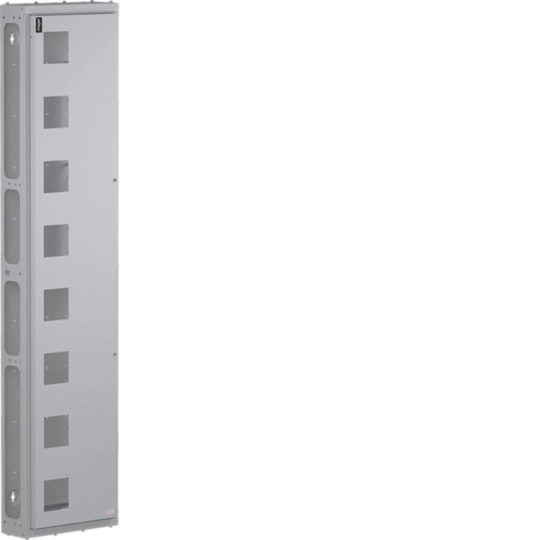

    16 Way Side Extension Encl 1550mm DIN 96 x 8 Meters
    0.00 €  / *
    Add to a list
    Add to a list
  • JN3003TM

    300mm Top Extension
    0.00 €  / *
    Add to a list
    Add to a list
  • JN300CF

    300mm Corner Filler Side Enclosure JN
    0.00 €  / *
    Add to a list
    Add to a list
  • JN223BM

    250A 3 Pole MCCB Incomer Kit
    0.00 €  / *
    Add to a list
    Add to a list
  • JN224BM

    250A 4 Pole MCCB Incomer Kit
    0.00 €  / *
    Add to a list
    Add to a list
  • JK11254D

    125A Direct Connect Incomer Kit
    0.00 €  / *
    Add to a list
    Add to a list
  • JAB410B

    Enclosed Switch Disconnector TPSN 100A
    0.00 €  / *
    Add to a list
    Add to a list
  • JN223BS

    250A 3 Pole Isolator Incomer Kit
    0.00 €  / *
    Add to a list
    Add to a list
  • JN224BD

    250A 4 Pole Direct Connect Incomer kit
    0.00 €  / *
    Add to a list
    Add to a list
  • JN224BS

    250A 4 Pole Isolator Incomer Kit
    0.00 €  / *
    Add to a list
    Add to a list
  • JN001BP

    Single Pole Blank 125A Frame
    0.00 €  / *
    Add to a list
    Add to a list
  • JN201SPD

    250A Panelboard Surge Protection Kit Type I
    0.00 €  / *
    Add to a list
    Add to a list
  • JN202SPD

    250A Panelboard Surge Protection Kit Type II
    0.00 €  / *
    Add to a list
    Add to a list
  • JK222PK

    JK1/JK2 Door Lock Kit
    0.00 €  / *
    Add to a list
    Add to a list

Technical properties

Install­a­tion, mounting
  • Suit­able for outdoor usage
    No
  • Mounting on
    Surface mounting
Elec­tric current
  • Rated current
    250 A
Equip­ment
  • With lock
    No
  • Has neutral terminal block
    Yes
  • Has earthing terminal block
    Yes
Dimen­sions
  • Height
    1,550 mm
  • Width
    710 mm
  • Depth
    178.40 mm
Cover, door
  • Number of cabinet doors
    1
  • Door/­cover is trans­parent
    No
Mater­ials
  • Material
    Steel
  • RAL code
    7035, 9001
  • Colour
    Light grey
Safety
  • Protec­tion class
    Isol­a­tion class III
  • Impact resist­ance IK
    IK05
  • Ingress Protec­tion (IP) class
    IP30
  • Locking type
    Key lock, Quarter turn lock

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

Certifications and documents

REACH declaration JN216B (english)
PDF
103,10 kB
RoHS declaration JN216B (english)
PDF
103,59 kB

Downloads

  • Product image

    Image JN216B | Hager

    Product Image JN216B

  • BIM Revit objects

    Image Panelboard Invicta 3 (250A) -Revit Family 2020 hosted-V2021 | Hager

    Panelboard Invicta 3 (250A) -Revit Family 2020 hosted-V2021

    BIM Revit objects en-GB 2020-01-01

    RFA
    1,10 MB
    Image Panelboard Invicta 3 (250A) -Revit Family 2020 no hosted-V2021 | Hager

    Panelboard Invicta 3 (250A) -Revit Family 2020 no hosted-V2021

    BIM Revit objects en-GB 2020-01-01

    RFA
    1,09 MB
    Image Range : Panelboards. Switchboard IP30. English - Hosted family - REVIT Family 2020 - V2022 | Hager

    Range : Panelboards. Switchboard IP30. English - Hosted family - REVIT Family 2020 - V2022

    BIM Revit objects en-GB 2024-03-22

    RFA
    1,11 MB
    Image Range : Panelboards. Switchboard IP30. English - Non hosted family - REVIT Family 2020 - V2022 | Hager

    Range : Panelboards. Switchboard IP30. English - Non hosted family - REVIT Family 2020 - V2022

    BIM Revit objects en-GB 2024-03-22

    RFA
    1,09 MB

  • Declaration of conformity

    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2021-07-14

    PDF
    149,13 kB
    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-08-24

    PDF
    155,96 kB
    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-08-23

    PDF
    143,04 kB
    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-07-06

    PDF
    149,72 kB
