250A 12 Way 125A Outgoers Plain JN212B

EAN
5015652263043
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

250A 12 Way 125A Outgoers Plain

JN212B

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • See more (14)
    • Distrib­utor assembly for device surface mounting 1 products available
    • Insert for lock system 1 products available
    • Switch discon­nector AC 1 products available
    • Cable entry cabinet 3 products available
    • Accessor­ies/s­pare parts for low-voltage switch tech­no­logy 3 products available
    • Small distri­bu­tion board 3 products available

    Complete your system

    • Distrib­utor assembly for device surface mounting
    • Insert for lock system
    • Switch discon­nector AC
    • Cable entry cabinet
    • Accessor­ies/s­pare parts for low-voltage switch tech­no­logy
    • Small distri­bu­tion board
    • Distrib­utor assembly with main switch
    • JK11254D

      125A Direct Connect Incomer Kit
      0.00 €  / *
    • JK222PK

      JK1/JK2 Door Lock Kit
      0.00 €  / *
    • JAB410B

      Enclosed Switch Disconnector TPSN 100A
      0.00 €  / *
    • JN300CF

      300mm Corner Filler Side Enclosure JN
      0.00 €  / *
    • JN3003TM

      300mm Top Extension
      0.00 €  / *
    • JN12506SM

      12 Way Side Extension Encl 1250mm DIN 96 x 6 Meters
      0.00 €  / *
    • JN202SPD

      250A Panelboard Surge Protection Kit Type II
      0.00 €  / *
    • JN201SPD

      250A Panelboard Surge Protection Kit Type I
      0.00 €  / *
    • JN001BP

      Single Pole Blank 125A Frame
      0.00 €  / *
    • JN224BS

      250A 4 Pole Isolator Incomer Kit
      0.00 €  / *
    • JN224BD

      250A 4 Pole Direct Connect Incomer kit
      0.00 €  / *
    • JN223BS

      250A 3 Pole Isolator Incomer Kit
      0.00 €  / *
    • JN224BM

      250A 4 Pole MCCB Incomer Kit
      0.00 €  / *
    • JN223BM

      250A 3 Pole MCCB Incomer Kit
      0.00 €  / *

    Technical properties

    Connec­tion
    • Number of access­ible phases
      3
    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Surface mounting
    Elec­tric current
    • Rated current
      250 A
    Equip­ment
    • With lock
      No
    Capa­city
    • Number of modules
      36
    Func­tions
    • Has protec­tion main switch
      No
    Dimen­sions
    • Height
      1,250 mm
    • Width
      710 mm
    • Depth
      178.40 mm
    Cover, door
    • Number of cabinet doors
      1
    • Door/­cover is trans­parent
      No
    Mater­ials
    • Material
      Steel
    • RAL code
      7035, 9001
    • Colour
      Light grey
    Safety
    • Protec­tion class
      Isol­a­tion class III
    • Impact resist­ance IK
      IK05
    • Ingress Protec­tion (IP) class
      IP30
    • Locking type
      Key lock, Quarter turn lock

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

    Hager REACH declaration JN212B
    PDF
    Hager RoHS report JN212B
    PDF

    Downloads

    • Product image

      Image JN212B | Hager

      Product Image JN212B

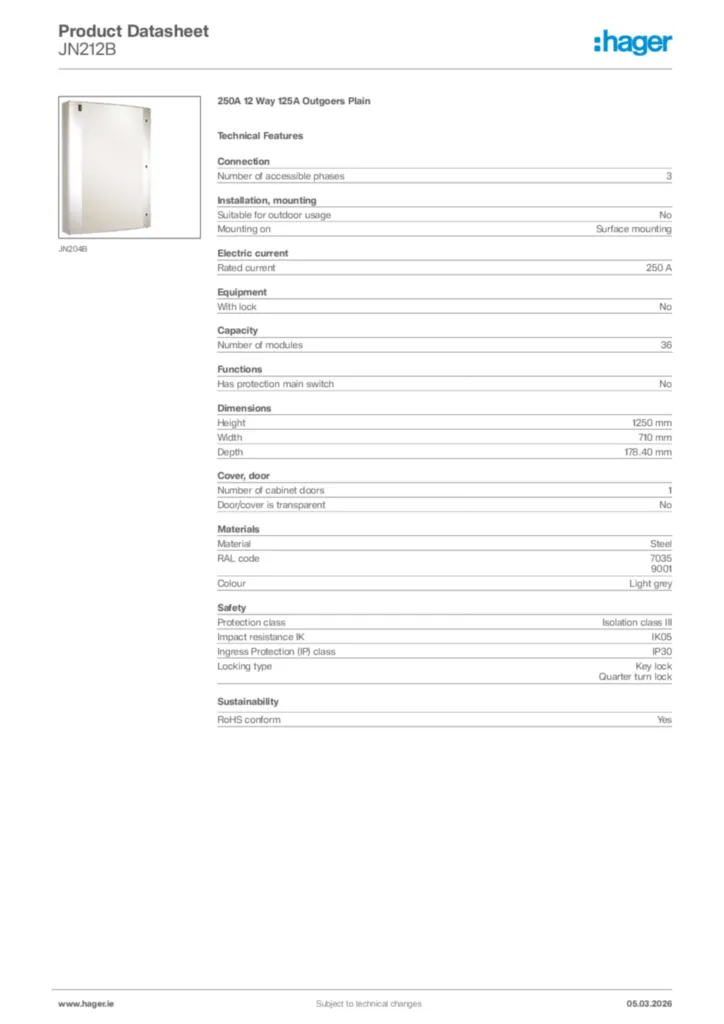

    • Product datasheet

      Image Hager Product data sheet JN212B | Hager

      Hager Product data sheet JN212B

      250A 12 Way 125A Outgoers Plain

      PDF

    • Declaration of conformity

      Image Declaration of conformity en-GB 2025-07-07 | Hager

      Declaration of conformity en-GB 2025-07-07

      PDF
      255,65 kB
      Image Declaration of conformity en-GB 2025-07-07 | Hager

      Declaration of conformity en-GB 2025-07-07

      PDF
      257,00 kB
