400A 12 Way 125A Outgoers Plain • JF412B | Hager
Location Ireland

  • Better buildings. Better tomorrows.

    • Menu
    Account
    EAN
    5015652263715
    Packaging
    1 Piece

    400A 12 Way 125A Outgoers Plain JF412B

    Complete your system

    Optional accessories

  • See more (20)
    • Door/­op­er­ating panel 2 products available
    • Accessor­ies/s­pare parts for low-voltage switch tech­no­logy 1 products available
    • Small distri­bu­tion board 9 products available
    • Switch discon­nector AC 1 products available
    • Insert for lock system 1 products available
    • Distrib­utor assembly for device surface mounting 1 products available

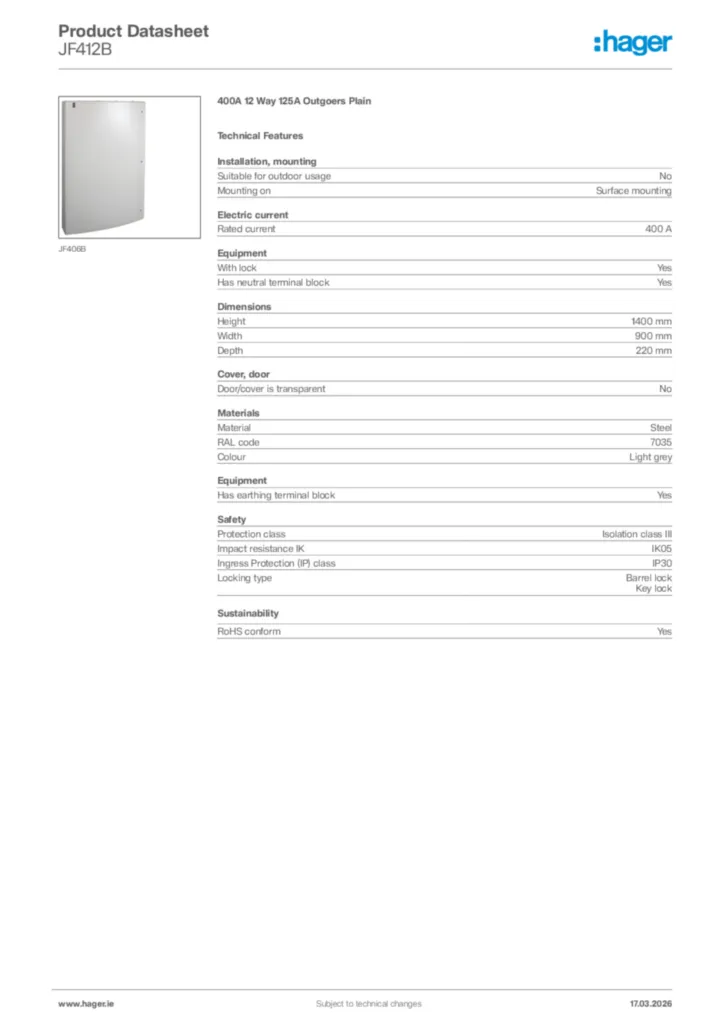

    Technical properties

    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Surface mounting
    Elec­tric current
    • Rated current
      400 A
    Equip­ment
    • With lock
      Yes
    • Has neutral terminal block
      Yes
    • Has earthing terminal block
      Yes
    Dimen­sions
    • Height
      1,400 mm
    • Width
      900 mm
    • Depth
      220 mm
    Cover, door
    • Door/­cover is trans­parent
      No
    Mater­ials
    • Material
      Steel
    • RAL code
      7035
    • Colour
      Light grey
    Safety
    • Protec­tion class
      Isol­a­tion class III
    • Impact resist­ance IK
      IK05
    • Ingress Protec­tion (IP) class
      IP30
    • Locking type
      Barrel lock, Key lock
    • Protec­tion class with door
      IP1X

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

    PEP - 125A 6 Way TPN Board with 4 pole SD & Type II SPD Glazed (english)
    PDF
    1,80 MB
    REACH declaration JF412B
    PDF
    RoHS report JF412B
    PDF

    Downloads

    More documentation
