300mm Top Extension Encl DIN 96 x 4 JF3004TM
EAN
5015654791797
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Blanking plate for enclosure 1 products available
Compatible products
-
Referenced by 9 products available
Referenced by
-
JF418BG400A 18 Way 125A Outgoers Glazed
-
JF416BG
400A 16 Way 125A Outgoers Glazed
-
JF416B400A 16 Way 125A Outgoers Plain
-
JF412BG
400A 12 Way 125A Outgoers Glazed
-
JF412B
400A 12 Way 125A Outgoers Plain
-
JF408BG
400A 8 Way 125A Outgoers Glazed
-
JF408B
400A 8 Way 125A Outgoers Plain
-
JF406BG
400A 6 Way 125A Outgoers Glazed
-
JF406B
400A 6 Way 125A Outgoers Plain
Technical properties
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Equipment
-
Number of rows1
-
With lockNo
-
Has neutral terminal blockNo
-
Has earthing terminal blockYes
Dimensions
-
Height300 mm
-
Width900 mm
-
Depth160 mm
-
Number of width units4
Cover, door
-
Number of cabinet doors1
-
Door/cover is transparentYes
Materials
-
MaterialSteel
-
RAL code7035
-
ColourLight grey
Safety
-
Protection classIsolation class I
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP2XC
-
Locking typeWithout lock
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-

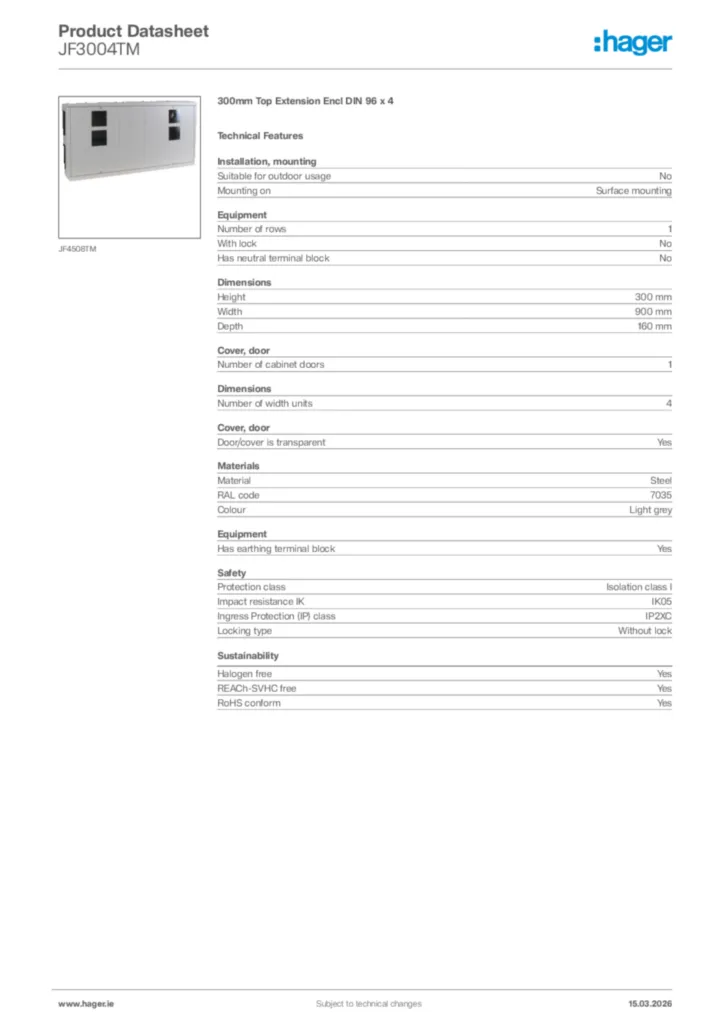

Product datasheet
Hager Product data sheet JF3004TM
300mm Top Extension Encl DIN 96 x 4
PDF -
BIM Revit objects
Panelboard JF Top-Bottom Meter Enclosure -Revit Family 2020 hosted-V2021
BIM Revit objects en-GB 2020-01-01
RFA940,00 kB
Panelboard JF Top-Bottom Meter Enclosure -Revit Family 2020 no hosted-V2021
BIM Revit objects en-GB 2020-01-01
RFA948,00 kB
Range : Panelboard Meter Enclosures. Top bottom meter enclosure IP2XC. English - Hosted family - REVIT Family 2020 - V2022
BIM Revit objects en-GB 2024-03-22
RFA940,00 kB
Range : Panelboard Meter Enclosures. Top bottom meter enclosure IP2XC. English - Non hosted family - REVIT Family 2020 - V2022
BIM Revit objects en-GB 2024-03-22
RFA964,00 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-08-23
PDF142,96 kB
Declaration
Declaration of conformity International 2022-08-23
PDF132,32 kB
Declaration of conformity en-GB 2025-07-07
PDF255,65 kB
Declaration of conformity en-GB 2025-07-07
PDF246,50 kB
Declaration of conformity en-GB 2025-07-07
PDF244,86 kB
Declaration of conformity en-GB 2025-07-07
PDF257,00 kB
More documentation
