400A 8 Way 125A Outgoers Glazed JF408BG
EAN
5015652263708
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Distributor assembly with main switch 4 products available -
Distributor assembly for device surface mounting 1 products available -
Gland plate for enclosure 1 products available -
Door/operating panel 2 products available -
Switch disconnector 1 products available -
See more 12 other products available
Complete your system
-
JF12504SM6/8 Way Side Extension Encl DIN 96 x 4
-
JF3004TM300mm Top Extension Encl DIN 96 x 4
-
JF300CF300mm Corner Filler Side Enclosure
-
JF4508TM
450mm Top Extension Encl DIN 96 x 8
-
JF450CF
450mm Corner Filler Side Enclosure
-
JF801EGSmall DIN Rail Box Glazed
-

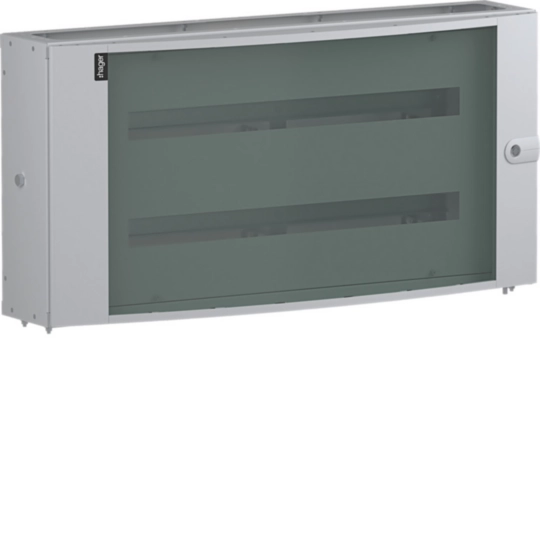

JF803EG
Large DIN Rail Box Glazed
-
JF805E
Small Extension Box No Door
-
JF806E
Large Extension Box No Door
Technical properties
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current400 A
Equipment
-
With lockYes
-
Has neutral terminal blockYes
-
Has earthing terminal blockYes
Dimensions
-
Height1,250 mm
-
Width900 mm
-
Depth220 mm
Cover, door
-
Door/cover is transparentYes
Materials
-
MaterialSteel
-
RAL code7035
-
ColourLight grey
Safety
-
Protection classIsolation class III
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP30
-
Locking typeBarrel lock, Key lock
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
BIM Revit objects
Range : Panelboards. Switchboard. English - Hosted family - REVIT Family 2020 - V2022
BIM Revit objects en-GB 2024-03-22
RFA1,11 MB
Range : Panelboards. Switchboard. English - Non hosted family - REVIT Family 2020 - V2022
BIM Revit objects en-GB 2024-03-22
RFA1,10 MB
Range Panelboard 400A Incoming -Revit Family 2020 hosted-V2021
BIM Revit objects en-GB 2020-01-01
RFA1,10 MB
Range Panelboard 400A Incoming -Revit Family 2020 no hosted-V2021
BIM Revit objects en-GB 2020-01-01
RFA1,09 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-07-14
PDF149,13 kB
Declaration
Declaration of conformity International 2022-08-24
PDF155,96 kB
Declaration
Declaration of conformity International 2022-08-23
PDF143,04 kB
Declaration
Declaration of conformity International 2022-07-06
PDF149,72 kB
More documentation
