    EAN
    5015654791759
    Packaging
    1 Piece
    • Invicta Panel­boards

    6/8 Way Side Extension Encl DIN 96 x 4 JF12504SM

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    6/8 Way Side Extension Encl DIN 96 x 4

    JF12504SM

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

    • Blanking plate for enclosure 1 products available

    Compatible products

    • Referenced by 5 products available

    Complete your system

    • Blanking plate for enclosure
    • JF96BP

      Blanking Plate DIN 96
      0.00 €  / *

    Referenced by

    • JF408BG

      400A 8 Way 125A Outgoers Glazed
      0.00 €  / *
    • JF408B

      400A 8 Way 125A Outgoers Plain
      0.00 €  / *
    • JF406BG

      400A 6 Way 125A Outgoers Glazed
      0.00 €  / *
    • JF406B

      400A 6 Way 125A Outgoers Plain
      0.00 €  / *
    • JF60204BG

      630A 6 Way 2*250A + 4*125A Glazed
      0.00 €  / *

    Technical properties

    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Surface mounting
    Equip­ment
    • With lock
      No
    • Has neutral terminal block
      No
    • Has earthing terminal block
      Yes
    Dimen­sions
    • Height
      1,250 mm
    • Width
      350 mm
    • Depth
      160 mm
    • Number of width units
      4
    Cover, door
    • Number of cabinet doors
      1
    • Door/­cover is trans­parent
      No
    Mater­ials
    • Material
      Steel
    • RAL code
      7035
    • Colour
      Light grey
    Safety
    • Protec­tion class
      Isol­a­tion class I
    • Impact resist­ance IK
      IK05
    • Ingress Protec­tion (IP) class
      IP2XC
    • Locking type
      Without lock

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    PEP - 125A 6 Way TPN Board with 4 pole SD & Type II SPD Glazed (english)
    PDF
    1,80 MB
    Hager REACH declaration JF12504SM
    PDF
    Hager RoHS report JF12504SM
    PDF

    Downloads

    • Product image

      Image JF12504SM | Hager

      Product Image JF12504SM

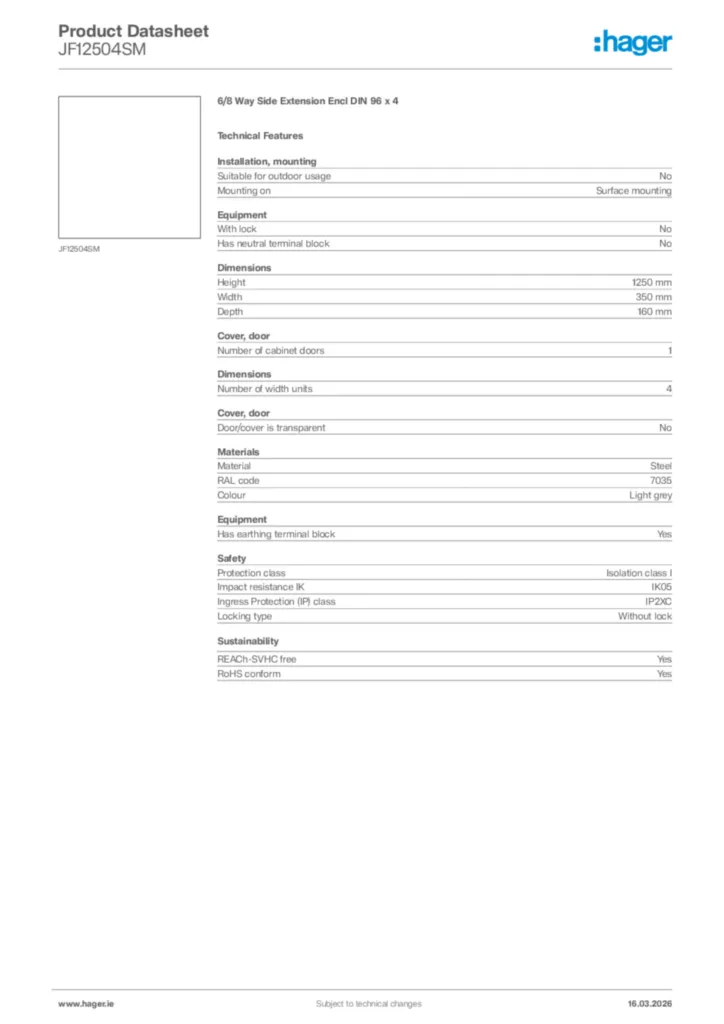

    • Product datasheet
