large DIN Rail Box Plain

JF803E

  • Distri­bu­tion systems

large DIN Rail Box Plain JF803E

EAN
5015652264194
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products

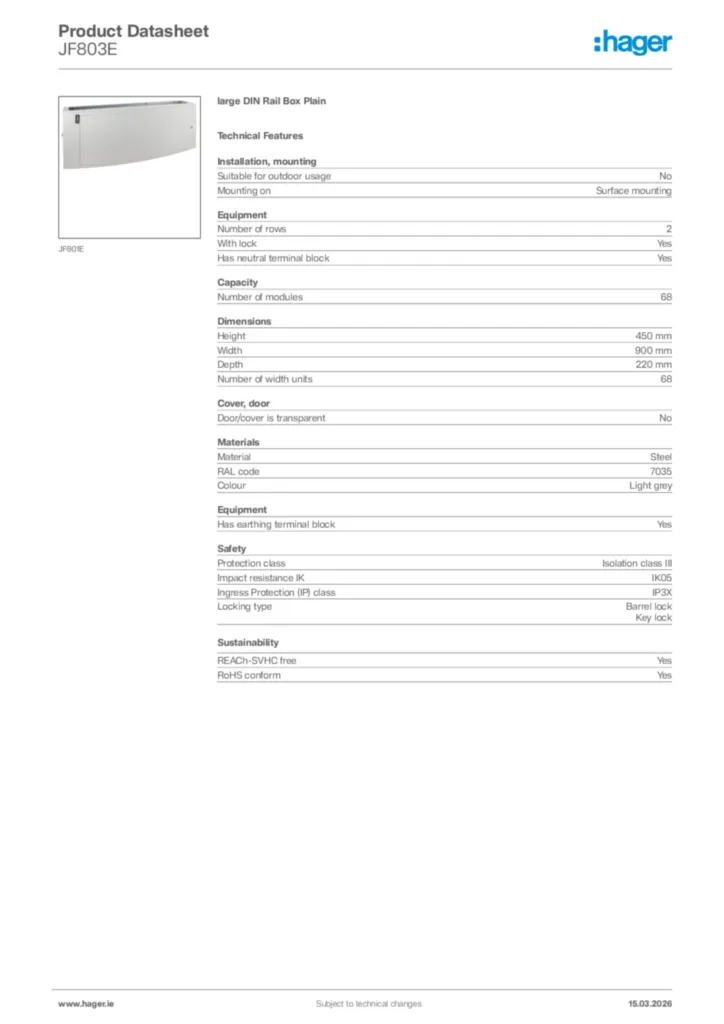

Download the data sheet

Complete your system

Optional accessories

  • Gland plate for enclosure 1 products available

Complete your system

  • Gland plate for enclosure
  • JFPLATE

    Spare Endplate for JF boards
    0.00 €  / *
    Add to a list
    Add to a list

Technical properties

Install­a­tion, mounting
  • Suit­able for outdoor usage
    No
  • Mounting on
    Surface mounting
Equip­ment
  • Number of rows
    2
  • With lock
    Yes
  • Has neutral terminal block
    Yes
  • Has earthing terminal block
    Yes
Capa­city
  • Number of modules
    68
Dimen­sions
  • Height
    450 mm
  • Width
    900 mm
  • Depth
    220 mm
  • Number of width units
    68
Cover, door
  • Door/­cover is trans­parent
    No
Mater­ials
  • Material
    Steel
  • RAL code
    7035
  • Colour
    Light grey
Safety
  • Protec­tion class
    Isol­a­tion class III
  • Impact resist­ance IK
    IK05
  • Ingress Protec­tion (IP) class
    IP3X
  • Locking type
    Barrel lock, Key lock

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
REACH conform Yes

Certifications and documents

REACH declaration JF803E (english)
PDF
103,10 kB
RoHS declaration JF803E (english)
PDF
103,59 kB

Downloads

  • Product image

    Image JF803E | Hager

    Product Image JF803E

  • BIM Revit objects

    Image Range : Panelboards. Switchboard IP3X with DIN rail system. English - Hosted family - REVIT Family 2020 - V2022 | Hager

    Range : Panelboards. Switchboard IP3X with DIN rail system. English - Hosted family - REVIT Family 2020 - V2022

    BIM Revit objects en-GB 2024-03-22

    RFA
    1,23 MB
    Image Range : Panelboards. Switchboard IP3X with DIN rail system. English - Hosted family - REVIT Family 2020 - V2022 | Hager

    Range : Panelboards. Switchboard IP3X with DIN rail system. English - Hosted family - REVIT Family 2020 - V2022

    BIM Revit objects en-GB 2024-03-22

    RFA
    1,23 MB
    Image Range : Panelboards. Switchboard IP3X with DIN rail system. English - Non hosted family - REVIT Family 2020 - V2022 | Hager

    Range : Panelboards. Switchboard IP3X with DIN rail system. English - Non hosted family - REVIT Family 2020 - V2022

    BIM Revit objects en-GB 2024-03-22

    RFA
    1,21 MB
    Image Range : Panelboards. Switchboard IP3X with DIN rail system. English - Non hosted family - REVIT Family 2020 - V2022 | Hager

    Range : Panelboards. Switchboard IP3X with DIN rail system. English - Non hosted family - REVIT Family 2020 - V2022

    BIM Revit objects en-GB 2024-03-22

    RFA
    1,21 MB
    Image Range Panelboard 600A-800A Cable Spreader Extension -Revit Family 2020 hosted-V2021 | Hager

    Range Panelboard 600A-800A Cable Spreader Extension -Revit Family 2020 hosted-V2021

    BIM Revit objects en-GB 2020-01-01

    RFA
    1,58 MB
    Image Range Panelboard 600A-800A DIN Rail Extension -Revit Family 2020 no hosted-V2021 | Hager

    Range Panelboard 600A-800A DIN Rail Extension -Revit Family 2020 no hosted-V2021

    BIM Revit objects en-GB 2020-01-01

    RFA
    1,21 MB
    Image Range Panelboard 800A Cable Spreader Extension -Revit Family 2020 no hosted-V2021 | Hager

    Range Panelboard 800A Cable Spreader Extension -Revit Family 2020 no hosted-V2021

    BIM Revit objects en-GB 2020-01-01

    RFA
    1,21 MB
    Image Range Panelboard 800A DIN Rail Extension -Revit Family 2020 hosted-V2021 | Hager

    Range Panelboard 800A DIN Rail Extension -Revit Family 2020 hosted-V2021

    BIM Revit objects en-GB 2020-01-01

    RFA
    1,58 MB

  • Declaration of conformity

    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-08-23

    PDF
    142,96 kB
    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-08-23

    PDF
    132,32 kB
    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-06-07

    PDF
    446,57 kB
    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2021-07-14

    PDF
    149,13 kB
    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-08-24

    PDF
    155,96 kB
    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-08-23

    PDF
    143,04 kB
    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-07-06

    PDF
    149,72 kB
