Small DIN Rail Box Plain JF801E

EAN
5015652264170
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Small DIN Rail Box Plain

JF801E

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • Gland plate for enclosure 1 products available

Compatible products

  • Referenced by 6 products available

Complete your system

  • Gland plate for enclosure
  • JFPLATE

    Spare Endplate for JF boards
    0.00 €  / *

Referenced by

  • JF812B

    800A 12 Way 125A Outgoers Plain
    0.00 €  / *
  • JF416B

    400A 16 Way 125A Outgoers Plain
    0.00 €  / *
  • JF412B

    400A 12 Way 125A Outgoers Plain
    0.00 €  / *
  • JF408B

    400A 8 Way 125A Outgoers Plain
    0.00 €  / *
  • JF406B

    400A 6 Way 125A Outgoers Plain
    0.00 €  / *
  • JF818B

    800A 18 Way 125A Outgoers Plain
    0.00 €  / *

Technical properties

Install­a­tion, mounting
  • Suit­able for outdoor usage
    No
  • Mounting on
    Surface mounting
Equip­ment
  • Number of rows
    1
  • With lock
    Yes
  • Has neutral terminal block
    Yes
  • Has earthing terminal block
    Yes
Capa­city
  • Number of modules
    34
Dimen­sions
  • Height
    300 mm
  • Width
    900 mm
  • Depth
    220 mm
  • Number of width units
    34
Cover, door
  • Door/­cover is trans­parent
    No
Mater­ials
  • Material
    Steel
  • RAL code
    7035
  • Colour
    Light grey
Safety
  • Protec­tion class
    Isol­a­tion class III
  • Impact resist­ance IK
    IK05
  • Ingress Protec­tion (IP) class
    IP3X
  • Locking type
    Barrel lock, Key lock

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
REACh-SVHC free Yes

Certifications and documents

Hager REACH declaration JF801E
PDF
Hager RoHS report JF801E
PDF

Downloads

  • Product image

    Image JF801E | Hager

    Product Image JF801E

  • Product datasheet

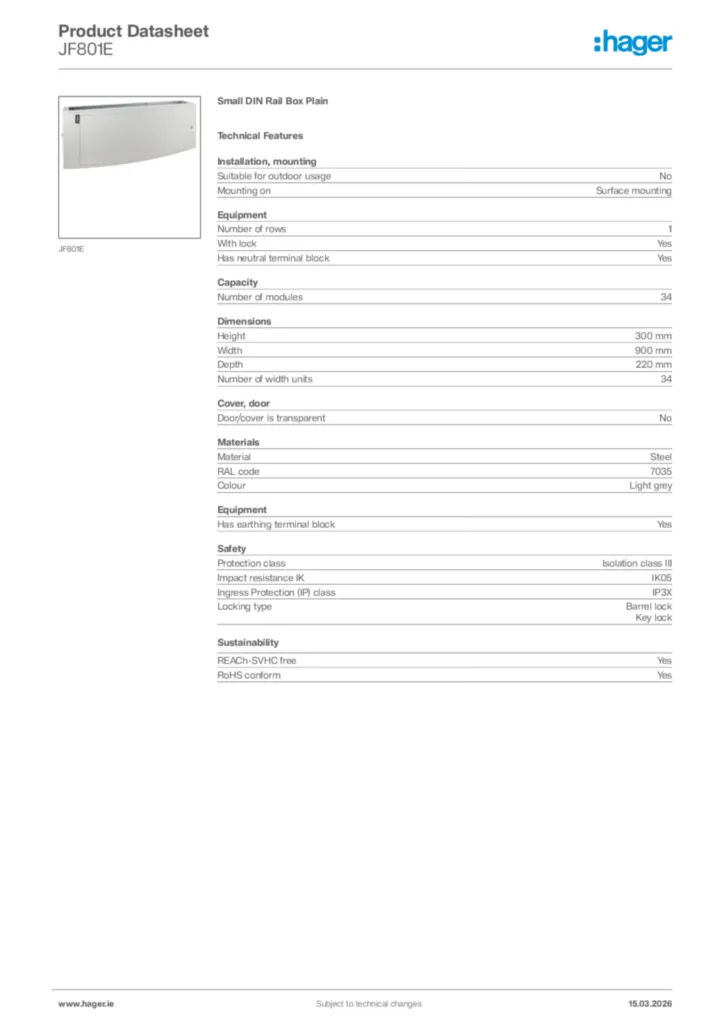

    Image Hager Product data sheet JF801E | Hager

    Hager Product data sheet JF801E

    Small DIN Rail Box Plain

    PDF

  • BIM Revit objects

    Image Range : Panelboards. Switchboard IP3X with DIN rail system. English - Hosted family - REVIT Family 2020 - V2022 | Hager

    Range : Panelboards. Switchboard IP3X with DIN rail system. English - Hosted family - REVIT Family 2020 - V2022

    BIM Revit objects en-GB 2024-03-22

    RFA
    1,23 MB
    Image Range : Panelboards. Switchboard IP3X with DIN rail system. English - Hosted family - REVIT Family 2020 - V2022 | Hager

    Range : Panelboards. Switchboard IP3X with DIN rail system. English - Hosted family - REVIT Family 2020 - V2022

    BIM Revit objects en-GB 2024-03-22

    RFA
    1,23 MB
    Image Range : Panelboards. Switchboard IP3X with DIN rail system. English - Non hosted family - REVIT Family 2020 - V2022 | Hager

    Range : Panelboards. Switchboard IP3X with DIN rail system. English - Non hosted family - REVIT Family 2020 - V2022

    BIM Revit objects en-GB 2024-03-22

    RFA
    1,21 MB
    Image Range : Panelboards. Switchboard IP3X with DIN rail system. English - Non hosted family - REVIT Family 2020 - V2022 | Hager

    Range : Panelboards. Switchboard IP3X with DIN rail system. English - Non hosted family - REVIT Family 2020 - V2022

    BIM Revit objects en-GB 2024-03-22

    RFA
    1,21 MB
    Image Range Panelboard 600A-800A Cable Spreader Extension -Revit Family 2020 hosted-V2021 | Hager

    Range Panelboard 600A-800A Cable Spreader Extension -Revit Family 2020 hosted-V2021

    BIM Revit objects en-GB 2020-01-01

    RFA
    1,58 MB
    Image Range Panelboard 600A-800A DIN Rail Extension -Revit Family 2020 no hosted-V2021 | Hager

    Range Panelboard 600A-800A DIN Rail Extension -Revit Family 2020 no hosted-V2021

    BIM Revit objects en-GB 2020-01-01

    RFA
    1,21 MB
    Image Range Panelboard 800A Cable Spreader Extension -Revit Family 2020 no hosted-V2021 | Hager

    Range Panelboard 800A Cable Spreader Extension -Revit Family 2020 no hosted-V2021

    BIM Revit objects en-GB 2020-01-01

    RFA
    1,21 MB
    Image Range Panelboard 800A DIN Rail Extension -Revit Family 2020 hosted-V2021 | Hager

    Range Panelboard 800A DIN Rail Extension -Revit Family 2020 hosted-V2021

    BIM Revit objects en-GB 2020-01-01

    RFA
    1,58 MB

  • Declaration of conformity

    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-08-23

    PDF
    142,96 kB
    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-08-23

    PDF
    132,32 kB
    Image Declaration of conformity en-GB 2025-07-07 | Hager

    Declaration of conformity en-GB 2025-07-07

    PDF
    167,21 kB
    Image Declaration of conformity en-GB 2025-07-07 | Hager

    Declaration of conformity en-GB 2025-07-07

    PDF
    167,62 kB
    Image Declaration of conformity en-GB 2025-07-07 | Hager

    Declaration of conformity en-GB 2025-07-07

    PDF
    257,00 kB
    Image Declaration of conformity en-GB 2025-07-07 | Hager

    Declaration of conformity en-GB 2025-07-07

    PDF
    244,86 kB
    Image Declaration of conformity en-GB 2025-07-07 | Hager

    Declaration of conformity en-GB 2025-07-07

    PDF
    246,50 kB
    Image Declaration of conformity en-GB 2025-07-07 | Hager

    Declaration of conformity en-GB 2025-07-07

    PDF
    255,65 kB
