Enclosure, univers, IP54, CL 1, 1100x1300x205mm, empty FP75TW2

EAN
3250612667963
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Enclosure, univers, IP54, CL 1, 1100x1300x205mm, empty

FP75TW2

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • See more (48)
    • Lock system 10 products available
    • Accessor­ies/s­pare parts for earthing and light­ning 1 products available
    • Busbar 2 products available
    • Docu­ment holder 7 products available
    • Compon­ents for wiring, cable entry and cable fixing 5 products available
    • Gland plate for enclosure 6 products available

    Complete your system

    • Lock system
    • Accessor­ies/s­pare parts for earthing and light­ning
    • Busbar
    • Docu­ment holder
    • Compon­ents for wiring, cable entry and cable fixing
    • Gland plate for enclosure
    • Compon­ents for arrange­ment/baying system
    • Heater for enclosure
    • Ther­mo­stat/hy­gro­stat (switchgear cabinet)
    • Touch-up stick
    • Mounting accessories
    • Distrib­utor assembly busbars
    • DIN rail
    • Cable gland
    • FZ451N

      Lock, univers, square 7mm, with 1 key, for enclosure IP44/54

      0.00 €  / *
    • FZ450N

      Lock, univers, triangular 7mm, with 1 key, for enclosure IP44/54

      0.00 €  / *
    • FZ449N

      Lock, univers, double-bit, 3mm, with 1 key, for enclosure IP44/54

      0.00 €  / *
    • FZ597N

      Lock, univers, cylinder Nr.1242E, with 2 keys, for enclosure IP44/54

      0.00 €  / *
    • FZ501N

      Lock, univers, double-bit 3mm, with 1 key, for enclosure IP54

      0.00 €  / *
    • FZ502N

      Lock, univers, triangular closing 7mm, with 1 key, for enclosure IP54

      0.00 €  / *
    • FZ837N

      Locking rods, univers, for IP54 Locking, for use in enclosures height 1100mm

      0.00 €  / *
    • FZ531N

      Lock, univers, knob handle, cylinder Nr.1333, with 2 keys, for encl. IP44/IP54

      0.00 €  / *
    • FZ533N

      Lock, univers, pawl rod handle, with lock-Nr.1333, with 2 keys, IP44/IP54

      0.00 €  / *
    • FZ534N

      Swing lever, univers, for profile cylinder 40mm, for enclosure IP44/54

      0.00 €  / *
    • UZ009

      PE cable, universN, 25mm², 300mm, both cable shoe 6mm / 8mm

      0.00 €  / *
    • ZM11C

      Busbar, univers Z, CU 12x5 mm, 1-panel

      0.00 €  / *
    • ZM12C

      Busbar, univers Z, CU 12x5 mm, 2-panel

      0.00 €  / *
    • FZ707

      Document holder, metal, with screws for door mounting

      0.00 €  / *
    • FZ794

      Document holder, transparent, DIN A4, adhesive

      0.00 €  / *
    • FZ757M

      Document holder, magnetic, DIN A4

      0.00 €  / *
    • FZ757A5

      Document holder, adhesive, DIN A5

      0.00 €  / *
    • FZ757A4

      Document holder, glued, DIN A4

      0.00 €  / *
    • FZ818

      Document holder, plastic, DIN A4, adhesive

      0.00 €  / *
    • FZ710

      Document holder, Univers

      0.00 €  / *
    • FZ460NT

      Cable entry plate, univers, CL1, IP44/54, 6xM16, 2xM20, 2xM16/25, 1xM25/40/50

      0.00 €  / *
    • FZ466NT

      Cable entry plate, univers, CL 1, IP44/54 15 x M16 and 4 x M20 precuts

      0.00 €  / *
    • FZ468NT

      Cable entry plate, univers, CL 1, IP44/54, without precuts

      0.00 €  / *
    • FZ365N

      Flexible adapter, univers, for lateral connection of FP to cable spreader box

      0.00 €  / *
    • FZ850S

      Cable strain relief rail, univers, 1 section, C-profile 30x15x100mm, slot 16mm

      0.00 €  / *
    • FZ426

      Cable entry plate, univers, for not sealed area, for perforation, IP44/54

      0.00 €  / *
    • FZ428

      Cable entry plate, univers, for enclosure IP44 / IP54, back side, D160 / 205 mm

      0.00 €  / *
    • FZ425

      Cable entry plate, univers, for sealed area, with cut-outs, IP44/54

      0.00 €  / *
    • FZ424N

      Cable entry plate, univers, for IP44/54 enclosures, metal

      0.00 €  / *
    • FZ461

      Metal cable entry plate CL1, Univers, with 15 holes 225x85 mm

      0.00 €  / *
    • FZ462

      Metal cable entry plate CL1, Univers, with 11 holes 225x85 mm

      0.00 €  / *
    • FZ737B

      Connection set, univers Z, for enclosure connection IP44/54 horizontal

      0.00 €  / *
    • FZ445S

      Associaton kit univers, vertical, for enclosures 5-sections D:160/205mm, Quickset

      0.00 €  / *
    • FZ890N

      Wall fixation rail, univers, 2m, for enclosure IP44 / IP54

      0.00 €  / *
    • FL252Z

      Heaters, quadro.system, 15 W 230 V AC/DC

      0.00 €  / *
    • FL253Z

      Heaters, quadro.system, 30 W 230 V AC/DC

      0.00 €  / *
    • FL258Z

      Thermostat, quadro.system, 10 A 230 V AC

      0.00 €  / *
    • FZ792N

      Color spray, 150ml RAL 9010

      0.00 €  / *
    • UT90G

      Carrier rail, universN, simple

      0.00 €  / *
    • FZ803B

      Mounting brackets, univers, for enclosure IP44/IP54, outside

      0.00 €  / *
    • UE21D1

      Kit, universN, 300x250mm, with busbar 50mm, 4x 25x4mm, vertical

      0.00 €  / *
    • UN07A

      Carrier rails, univers, for enclosures ex depth = 160mm, L = 1050mm, 2 pieces

      0.00 €  / *
    • UN06A

      Carrier rails, univers, for enclosures ex depth = 160mm, L = 900mm, 2 pieces

      0.00 €  / *
    • UN02A

      Carrier rails, univers, for enclosures ex depth = 160mm, L = 300mm, 2 pieces

      0.00 €  / *
    • U82A

      DIN rail, univers, 7, 5 mm, depth-adjustable until 32, 5mm, 11 modules wide (200mm)

      0.00 €  / *
    • UT12PN

      Horizontal traverse, Univers, L500 mm 2 section

      0.00 €  / *
    • UT12QN

      Horizontal traverse, Univers, L750 mm 3 section

      0.00 €  / *
    • FZ850M

      Cable gland, M50, with counter nut, for lateral cable insert

      0.00 €  / *

    Technical properties

    Dimen­sions
    • Height
      1,100 mm
    • Width
      1,300 mm
    • Depth
      205 mm
    • Thick­ness of side­wall
      1 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP54
    • Protec­tion class
      Isol­a­tion class I
    • Impact resist­ance IK
      IK09
    Equip­ment
    • Number of section in width
      5
    • Number of flange plate open­ings
      10
    • Number of rows
      7
    Install­a­tion, mounting
    • Mounting on
      Wall mounting
    • Suit­able for outdoor usage
      No
    Mater­ials
    • Colour
      Pure white
    • RAL code
      9010
    • Treat­ment
      Powder coated
    • Material
      Steel
    • Surface finish
      Matt
    Cover, door
    • Number of cabinet doors
      2
    • Number of locks
      1
    • Door/­cover is trans­parent
      No
    Elec­tric current
    • Rated current
      250 A

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

    FWB enclosure,UNIVERS range, 5-rows 180 modules
    PDF
    49,47 MB
    Hager REACH declaration FP75TW2
    PDF
    Hager RoHS report FP75TW2
    PDF

    Downloads

    • Product image

      Image FP75TW2  | Hager

      Product Image FP75TW2

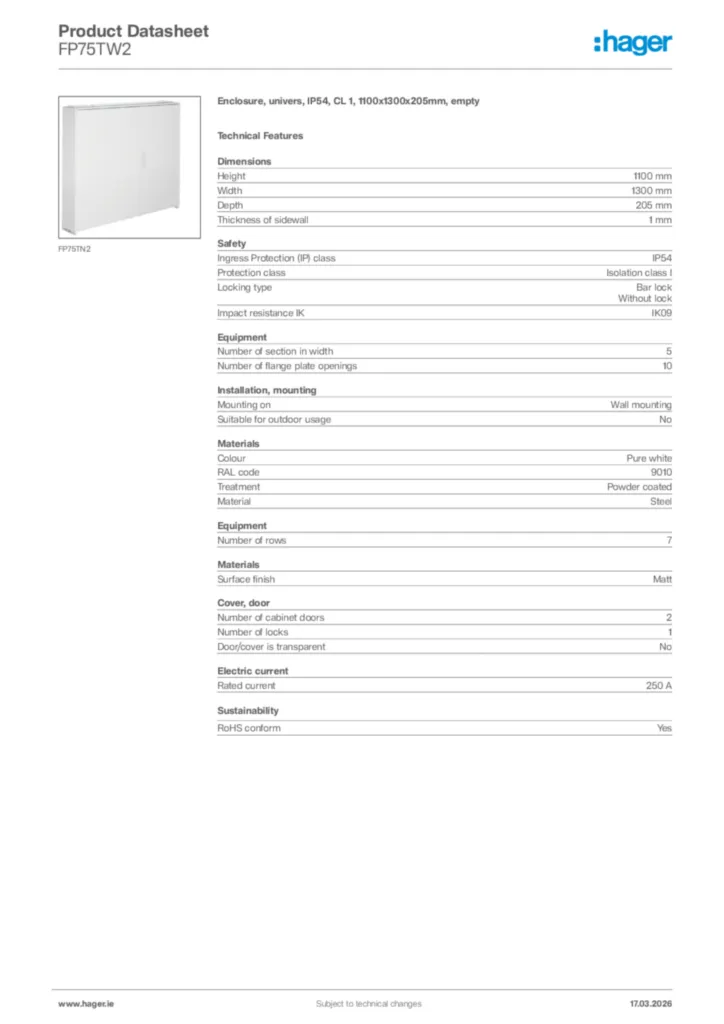

    • Product datasheet

      Image Hager Product data sheet FP75TW2  | Hager

      Hager Product data sheet FP75TW2

      Enclosure, univers, IP54, CL 1, 1100x1300x205mm, empty

      PDF
    • Declaration of conformity

      Image EU Declaration of Conformity  | Hager

      EU Declaration of Conformity

      Declaration of conformity en-GB 2025-03-14

      PDF
      684,89 kB
      Image EU Declaration of Conformity  | Hager

      EU Declaration of Conformity

      Declaration of conformity en-GB 2025-03-14

      PDF
      717,48 kB
