ACB HW2 66kA 2500A 3P Fixed TU sentinel Energy LSI, VCVC HE2E325FEIVAAAAAAA
EAN
3250610076019
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Rating plug 12 products available -
Motor operator 1 products available -
Shunt release 3 products available -
Closing coil 4 products available -
Under voltage coil 2 products available -
Auxiliaries contact block 3 products available
Complete your system
-
HWW465H
Rating Plug In= 630A
-
HWW466HRating Plug In= 800A
-
HWW467HRating Plug In= 1000A
-
HWW468HRating Plug In= 1250A
-
HWW469HRating Plug In= 1600A
-
HWW470HRating Plug In= 2000A
-
HWW471HRating Plug In= 2500A
-
HWW667HRating Plug In= 1000A Meter Plus
-
HWW668HRating Plug In= 1250A Meter Plus
-
HWW671HRating Plug In= 2500A Meter Plus
-
HWW689HRating plug In= 1600A Harmonic
-
HWW691HRating plug In= 2500A Harmonic
-
HWY218HMechanical interlock 1, 5m cable set
-
HWY226HPlate for mech. interlock HW2/4 HWS2/4 FIX Safety (Type 2S) - 1 Plate/ACB (MI)
-
HWY227HPlate for mech. interlock HW2/4 HWS2/4 DO Safety (Type 2S) - 1 Plate/ACB (MI)
-
HWY228HMechanical interlock 3m cable set
-
HWY265HOFF locking with padlock HW2/4 (OLP)
-
HWY271HChassis locking Ro. type HW2/4 HWS2/4 (CL)
-
HWY362HDummy for No OFF lock button HW2 HW4
Technical properties
Electric current
-
Rated current2500 A
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-266 kA
-
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-266 kA
-
Rated service breaking capacity Ics under 400 V AC according to IEC 60947-266 kA
Voltage
-
Rated insulation voltage Ui1000 V
-
Rated impulse withstand voltage Uimp12000 V
-
Type voltage supplyAC
Architecture
-
Number of poles3
-
Type of pole3P3D
-
Device construction typeFixed built-in
Tripping
-
Time of response when closing50 ms
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-

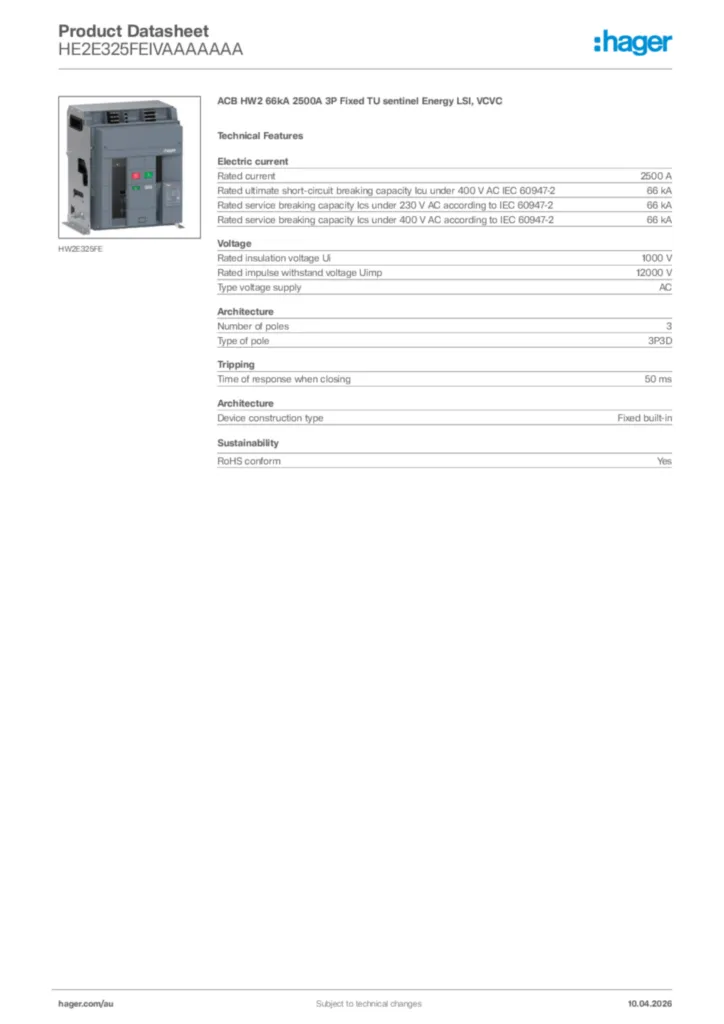

Product datasheet
