Spring charging motor 200-250V AC 50/60Hz HW2/4 (MO) HWX014H
EAN
3250613183776
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Suitable with 26 products available
Suitable with
-
HE2E316FEGVAAAAAAAACB HW2 66kA 1600A 3P Fixed TU sentinel Energy LSI, VCVC
-
HE2E320DCHVAAAAAAAACB HW2 66kA 2000A 3P Drawout TU sentinel LSI, VCVC
-
HE2E320FCHVAAAAAAAACB HW2 66kA 2000A 3P Fixed TU sentinel LSI, VCVC
-
HE2E325DCIVAAAAAAAACB HW2 66kA 2500A 3P Drawout TU sentinel LSI, VCVC
-
HE2E325FCIVAAAAAAAACB HW2 66kA 2500A 3P Fixed TU sentinel LSI, VCVC
-
HE2E325FEIVAAAAAAAACB HW2 66kA 2500A 3P Fixed TU sentinel Energy LSI, VCVC
-
HE2E416DCGVAAAAAAAACB HW2 66kA 1600A 4P Drawout TU sentinel LSI, VCVC
-
HE2E416FCGVAAAAAAAACB HW2 66kA 1600A 4P Fixed TU sentinel LSI, VCVC
-
HE2E420FCHVAAAAAAAACB HW2 66kA 2000A 4P Fixed TU sentinel LSI, VCVC
-
HE2M316DCGVAAAAAAAACB HW2 55kA 1600A 3P Drawout TU sentinel LSI, VCVC
-
HE2M316FEGVAAAAAAAACB HW2 55kA 1600A 3P Fixed TU sentinel Energy LSI, VCVC
-
HE2M325DCIVAAAAAAAACB HW2 55kA 2500A 3P Drawout TU sentinel LSI, VCVC
-
HE2W308FSAVAAAAAAASwitch HW2 800A 3P Fixed, VCVC
-
HE2W310FSAVAAAAAAASwitch HW2 1000A 3P Fixed, VCVC
-
HE2W316DSAVAAAAAAASwitch HW2 1600A 3P Drawout, VCVC
-
HE2W316FSAVAAAAAAASwitch HW2 1600A 3P Fixed, VCVC
-
HE2W320DSAVAAAAAAASwitch HW2 2000A 3P Drawout, VCVC
-
HE2W320FSAVAAAAAAASwitch HW2 2000A 3P Fixed, VCVC
-
HE2W410FSAVAAAAAAASwitch HW2 1000A 4P Fixed, VCVC
-
HE2W412FSAVAAAAAAASwitch HW2 1250A 4P Fixed, VCVC
Technical properties
Electric current
-
Rated current1 A
Voltage
-
Type voltage supplyAC
-
Rated insulation voltage Ui450 V
-
Rated impulse withstand voltage Uimp6000 V
-
Command voltage AC200 - 250 V
Use conditions
-
Operating temperature-25 - 70 °C
Frequency
-
Frequency50 - 60 Hz
Functions
-
With auto reset functionNo
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

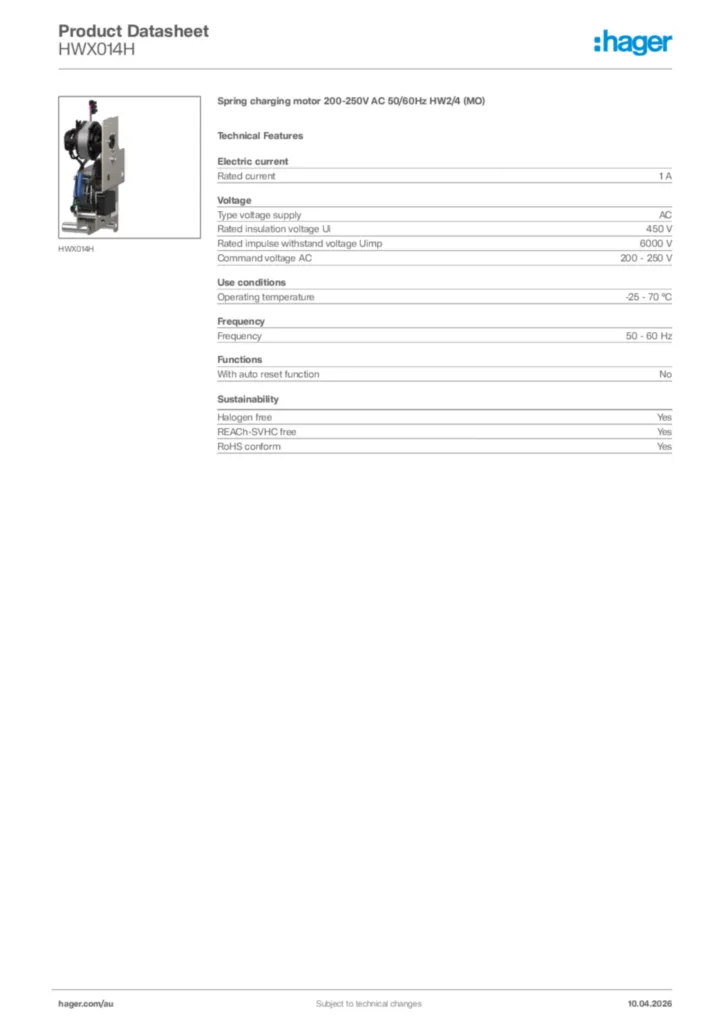

Hager Product data sheet HWX014H
Spring charging motor 200-250V AC 50/60Hz HW2/4 (MO)
PDF -
Instruction manual
Instruction manual International 2024-06-17
PDF7,48 MB -
Declaration of conformity
EU Declaration of Conformity
PDF413,00 kB
UKCA Declaration of Conformity
PDF417,83 kB
More documentation
