Hager The Hager Additional Auxiliary Switch low-level HW2/4 (AX) adds reliable low-level signaling to protection and control devices. Rated 2 A at 230 V AC-15, it suits control and indication circuits. Tool-free click mounting speeds installation and saves space. With zero power loss at rated current and a -40 to +70 °C storage/transport range, it’s robust for residential and commercial panels.
EAN
3250613166274
Packaging
1 Piece
Auxiliary Switch Low-level AX HW2/4 2A 230V AC-15 Click Mounting HWX043H
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Suitable with 26 products available
Suitable with
-
HE2E316FEGVAAAAAAAACB HW2 66kA 1600A 3P Fixed TU sentinel Energy LSI, VCVC
-
HE2E320DCHVAAAAAAAACB HW2 66kA 2000A 3P Drawout TU sentinel LSI, VCVC
-
HE2E320FCHVAAAAAAAACB HW2 66kA 2000A 3P Fixed TU sentinel LSI, VCVC
-
HE2E325DCIVAAAAAAAACB HW2 66kA 2500A 3P Drawout TU sentinel LSI, VCVC
-
HE2E325FCIVAAAAAAAACB HW2 66kA 2500A 3P Fixed TU sentinel LSI, VCVC
-
HE2E325FEIVAAAAAAAACB HW2 66kA 2500A 3P Fixed TU sentinel Energy LSI, VCVC
-
HE2E416DCGVAAAAAAAACB HW2 66kA 1600A 4P Drawout TU sentinel LSI, VCVC
-
HE2E416FCGVAAAAAAAACB HW2 66kA 1600A 4P Fixed TU sentinel LSI, VCVC
-
HE2E420FCHVAAAAAAAACB HW2 66kA 2000A 4P Fixed TU sentinel LSI, VCVC
-
HE2M316DCGVAAAAAAAACB HW2 55kA 1600A 3P Drawout TU sentinel LSI, VCVC
-
HE2M316FEGVAAAAAAAACB HW2 55kA 1600A 3P Fixed TU sentinel Energy LSI, VCVC
-
HE2M325DCIVAAAAAAAACB HW2 55kA 2500A 3P Drawout TU sentinel LSI, VCVC
-
HE2W308FSAVAAAAAAASwitch HW2 800A 3P Fixed, VCVC
-
HE2W310FSAVAAAAAAASwitch HW2 1000A 3P Fixed, VCVC
-
HE2W316DSAVAAAAAAASwitch HW2 1600A 3P Drawout, VCVC
-
HE2W316FSAVAAAAAAASwitch HW2 1600A 3P Fixed, VCVC
-
HE2W320DSAVAAAAAAASwitch HW2 2000A 3P Drawout, VCVC
-
HE2W320FSAVAAAAAAASwitch HW2 2000A 3P Fixed, VCVC
-
HE2W410FSAVAAAAAAASwitch HW2 1000A 4P Fixed, VCVC
-
HE2W412FSAVAAAAAAASwitch HW2 1250A 4P Fixed, VCVC
Technical properties
Electric current
-
Rated current 230 V AC152 A
Connectivity
-
Mounting typeClick mounting
Use conditions
-
Storage/transport temperature-40 - 70 °C
Power
-
Total power loss under IN0
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

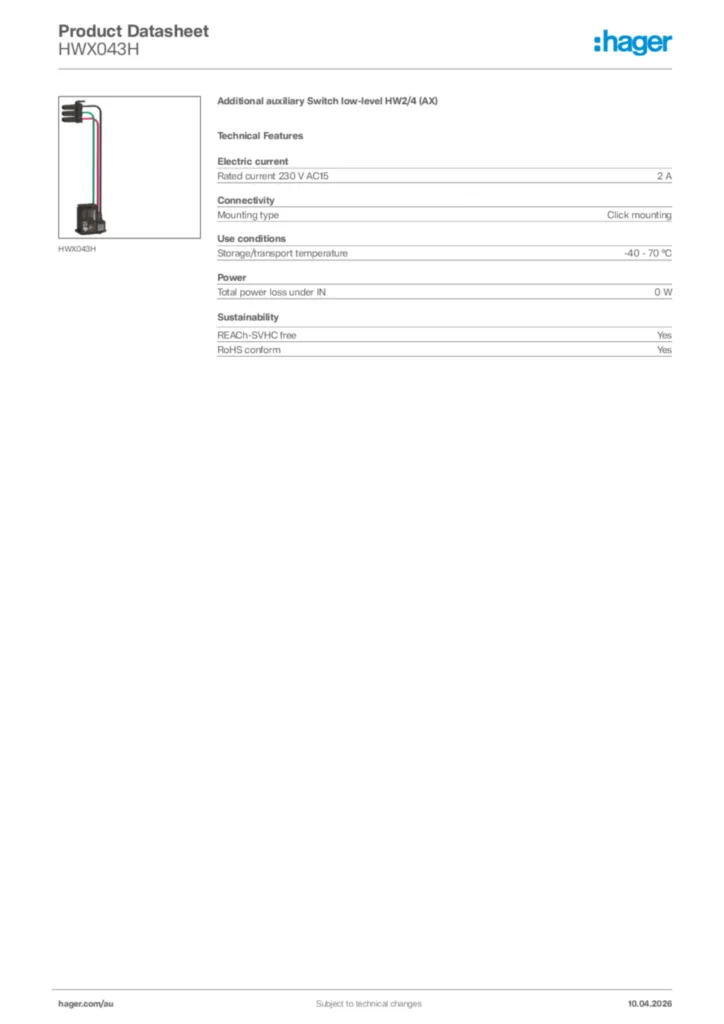

Hager Product data sheet HWX043H
