RCBO 4P 6kA C-16A 30mA A ADM416T
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Locking interlocking functions 1 products available -
Under voltage coil 1 products available -
Shunt release 2 products available -
Auxiliaries contact block 2 products available -
Modular phase busbar 9 products available
Complete your system
-
KB163P
Insulated busbar 1P 63A prong 10mm² brown 13M
-
KB163NInsulated busbar 1P 63A prong 10mm² blue 13M
-
KB181A1Insulated prong busbar 1P 80A 16mm² 6C for RCBO
-
KB181G1
Insulated prong busbar 1P 80A 16mm² 9C for RCBO
-
KDN180AInsulated busbar 1P 80A fork 16mm² 12M
-
KDN180GInsulated busbar 1P 80A fork 16mm² 18M
-
KDN380GInsulated busbar 3P 80A fork 16mm² 18M
-
KDN380AInsulated busbar 3P 80A fork 16mm² 12M
-
KDN280AInsulated busbar 2P 80A fork 16mm² 12M
Technical properties
Electric current
-
Rated current16 A
-
Rated residual operating current Idn30 mA
-
Rated current -25°C19,40 A
-
Rated current at -20°C19,10 A
-
Rated current -15°C18,90 A
-
Rated current -10°C18,60 A
-
Rated current -5°C18,30 A
-
Rated current at 0°C18 A
-
Rated current 5°C17,60 A
-
Rated current 10°C17,30 A
-
Rated current 15°C17 A
-
Rated current at 20°C16,70 A
-
Rated current 25°C16,30 A
-
Rated current 30°C16 A
-
Rated current 35°C15,60 A
-
Rated current at 40°C15,20 A
-
Rated current at 45°C14,90 A
-
Rated current at 50°C14,40 A
-
Rated current 55°C14 A
-
Rated current 60°C13,60 A
-
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 61009-16 kA
Architecture
-
Neutral positionRight
-
Type of pole4P
-
Number of protected poles4
Capacity
-
Number of modules4
Safety
-
Ingress Protection (IP) classIP2X
Voltage
-
Type voltage supplyAC
-
Rated operational voltage Ue230 - 415 V
-
Rated insulation voltage Ui500 V
-
Dielectric strength value of power frequency2 kV
-
Rated impulse withstand voltage Uimp4000 V
-
Overvoltage category according to IEC 60947-13
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-16 kA
Installation, mounting
-
Nominal tightening torque top terminal2 - 2 Nm
-
Nominal tightening torque down terminal2 - 2 Nm
-
Nominal tightening torque2 - 2 Nm
-
360° mounting position possibleYes
-
Type of top connection for modular devicesScrew terminal
-
Type of bottom connection for modular devicesbiconnect, Bypass
Frequency
-
Frequency50 - 50 Hz
Connection
-
Cross-section of input with screws, for flexible conductors1 - 16 mm²
-
Cross-section of input with screws, for massive conductors1 - 25 mm²
Use conditions
-
Class of energy limitation I²t3
-
Operating temperature-25 - 40 °C
Dimensions
-
Height84 mm
-
Width71 mm
-
Depth70 mm
Power
-
Total power loss under IN10,90 W
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

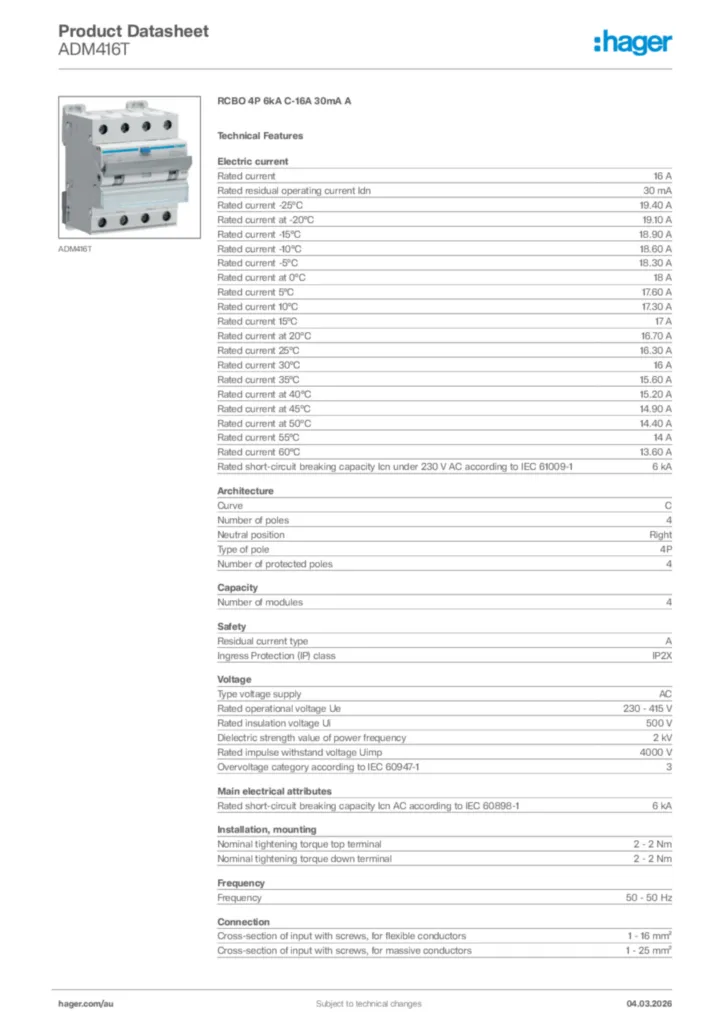

Hager Product data sheet ADM416T
