The Hager RCB0 1P+N 40A C-curve 6kA 30mA Type A RCBO safeguards circuits against overloads, short circuits and earth leakage. Ideal for 230-240V residential and light commercial loads, including appliances with pulsating DC. Compact 2‑module DIN‑rail design; IP2X. Screw terminals and biconnect bottom ease wiring. Delivers 6kA breaking, 500V insulation, and 4kV impulse withstand. Designed for reliable installation in residential and commercial switchboards. Suitable for DIN rail mounting. RCBO.

EAN

3250611032922

Packaging

1 Piece

Residual Current Circuit Breakers with Overcurrent Protection - (RCBOs)

Hager RCBO 4P 10A 6kA Curve C 30mA Type A AC 230-415V 4 modules ADM410T

Accessories
Technical properties
Environmental value
Documentations
More products

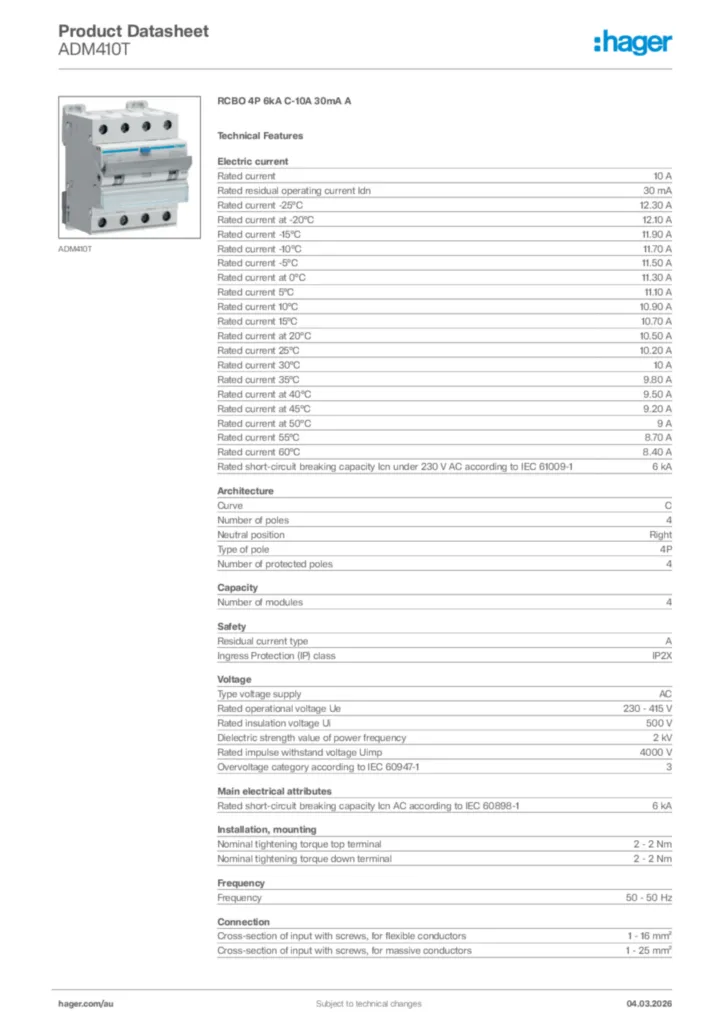

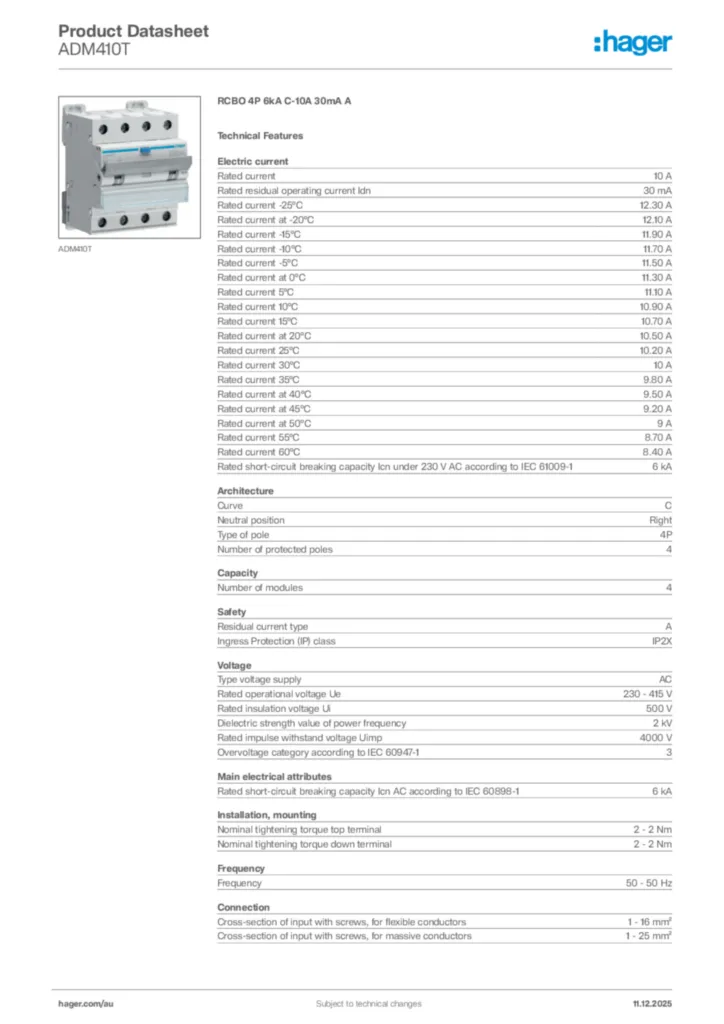

Download the data sheet

Complete your system

Locking interlocking functions 1 products available
Under voltage coil 1 products available
Shunt release 2 products available
Auxiliaries contact block 2 products available
Modular phase busbar 9 products available

Technical properties

Rated current

10 A
Rated residual operating current Idn

30 mA
Rated current -25°C

12,30 A
Rated current at -20°C

12,10 A
Rated current -15°C

11,90 A
Rated current -10°C

11,70 A
Rated current -5°C

11,50 A
Rated current at 0°C

11,30 A
Rated current 5°C

11,10 A
Rated current 10°C

10,90 A
Rated current 15°C

10,70 A
Rated current at 20°C

10,50 A
Rated current 25°C

10,20 A
Rated current 30°C

10 A
Rated current 35°C

9,80 A
Rated current at 40°C

9,50 A
Rated current at 45°C

9,20 A
Rated current at 50°C

9 A
Rated current 55°C

8,70 A
Rated current 60°C

8,40 A
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 61009-1

6 kA
