Hager The Hager RCBO 1P+N C-13A 10kA 10mA Type A combines overload/short-circuit and residual current protection for single-phase circuits. High-sensitivity 10mA enhances personal safety; 10kA breaking suits demanding networks. C-curve fits mixed loads; Type A handles pulsating DC. IP20, 230-240 V AC, 2 modules DIN rail, screw/biconnect terminals for quick, secure installation in residential and light commercial use.
EAN
3250611011842
Packaging
1 Piece
RCBO 1P+N 13A C Curve 10kA 10mA Type A 2 Modules ACA563T
No longer available
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Locking interlocking functions 1 products available -
Under voltage coil 1 products available -
Shunt release 2 products available -
Auxiliaries contact block 2 products available -
Cable terminal connection 3 products available -
Modular phase busbar 7 products available
Complete your system
-
KB181A1
Insulated prong busbar 1P 80A 16mm² 6C for RCBO
-
KB181G1
Insulated prong busbar 1P 80A 16mm² 9C for RCBO
-
KDN180AInsulated busbar 1P 80A fork 16mm² 12M
-
KDN180GInsulated busbar 1P 80A fork 16mm² 18M
-
KDN380GInsulated busbar 3P 80A fork 16mm² 18M
-
KDN380AInsulated busbar 3P 80A fork 16mm² 12M
-
KDN280AInsulated busbar 2P 80A fork 16mm² 12M
Technical properties
Architecture
-
Type of pole1P+N
-
CurveC
-
Number of poles2
Safety
-
Residual current typeA
-
Ingress Protection (IP) classIP20
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-110 kA
Connectivity
-
Type of connectionScrew terminal
Voltage
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
-
Max. operating voltage240 V
-
Rated operational voltage Ue230 - 240 V
-
Overvoltage category according to IEC 60947-13
-
Type voltage supplyAC
-
Dielectric strength value of power frequency2 kV
Electric current
-
Rated current13 A
-
Rated residual operating current Idn10 mA
-
Rated current -25°C15,2 A
-
Rated current at -20°C15,01 A
-
Rated current -15°C14,82 A
-
Rated current -10°C14,63 A
-
Rated current -5°C14,44 A
-
Rated current at 0°C14,24 A
-
Rated current 5°C14,04 A
-
Rated current 10°C13,84 A
-
Rated current 15°C13,63 A
-
Rated current at 20°C13,43 A
-
Rated current 25°C13,21 A
-
Rated current 30°C13 A
-
Rated current 35°C12,78 A
-
Rated current at 40°C12,56 A
-
Rated current at 45°C12,33 A
-
Rated current at 50°C12,1 A
-
Rated current 55°C11,87 A
-
Rated current 60°C11,63 A
-
Correction factor of rating current for 2 devices placed side by side1
-
Min./max. threshold value of the AC thermal operation1,13 - 1,45 A
-
Correction factor of rating current for 3 devices placed side by side0,95
-
Correction factor of rating current for 4 and 5 devices placed side by side0,90
-
Correction factor of rating current for 6 devices placed side by side0,85
-
Rated service breaking capacity Ics AC according to IEC 60898-17,50 kA
Power
-
Total power loss under IN4,24 W
Frequency
-
Frequency50 - 50 Hz
Installation, mounting
-
Nominal tightening torque down terminal2,10 - 2,10 Nm
-
Nominal tightening torque top terminal2,10 - 2,10 Nm
-
Nominal tightening torque2,10 - 2,10 Nm
-
Type of top connection for modular devicesScrew terminal
-
Type of bottom connection for modular devicesbiconnect, Bypass
Use conditions
-
Max. altitude2000 m
-
Class of energy limitation I²t3
-
Operating temperature-25 - 40 °C
-
Storage/transport temperature-25 - 70 °C
-
Degree of pollution according to IEC 60664 / IEC 60947-22
-
Air humidity protectionFor all climates
Endurance
-
Electric endurance in number of cycles2000
-
Number of mechanical operations2000
Connection
-
Cross-section flexible conductor1 - 16 mm²
-
Cross-section rigid conductor1 - 25 mm²
-
Cross-section of input with screws, for flexible conductors1 - 16 mm²
-
Cross-section of input with screws, for massive conductors1 - 25 mm²
-
Cross-section of input and output with screws, for flexible conductors1 - 16 mm²
-
Cross-section of input and output with screws, for massive conductors1 - 25 mm²
Capacity
-
Number of modules2
Dimensions
-
Height83 mm
-
Width35 mm
-
Depth68 mm
Compatibility
-
Suitable for DIN RailYes
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

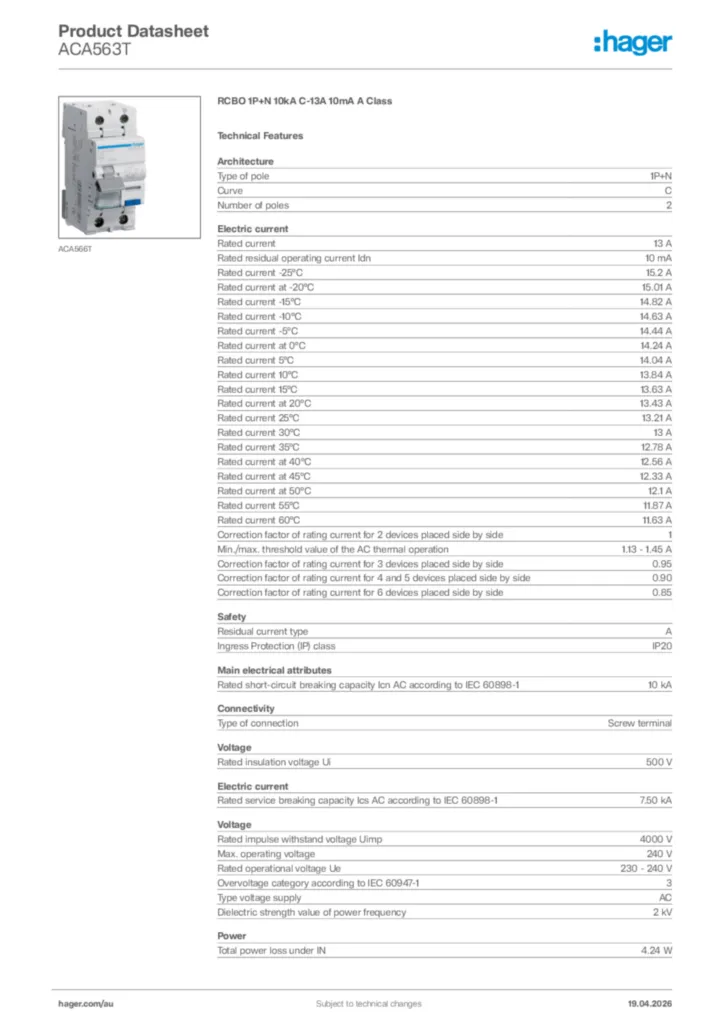

Hager Product data sheet ACA563T
