mounting lid for universal floor box size 3 punching R12 round 306 mm UDM3306R12
EAN-Nr.
4012002238387
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
VANR1201
supply-unit R12 for wet-cleaned floors for mounting of tube cable outlet alu
Compatible products
-
Referenced by 1 products available
Technical characteristics
Dimensions
-
Width360 mm
-
Length360 mm
-
Diameter306 mm
-
Material thickness4 mm
-
Nominal size340 mm
Installation, mounting
-
Mounting openingRound
Instructions
-
Floor maintenanceDry
Materials
-
MaterialSteel
-
TreatmentZinc coated
Cover, door
-
Cover mounting openingYes
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

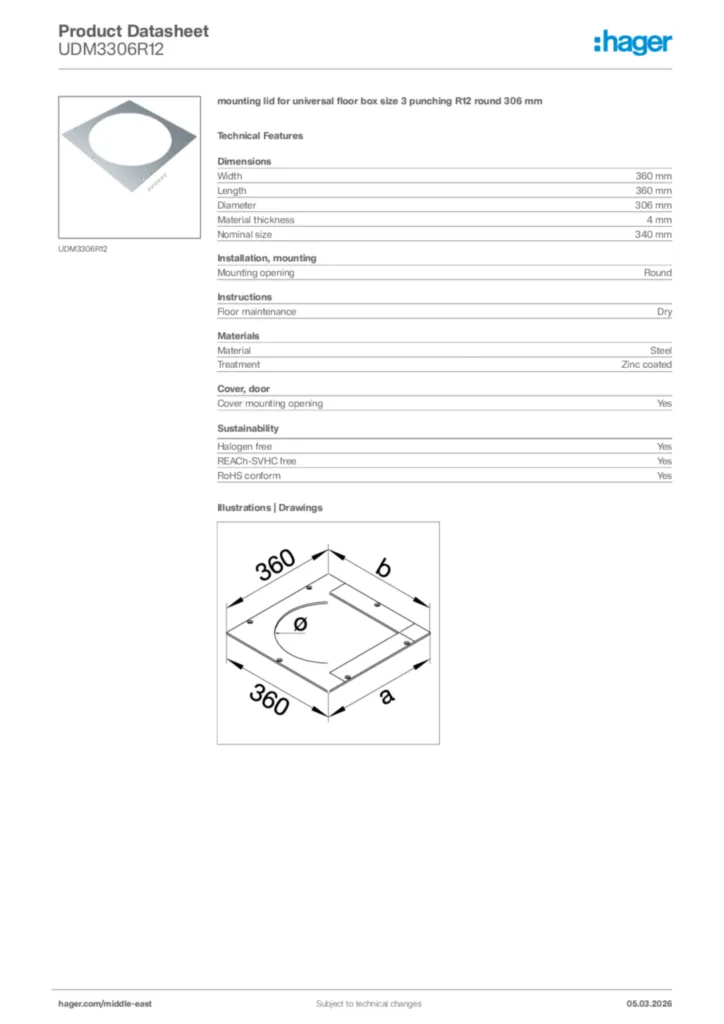

Product datasheet
Hager Product data sheet UDM3306R12
mounting lid for universal floor box size 3 punching R12 round 306 mm
PDF -
Instruction manual
Instruction manual International 2020-01-01
PDF676,78 kB
Instruction manual International 2020-01-01
PDF745,19 kB -
Technical appendix (single product)
Floor installation systems - Information for the floor layer
Floor installation systems - Information for the floor layer (EN, 07-2023)
PDF2,59 MB
Floor installation systems - Mechanical stress
Floor installation systems - Mechanical stress (EN, 02-2024)
PDF389,75 kB
Floor installation systems - Protection class
Floor installation systems - Protection class (EN, 02-2024)
PDF868,08 kB -
Handbook
Floor installation systems - Handbook: Basic knowledge
Floor installation systems - Handbook: Basic knowledge (EN, 04-2024)
PDF99,70 MB -
Declaration of conformity
EU-Declaration UK T033A DE_EN 26072019
Declaration of conformity en-AU, de-AT 2024-08-27
PDF49,71 kB
