universal floor box with floor plate size 3 levelling range 75-125 mm UDB3075125
EAN-Nr.
4012002238042
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
UDM3306R12
mounting lid for universal floor box size 3 punching R12 round 306 mm
Technical characteristics
Shape
-
ShapeSquare
Dimensions
-
Height75 mm
-
Width498 mm
-
Length498 mm
-
Minimal screed height75 mm
-
Levelling range75 - 125 mm
-
Nominal size340 mm
Use conditions
-
Vertical load applied across small surface area1.5 kN
Equipment
-
Suitable for Installation sealingNo
-
With bottom plateYes
-
Mounting cover insertionYes
Materials
-
Material sidewallPlastic
Cover, door
-
Type of lidBlind
Functions
-
Decoupling possible cover from baseYes
-
Suitable for sub-floor duct overhead closedNo
-
Suitable for sub-floor duct countersunkYes
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

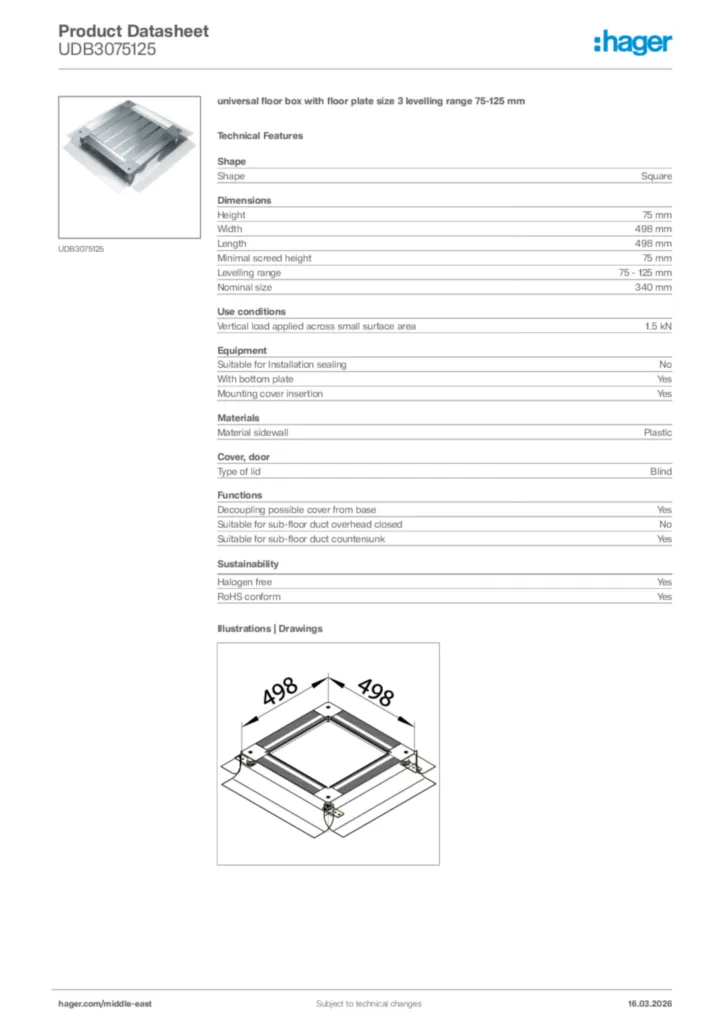

Hager Product data sheet UDB3075125
universal floor box with floor plate size 3 levelling range 75-125 mm
PDF -
Instruction manual
Instruction manual International 2017-12-15
PDF4,28 MB
Instruction manual International 2018-02-06
PDF4,73 MB
Instruction manual en-GB, fr-FR, de-DE, pl-PL 2017-09-29
PDF2,29 MB -
Technical appendix (single product)
Floor installation systems - Impact noise properties
Floor installation systems - Impact noise properties (EN, 07-2023)
PDF578,05 kB
Floor installation systems - Information for the floor layer
Floor installation systems - Information for the floor layer (EN, 07-2023)
PDF2,59 MB
Floor installation systems - Mechanical stress
Floor installation systems - Mechanical stress (EN, 02-2024)
PDF389,75 kB
Floor installation systems - Protection class
Floor installation systems - Protection class (EN, 02-2024)
PDF868,08 kB -
STEP files
STEP model UDB3075125
STEP files International 2022-10-18
STP1,39 MB -
Product Drawing
Technical Drawing UDB3075125
Product Drawing International 2022-10-18
PDF58,48 kB -
Handbook
Floor installation systems - Handbook: Basic knowledge
Floor installation systems - Handbook: Basic knowledge (EN, 04-2024)
PDF99,70 MB -
Declaration of conformity
EU-Declaration UK T033A DE_EN 26072019
Declaration of conformity en-AU, de-AT 2024-08-27
PDF49,71 kB
