250A TP&N BOARD 12 WAY Surface enclosure JK2B12S1
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
TPN/SPN boards 2 products available -
Accessories/spare parts for low-voltage switch technology 1 products available -

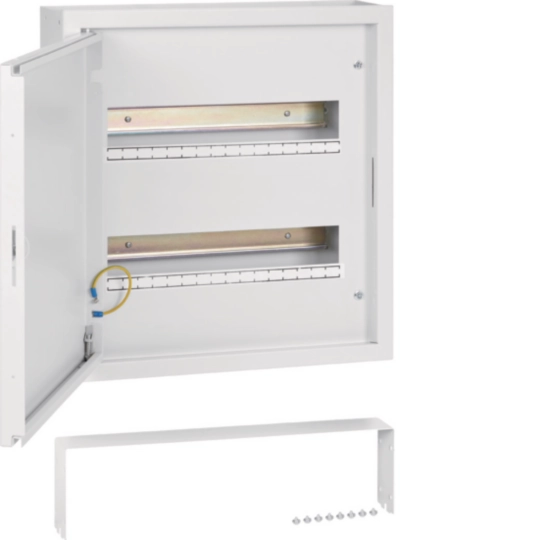

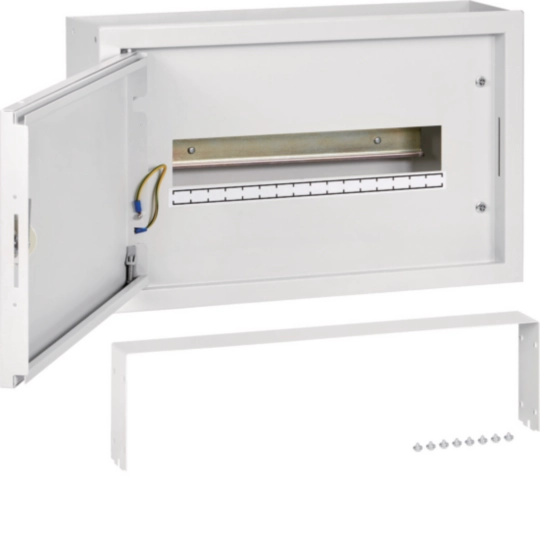

Empty cabinet 2 products available -

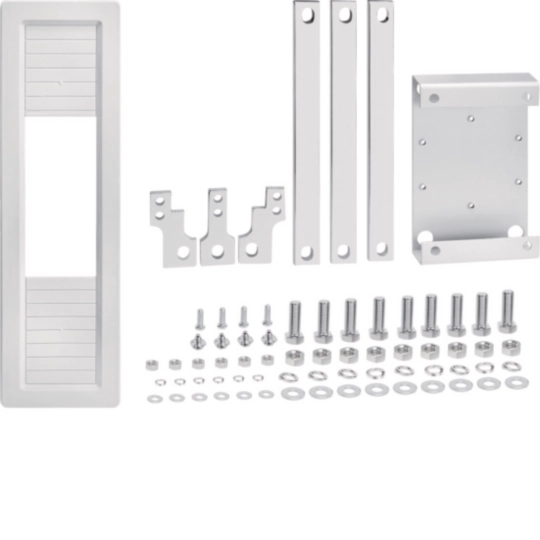

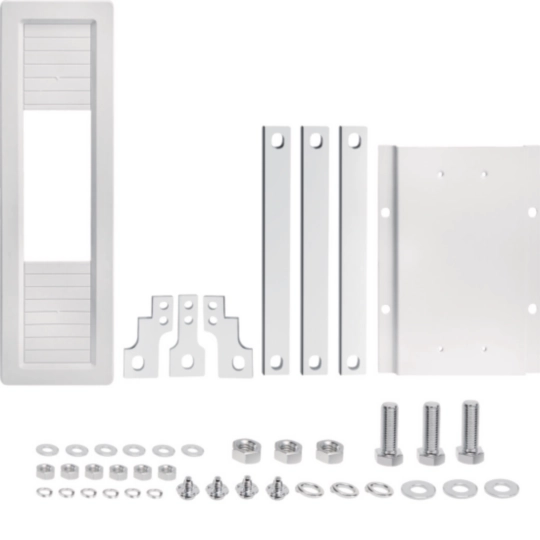

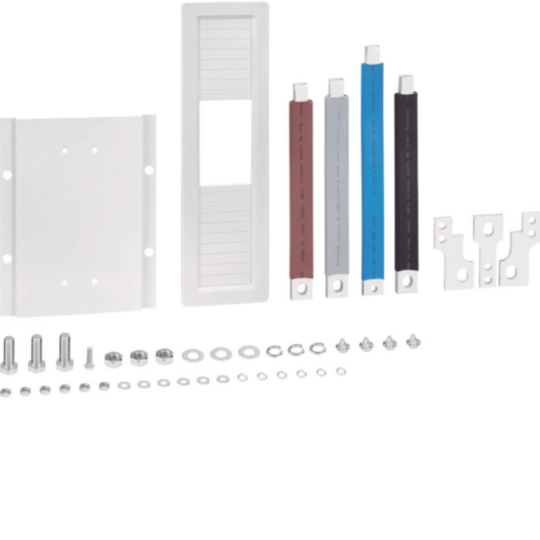

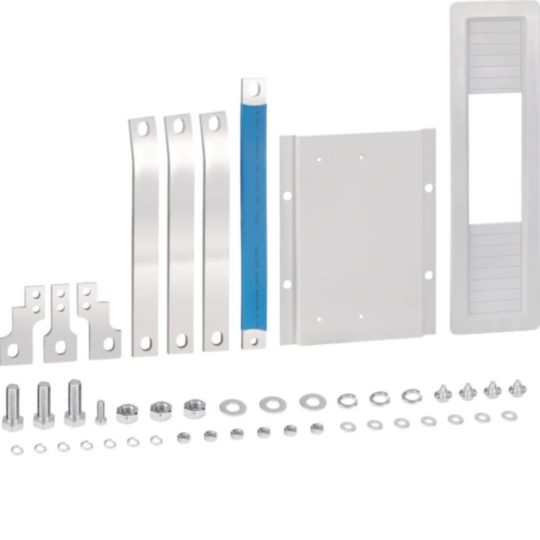

Accessories/spare parts for low-voltage switch technology 5 products available
Technical characteristics
Connection
-
Number of accessible phases3
Installation, mounting
-
Mounting onSurface mounting
Electric current
-
Breaking and opening capacity Idm0
Equipment
-
Has mounting plateNo
-
Equipped with switchNo switch
-
Number of switches0
-
Type of busbar chassisFixed load chassis
Capacity
-
Number of modules12
Dimensions
-
Height865 mm
-
Width445 mm
-
Depth115 mm
Cover, door
-
Number of cabinet doors1
-
Door/cover is transparentNo
Materials
-
MaterialSteel
-
RAL code9002
-
ColourGrey white
Safety
-
Protection classIsolation class I
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP41
-
Locking typeSpecial tool, Without lock
Architecture
-
Number of poles36
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

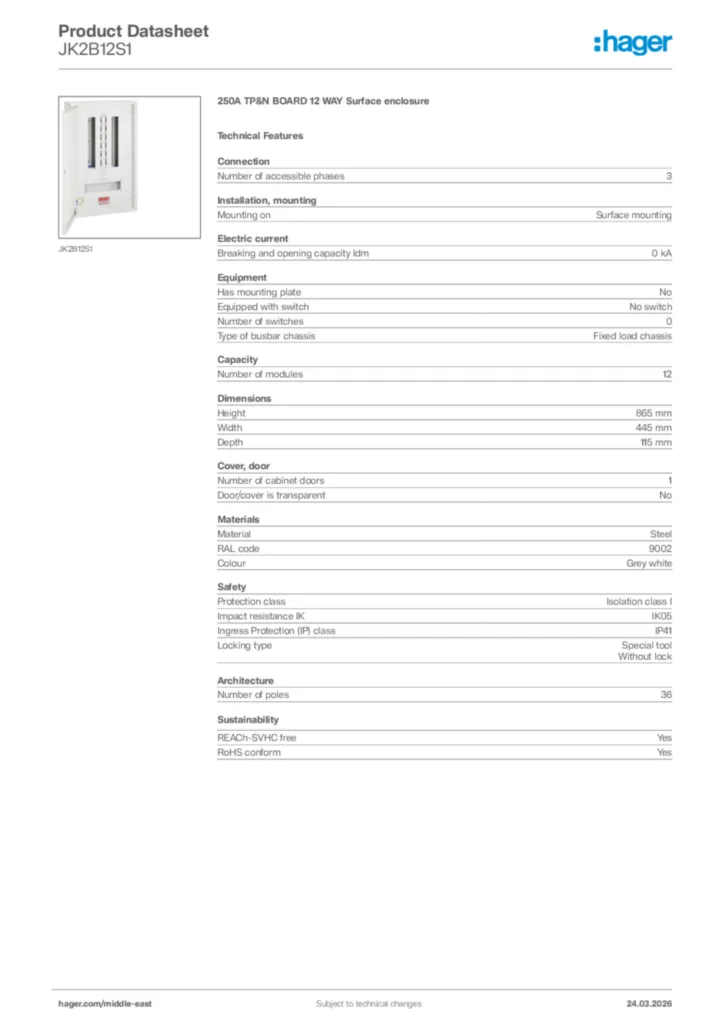

Hager Product data sheet JK2B12S1
250A TP&N BOARD 12 WAY Surface enclosure
PDF -
Declaration of conformity
Declaration of conformity en-GB 2024-08-28
PDF262,65 kB
