    • JK2E01S
    EAN-Nr.
    3250611091813
    Packaging
    1 piece
    • Invicta TPN boards

    JK2 CABLE SPREADER BOX JK2E01S

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    JK2 CABLE SPREADER BOX

    JK2E01S

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Complete your system

    Compatible products

    • Referenced by 1 products available

    Referenced by

    • JK2B12S1

      250A TP&N BOARD 12 WAY Surface enclosure
      0.00 €  / *

    Technical characteristics

    Dimensions
    • Height
      275 mm
    • Width
      445 mm
    • Depth
      115 mm
    • Thickness of sidewall
      1.20 mm
    Safety
    • Ingress Protection (IP) class
      IP41
    • Protection class
      Isolation class I
    • Locking type
      Screwed
    • Impact resistance IK
      IK05
    Equipment
    • Number of flange plate openings
      2
    Installation, mounting
    • Mounting on
      Surface mounting
    • Suitable for outdoor usage
      No
    Materials
    • Colour
      Grey white
    • RAL code
      9002
    • Treatment
      Varnished
    • Material
      Steel
    Cover, door
    • Door/cover is transparent
      No

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    Hager REACH declaration JK2E01S
    PDF
    Hager RoHS report JK2E01S
    PDF

    Downloads

    • Image JK2E01S | Hager

      Product Image JK2E01S

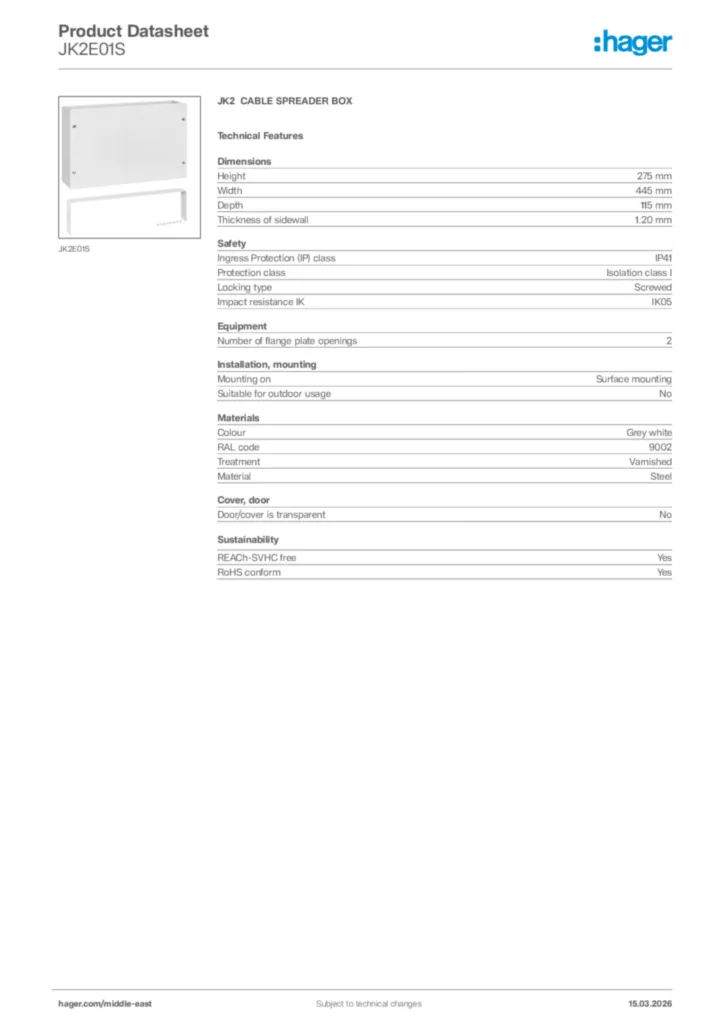

    • Product datasheet

      Image Hager Product data sheet JK2E01S | Hager

      Hager Product data sheet JK2E01S

      JK2 CABLE SPREADER BOX

      PDF

    • Declaration of conformity

      Image Declaration of conformity en-GB 2024-08-28 | Hager

      Declaration of conformity en-GB 2024-08-28

      PDF
      262,65 kB
