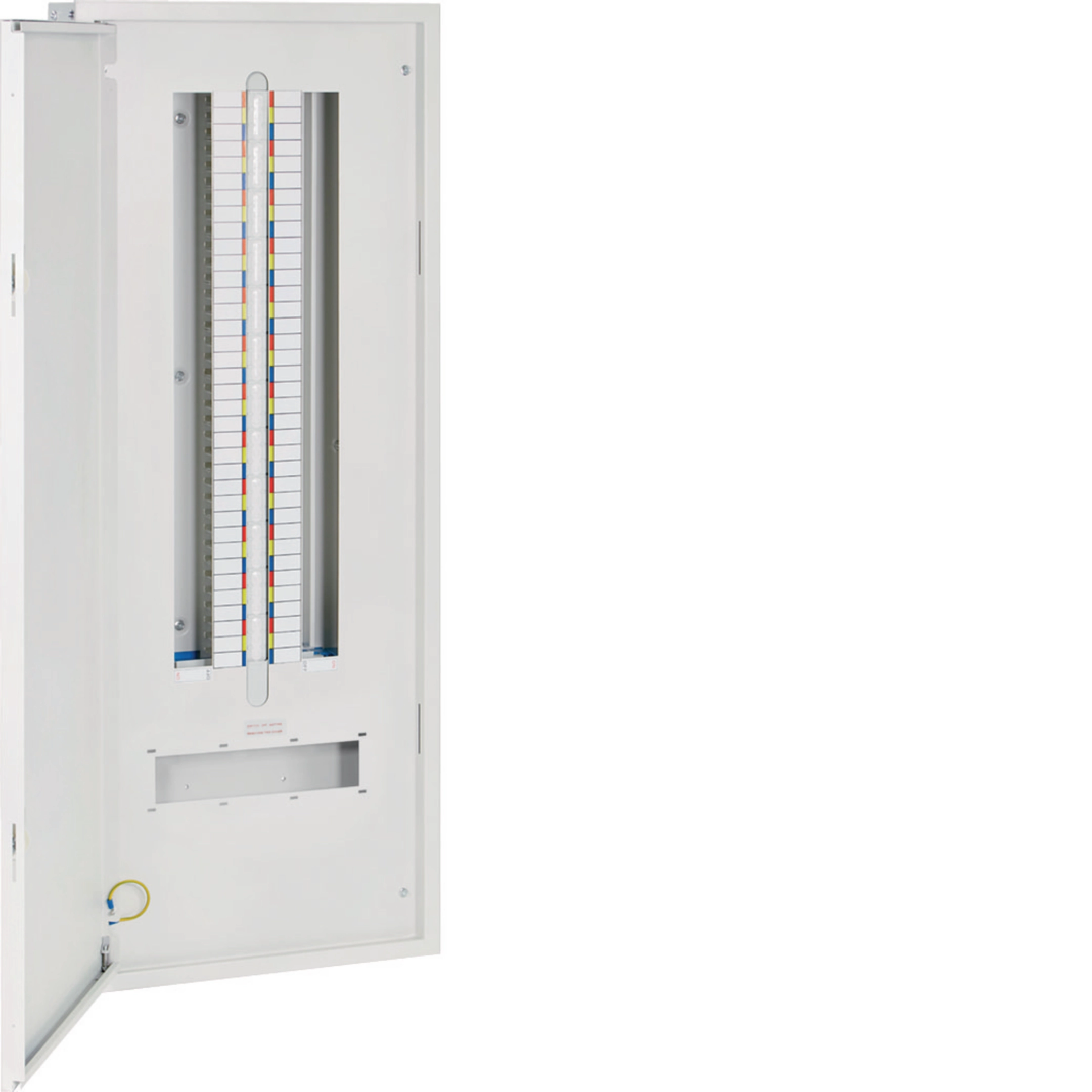

250A TP&N BOARD 24 WAY Surface enclosure JK2B24S2
EAN-Nr.
3250611113287
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
TPN/SPN boards 2 products available -
Empty cabinet 1 products available
Technical characteristics
Installation, mounting
-
Mounting onSurface mounting
Electric current
-
Breaking and opening capacity Idm0
Equipment
-
Has mounting plateNo
-
Equipped with switchNo switch
-
Number of switches0
-
Type of busbar chassisFixed load chassis
Capacity
-
Number of modules24
Dimensions
-
Height1,195 mm
-
Width445 mm
-
Depth125 mm
Cover, door
-
Number of cabinet doors1
-
Door/cover is transparentNo
Materials
-
MaterialSteel
-
RAL code9002
-
ColourGrey white
Safety
-
Protection classIsolation class I
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP41
-
Locking typeSpecial tool, Without lock
Architecture
-
Number of poles72
