EAN-Nr.

3250611033141

Packaging

1 piece

Residual current circuit breakers with overcurrent protection (RCBO)

RCBO 4P 10kA C-40A 30mA A ADX440T

Accessories
Technical characteristics
Environmental value
Documentations
More products

Download the sheet

Complete your system

Locking interlocking functions 1 products available
Under voltage coil 1 products available
Shunt release 2 products available
Undervoltage and overvoltage release 1 products available
Auxiliaries contact block 2 products available
Modular phase busbar 1 products available

Technical characteristics

Rated current

40 A
Rated residual operating current Idn

30 mA
Rated current -25°C

49.80 A
Rated current at -20°C

49 A
Rated current -15°C

48.20 A
Rated current -10°C

47.30 A
Rated current -5°C

46.50 A
Rated current at 0°C

45.60 A
Rated current 5°C

44.70 A
Rated current 10°C

43.80 A
Rated current 15°C

42.90 A
Rated current at 20°C

42 A
Rated current 25°C

41 A
Rated current 30°C

40 A
Rated current 35°C

38.90 A
Rated current at 40°C

37.70 A
Rated current at 45°C

36.50 A
Rated current at 50°C

35.20 A
Rated current 55°C

33.90 A
Rated current 60°C

32.60 A
Rated service breaking capacity Ics AC according to IEC 60898-1

7.50 kA

Neutral position

Right
Type of pole

4P
Number of protected poles

4

Number of modules

4

Ingress Protection (IP) class

IP20

Type voltage supply

AC
Rated operational voltage Ue

230 - 415 V
Rated insulation voltage Ui

500 V
Dielectric strength value of power frequency

2 kV
Rated impulse withstand voltage Uimp

4,000 V

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

10 kA

Nominal tightening torque down terminal

2 - 2 Nm
Nominal tightening torque top terminal

2 - 2 Nm
Nominal tightening torque

2 - 2 Nm
360° mounting position possible

Yes
Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

biconnect, Bypass

Frequency

50 - 50 Hz

Cross-section of input with screws, for flexible conductors

1 - 16 mm²
Cross-section of input with screws, for massive conductors

1 - 25 mm²

Class of energy limitation I²t

3
Degree of pollution according to IEC 60664 / IEC 60947-2

2
Operating temperature

-25 - 40 °C

Height

84 mm
Width

71 mm
Depth

70 mm

Total power loss under IN

17.70 W

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Certifications and documents

RCBO 1P+N 6kA B-16A 30mA A

PDF

16,18 MB

Hager REACH declaration ADX440T

PDF

Hager RoHS report ADX440T

PDF

Downloads

Product Image ADX440T

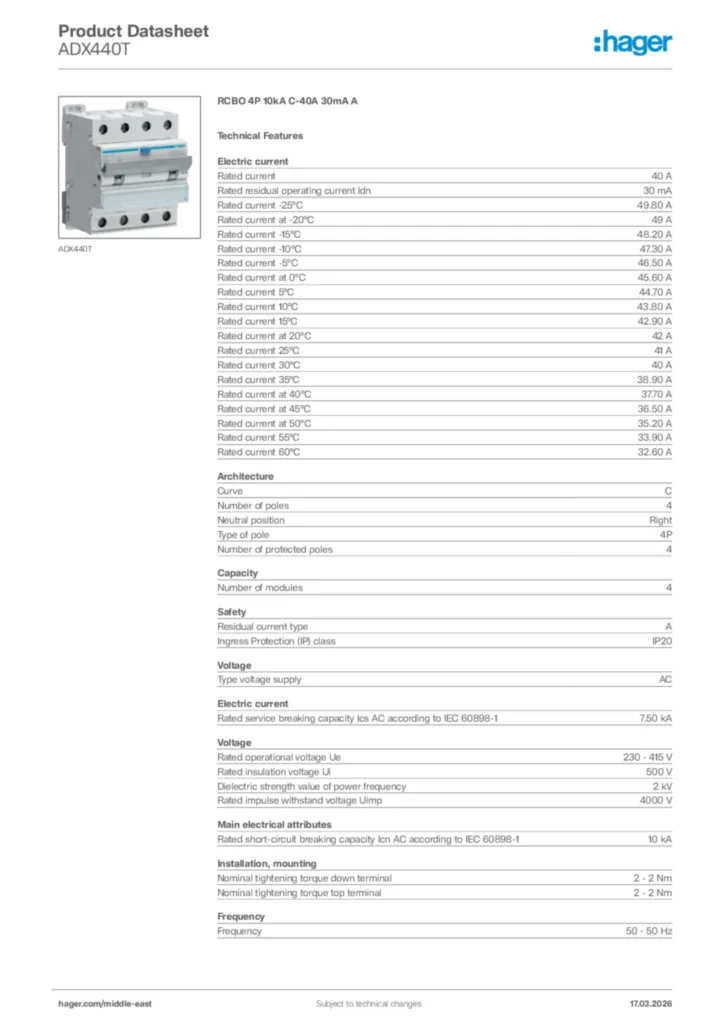

Product datasheet
