RCBO 4P 10kA C-20A 100mA A AEX420T

EAN-Nr.
3250611033196
Packaging
1 piece

Complete your system

Optional accessories

  • Locking interlocking functions 1 products available
  • Under voltage coil 1 products available
  • Shunt release 2 products available
  • Undervoltage and overvoltage release 1 products available
  • Auxiliaries contact block 2 products available
  • Modular phase busbar 1 products available

Technical characteristics

Electric current
  • Rated current
    20 A
  • Rated residual operating current Idn
    100 mA
  • Rated current -25°C
    23.80 A
  • Rated current at -20°C
    23.50 A
  • Rated current -15°C
    23.20 A
  • Rated current -10°C
    22.90 A
  • Rated current -5°C
    22.50 A
  • Rated current at 0°C
    22.20 A
  • Rated current 5°C
    21.80 A
  • Rated current 10°C
    21.50 A
  • Rated current 15°C
    21.10 A
  • Rated current at 20°C
    20.80 A
  • Rated current 25°C
    20.40 A
  • Rated current 30°C
    20 A
  • Rated current 35°C
    19.60 A
  • Rated current at 40°C
    19.10 A
  • Rated current at 45°C
    18.60 A
  • Rated current at 50°C
    18.20 A
  • Rated current 55°C
    17.70 A
  • Rated current 60°C
    17.20 A
  • Rated service breaking capacity Ics AC according to IEC 60898-1
    7.50 kA
Architecture
  • Curve
    C
  • Neutral position
    Right
  • Type of pole
    4P
  • Number of protected poles
    4
Capacity
  • Number of modules
    4
Safety
  • Residual current type
    A
  • Ingress Protection (IP) class
    IP20
Voltage
  • Type voltage supply
    AC
  • Rated operational voltage Ue
    230 - 415 V
  • Rated insulation voltage Ui
    500 V
  • Dielectric strength value of power frequency
    2 kV
  • Rated impulse withstand voltage Uimp
    4,000 V
Main electrical attributes
  • Rated short-circuit breaking capacity Icn AC according to IEC 60898-1
    10 kA
Installation, mounting
  • Nominal tightening torque down terminal
    2 - 2 Nm
  • Nominal tightening torque top terminal
    2 - 2 Nm
  • Nominal tightening torque
    2 - 2 Nm
  • 360° mounting position possible
    Yes
  • Type of top connection for modular devices
    Screw terminal
  • Type of bottom connection for modular devices
    biconnect, Bypass
Frequency
  • Frequency
    50 - 50 Hz
Connection
  • Cross-section of input with screws, for flexible conductors
    1 - 16 mm²
  • Cross-section of input with screws, for massive conductors
    1 - 25 mm²
Use conditions
  • Class of energy limitation I²t
    3
  • Degree of pollution according to IEC 60664 / IEC 60947-2
    2
  • Operating temperature
    -25 - 40 °C
Dimensions
  • Height
    84 mm
  • Width
    71 mm
  • Depth
    70 mm
Power
  • Total power loss under IN
    11.70 W

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Certifications and documents

RCBO 1P+N 6kA B-16A 30mA A
PDF
16,18 MB

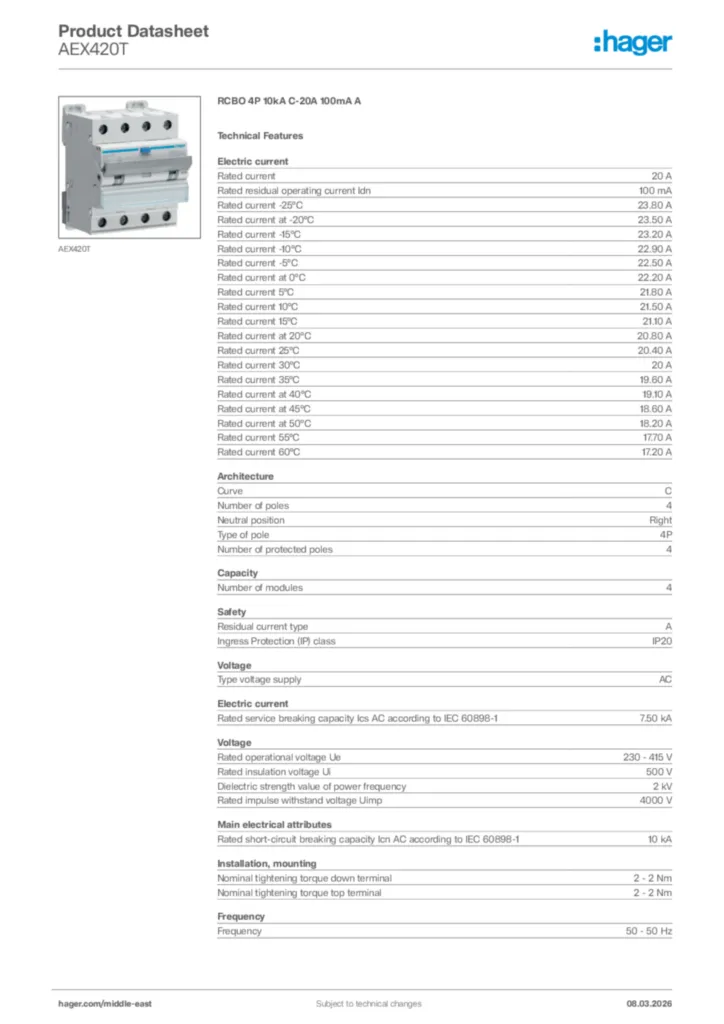

Hager REACH declaration AEX420T
