    EAN-Nr.
    3250614562037
    Packaging
    1 piece

    Shunt trip 230-415V AC 110-130V DC MZ203

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Shunt trip 230-415V AC 110-130V DC

    MZ203

    • Technical characteristics
    • Environmental value
    • Documentations
    Download the sheet

    Technical characteristics

    Power
    • Inrush power absorbed
      15 VA
    Use conditions
    • Operating temperature
      -25 - 60 °C
    Voltage
    • Command voltage AC
      230 - 415 V
    • Command voltage DC
      110 - 130 V
    • Type voltage supply
      AC/DC
    • Rated insulation voltage Ui
      4,000 V
    • Rated operational voltage Ue
      230 - 415 V
    • Rated operational voltage in DC
      110 - 130 V
    Dimensions
    • Height
      83 mm
    • Width
      18 mm
    • Depth
      68 mm
    Capacity
    • Number of modules
      1

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    REACH declaration MZ203
    PDF
    RoHS report MZ203
    PDF

    Downloads

    • Image MZ203 | Hager

      Product Image MZ203

    • Product datasheet

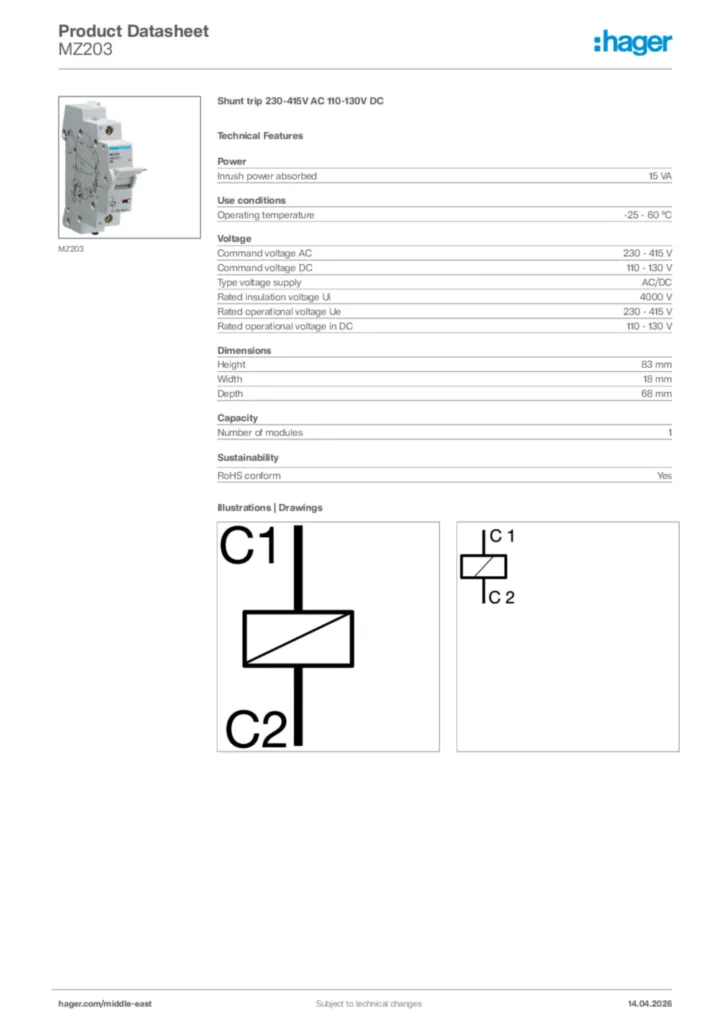

      Image Hager Product data sheet MZ203 | Hager

      Hager Product data sheet MZ203

      Shunt trip 230-415V AC 110-130V DC

      PDF

    • Product data sheet

      Image UK_PD_TDS_CIRCUITBREAKERAUXILLIARIES.pdf | Hager

      UK_PD_TDS_CIRCUITBREAKERAUXILLIARIES.pdf

      Technical data sheet including characteristics for circuit breaker auxiliaries.

      PDF
      97,81 kB

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-04-26

      PDF
      182,48 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-04-26

      PDF
      223,50 kB
