Shunt trip 24-48V AC 12-48V DC MZ204
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 246 products available
Referenced by
-
NCN200AMCB 2P 10kA C-0.5A 2M
-
AEX420TRCBO 4P 10kA C-20A 100mA A
-
AEX416TRCBO 4P 10kA C-16A 100mA A
-
ADX440TRCBO 4P 10kA C-40A 30mA A
-
ADX432TRCBO 4P 10kA C-32A 30mA A
-
ADX425TRCBO 4P 10kA C-25A 30mA A
-
ADX420TRCBO 4P 10kA C-20A 30mA A
-
ADX413TRCBO 4P 10kA C-13A 30mA A
-
ADX410TRCBO 4P 10kA C-10A 30mA A
-
AEX440TRCBO 4P 10kA C-40A 100mA A
-
NF263AMCB 2P 6/10kA C-63A 2M
-
AEX432TRCBO 4P 10kA C-32A 100mA A
-
NC240AMCB 2P 10kA C-40A 2M
-
MBN320MCB 3P 6kA B-20A 3M
-
MCN113MCB 1P 6kA C-13A 1M
-
MCN304MCB 3P 6kA C-4A 3M
-
MCN104MCB 1P 6kA C-4A 1M
-
ADA966GRCBO 1P+N 6kA C-16A 30mA A Class
-
AEX425TRCBO 4P 10kA C-25A 100mA A
-
MCN116AMCB 1P 6kA C-16A 1M
Technical characteristics
Power
-
Inrush power absorbed27 VA
Use conditions
-
Operating temperature-25 - 60 °C
Voltage
-
Command voltage AC24 - 48 V
-
Command voltage DC12 - 48 V
-
Type voltage supplyAC/DC
-
Rated insulation voltage Ui4,000 V
-
Rated operational voltage Ue24 - 48 V
-
Rated operational voltage in DC12 - 48 V
Dimensions
-
Height83 mm
-
Width18 mm
-
Depth68 mm
Capacity
-
Number of modules1
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

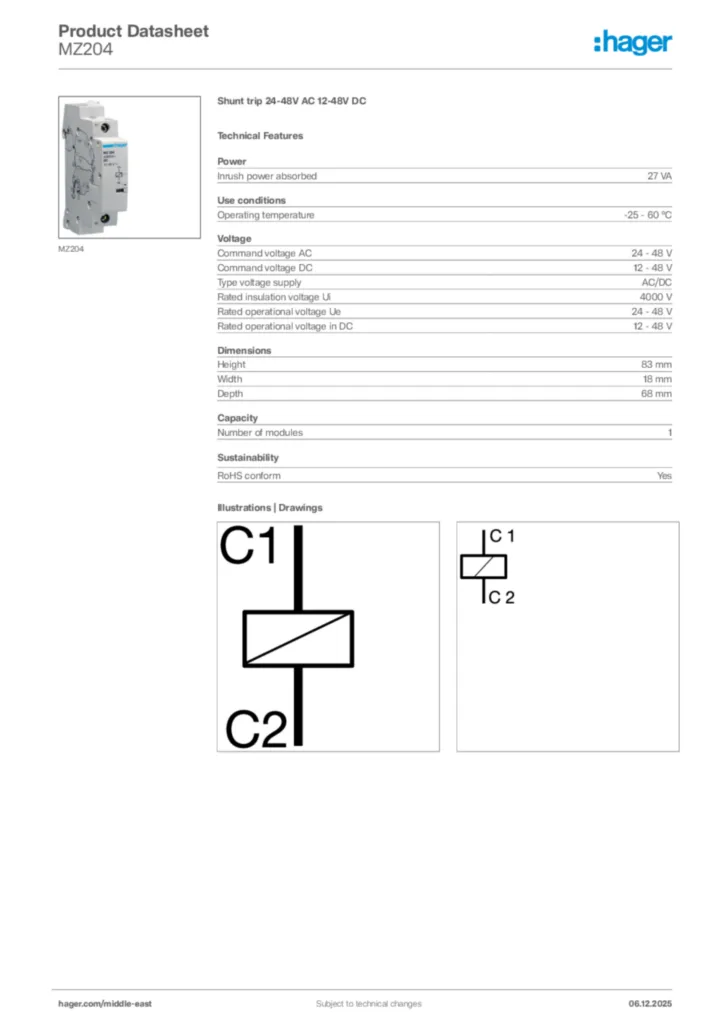

Hager Product data sheet MZ204
Shunt trip 24-48V AC 12-48V DC
PDF -
Product data sheet
UK_PD_TDS_CIRCUITBREAKERAUXILLIARIES.pdf
Technical data sheet including characteristics for circuit breaker auxiliaries.
PDF97,81 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-04-26
PDF182,48 kB
Declaration
Declaration of conformity International 2022-04-26
PDF223,50 kB
