Control push-button, NO contact, red lens, Integro - Design Flow/Pure, anth m 937722505
EAN-Nr.
4011334240280
Packaging
10 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
See all (12)
Optional accessories
-
Accessories/spare parts for domestic switching devices 1 products available
Compatible products
-
Referenced by 45 products available
Mandatory accessories
-
9191501Contact protection box 2gang, Integro module inserts, grey
-
9191502Contact protection box 2gang, Integro module inserts, grey
-
91820Contact protection box Ø 45 mm, Integro module inserts, grey
-
91933Contact protection box 3gang, Integro module inserts, grey
-
918272599Integro Flow-Frame with Imprint 'IP44' Polar White Glossy
-
918272597Integro Flow-Frame with Imprint 'IP44' Grey Glossy
-
918272595Integro Flow-Frame with Imprint 'IP44' Anthracite Matt
-
918272591Integro Flow-Frame with Imprint 'IP44' Brown Matt
-
918272568Integro Flow Frame with Imprint 'IP44' Chrome Matt Lacquered
-
91887Contact protection box Ø 49 mm, Integro module inserts, grey
-
91883Contact protection box Ø 49 mm, deep, Integro module inserts, grey
-
9182001Contact protection box Ø 45 mm, flat, Integro module inserts, grey
Referenced by
-
919882502Integro Flow-Frame, 1-Gang, Hinged Cover and Labelling Field Polar White Glossy
-
918272599
Integro Flow-Frame with Imprint 'IP44' Polar White Glossy
-
918272595
Integro Flow-Frame with Imprint 'IP44' Anthracite Matt
-
918032509Integro Flow Frame, 1-Gang with Labelling Field, Polar White Glossy
-
918032507Integro Flow Frame, 1-Gang with Labelling Field, Grey Glossy
-
918032505Integro Flow Frame, 1-Gang with Labelling Field, Anthracite Matt
-
918032568Integro Flow Frame, 1-Gang with Labelling Field Chrome Matt Lacquered
-
91853
SEALING Integro IP44, black
-
918272568
Integro Flow Frame with Imprint 'IP44' Chrome Matt Lacquered
-
919882506Integro Flow-Frame, 1-Gang, Hinged Cover and Labelling Field Grey Glossy
-
919882505Integro Flow-Frame, 1-Gang, Hinged Cover and Labelling Field Anthracite Matt
-
918282568Integro Flow-Frame 1-Gang with Hinged Cover, Imprint IP44, Chrome Matt Lacquered
-
918282591Integro Flow-Frame 1-Gang with Hinged Cover, Imprint IP44, Brown Matt
-
918282595Integro Flow-Frame 1-Gang with Hinged Cover, Imprint IP44, Anthracite Matt
-
918282597Integro Flow-Frame 1-Gang with Hinged Cover, Imprint IP44, Grey Glossy
-
918282599Integro Flow-Frame 1-Gang with Hinged Cover, Imprint IP44, Polar White Glossy
-
918192524Integro Flow Frame, 3-Gang Stainless Steel Lacquered
-
918192568Integro Flow Frame, 3-Gang Chrome Matt Lacquered
-
918192511Integro Flow Frame, 3-Gang Brown Matt
-
918192510Integro Flow Frame, 3-Gang Black Glossy
Technical characteristics
Electric current
-
Switching current10 A
-
Momentary contact current10 A
Voltage
-
Rated voltage250 V
Architecture
-
Control/operation elementSingle rocker
-
Number of poles1
Materials
-
ColourAnthracite
-
Surface finishMatt
-
MaterialThermoplastic
-
TreatmentUntreated
-
TransparentNo
Dimensions
-
Height55.50 mm
-
Width55.50 mm
-
Depth24.10 mm
-
Built-in depth flush-mounted boxes13 mm
Controls and indicators
-
Number of buttons1
-
Type of push buttonSingle push button
-
With feedback signal contactNo
Safety
-
Ingress Protection (IP) classIP44
Accessories
-
Has labelling fieldNo
-
Related Systemsintegro
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

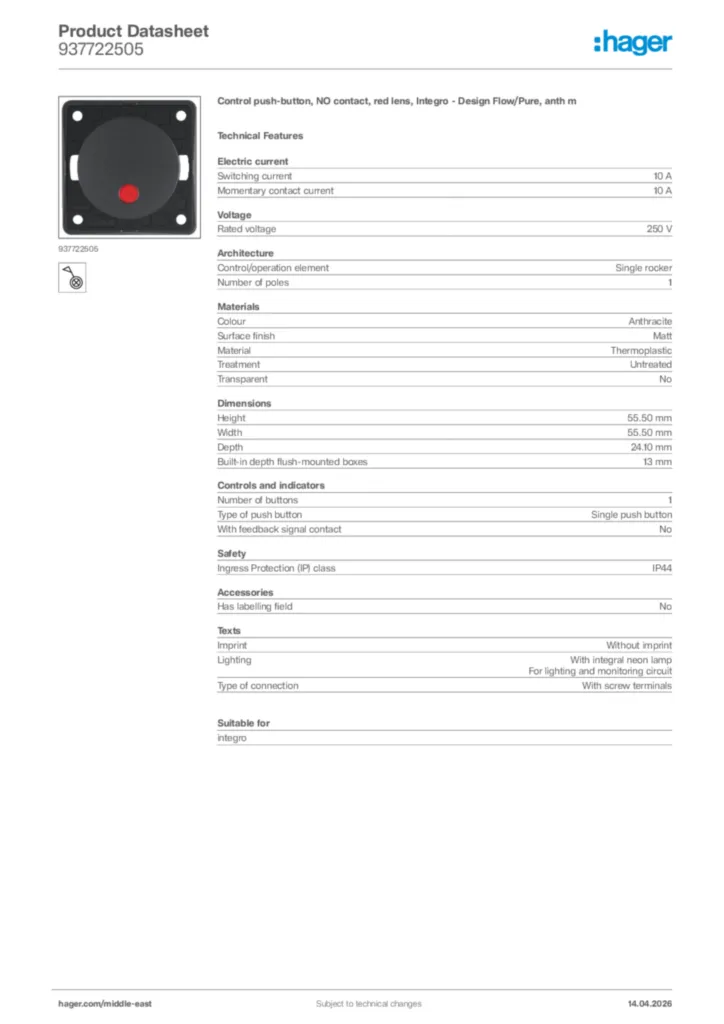

Hager Product data sheet 937722505
Control push-button, NO contact, red lens, Integro - Design Flow/Pure, anth m
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2021-12-17
PDF273,46 kB
Declaration of conformity International 2021-11-19
Declaration of conformity International 2021-12-13
PDF269,32 kB
More documentation
