KNX radio timer quicklink, display, R.1/R.3/1930/R.cl., p. white glossy 85745239
EAN-Nr.
4011334375579
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
Compatible products
-
Referenced by 154 products available
Referenced by
-
10122289Frame 2gang, R.3, p. white glossy
-
10112114Frame 1gang, R.1, stainless steel/p. white
-
10122114Frame 2gang, R.1, stainless steel/p. white
-
10132114Frame 3gang, R.1, stainless steel/p. white
-
10142114Frame 4gang, R.1, stainless steel/p. white
-
10112104Frame 1gang, R.1, stainless steel/black
-
10122104Frame 2gang, R.1, stainless steel/black
-
10132104Frame 3gang, R.1, stainless steel/black
-
10142104Frame 4gang, R.1, stainless steel/black
-
10112289Frame 1gang, R.3, p. white glossy
-
10132245Frame 3gang, R.3, black glossy
-
10132209Frame 3gang, R.3, glass p. white
-
10122209Frame 2gang, R.3, glass p. white
-
10112209Frame 1gang, R.3, glass p. white
-
10142245Frame 4gang, R.3, black glossy
-
10112245Frame 1gang, R.3, black glossy
-
10132289Frame 3gang, R.3, p. white glossy
-
10142289Frame 4gang, R.3, p. white glossy
-
10142184Frame 4gang, R.1, al./black
-
10122245Frame 2gang, R.3, black glossy
Technical characteristics
Settings
-
Supported configuration modequicklink
Connectivity
-
With bus system KNX radioYes
-
Radio protocolKNX Radio
Equipment
-
Number of channels1
-
Summer-/wintertime switchoverYes
Scope of delivery
-
Bus connection includedYes
Functions
-
Astro time shift2 h
-
Battery backup8 h
-
Power reserve in years0
Use conditions
-
Operating temperature-5 - 45 °C
Materials
-
ColourPolar white
Texts
-
FunctionEasy additional functions: +6 scenes, dimming, 1 up/down button control, priority, Configurable transmission and/or reception behaviour, With keylock, Party function, no execution of automatic, radio and extension unit commands (switch protection), Reset function (to factory setting)
-
ProtectionWith dismantling protection
Capacity
-
Number of modules0
Dimensions
-
Depth30.50 mm
-
Related SystemsR.x
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

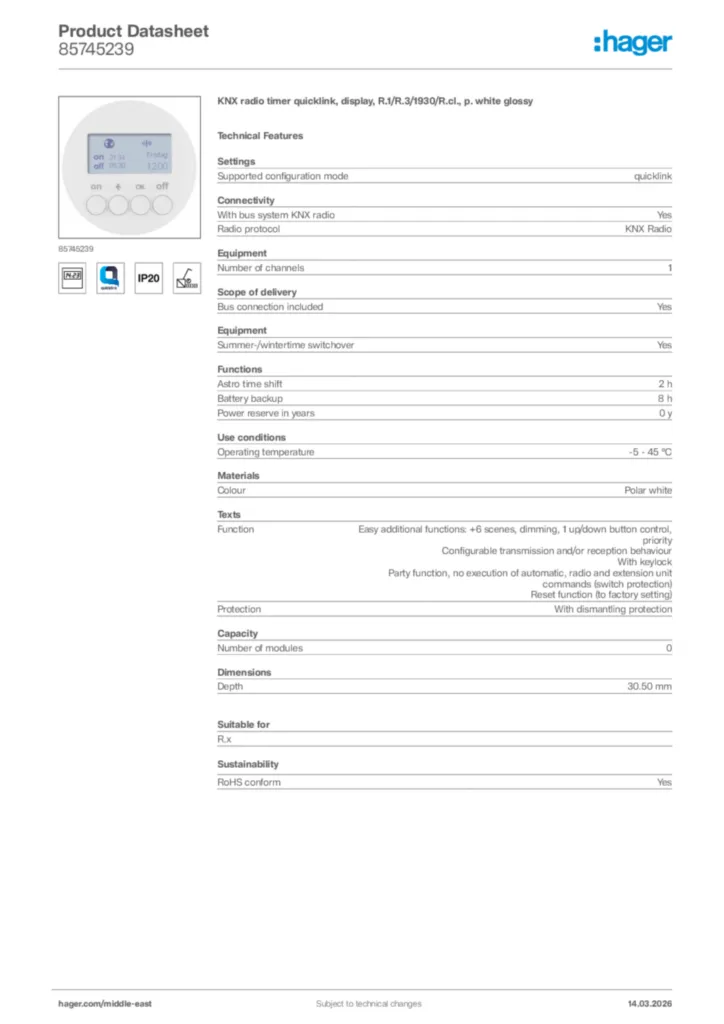

Product datasheet
Hager Product data sheet 85745239
KNX radio timer quicklink, display, R.1/R.3/1930/R.cl., p. white glossy
PDF -
Installation manual
Installation manual en-GB 2022-05-23
PDF1,30 MB -
KNX product database
KNX Database (from ETS3) for 856551xx-856552xx - KNX radio wall-transmitter 1gang flat quicklink (V101)
KNX product database International 2020-01-01
VD514,64 MB
KNX Database (from ETS3) for 857452xx - KNX radio timer quicklink (V100)
KNX product database International 2020-01-01
VD516,04 MB
KNX Database (from ETS4) for 856551xx-856552xx - KNX radio wall-transmitter 1gang flat quicklink (V101)
KNX product database International 2020-01-01
KNXPROD12,24 MB
KNX Database (from ETS4) for 857452xx - KNX radio timer quicklink (V100)
KNX product database International 2020-01-01
KNXPROD13,42 MB -
Application Guide
Application description ETS for 857452xx - KNX radio timer quicklink (EN, vers. 6T8014-52A)
Application Guide en-GB, pl-PL 2013-01-17
PDF1,57 MB -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-05-04
PDF285,63 kB
Declaration of Conformity
Declaration of conformity International 2021-05-04
PDF291,50 kB
More documentation
