KNX radio wall-transmitter 1gang flat solar quicklink, R.1/R.3, p. white glossy 85655139
EAN-Nr.
4011334369592
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Cover frame for domestic switching devices 10 products available
Complete your system
-
10112179
Frame 1gang, lab. field, R.1, p. white glossy
-
10122179Frame 2gang hor., lab. field, R.1, p. white glossy
-
10132179Frame 3gang hor., lab. field, R.1, p. white glossy
-
10122169Frame 2gang vert., lab. field, R.1, p. white glossy
-
10132169Frame 3gang vert., lab. field, R.1, p. white glossy
-
10112189Frame 1gang, R.1, p. white glossy
-
10122189Frame 2gang, R.1, p. white glossy
-
10132189Frame 3gang, R.1, p. white glossy
-
10142189Frame 4gang, R.1, p. white glossy
-
10152189Frame 5gang, R.1, p. white glossy
Technical characteristics
Settings
-
Supported configuration modequicklink
Voltage
-
Operating voltage3 - 3 V
Equipment
-
Number of channels2
-
Transmitter duty cycle1 %
Connectivity
-
Radio protocolKNX Radio
-
Receiver category2
Use conditions
-
Operating temperature-5 - 45 °C
Dimensions
-
Assembling height14 mm
Materials
-
ColourPolar white
-
MaterialThermoplastic
Safety
-
Ingress Protection (IP) classIP20
Texts
-
FunctionEasy additional functions: +6 scenes, on/off operating mode, 1 up/down button control, Reset function (to factory setting)
-
ProtectionWith dismantling protection
-
VoltagePower supply via solar cells
-
Installation modeFor flat surface mounting and extension of combinations
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

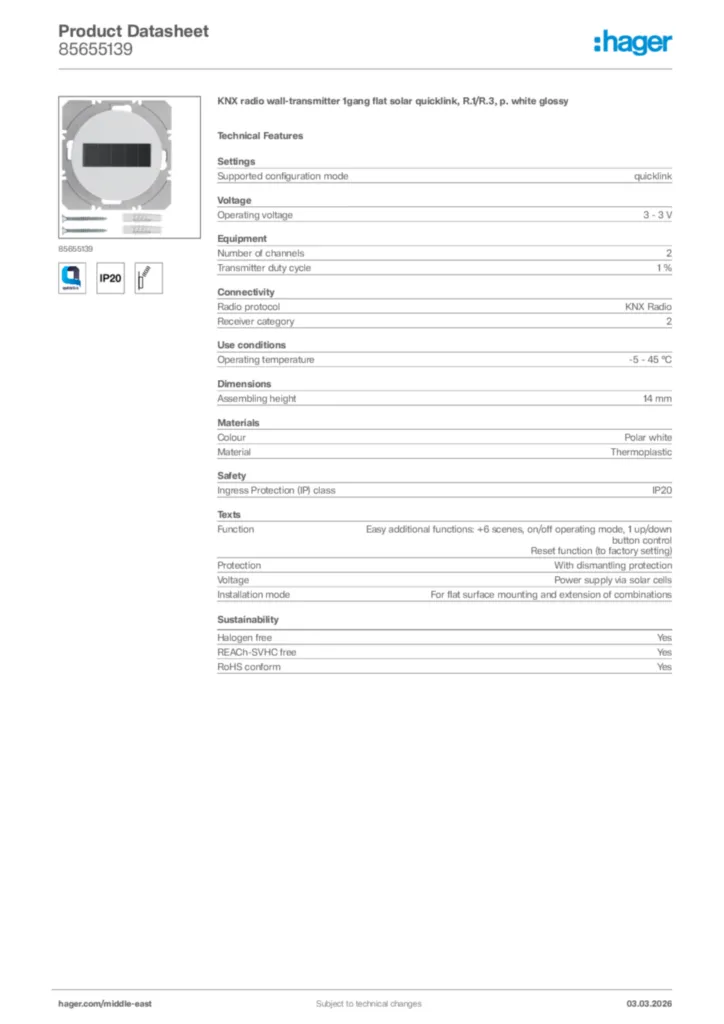

Product datasheet
Hager Product data sheet 85655139
KNX radio wall-transmitter 1gang flat solar quicklink, R.1/R.3, p. white glossy
PDF -
Installation manual
Manual for 856552xx, 856562xx, 856551xx and 856561xx - KNX radio wall-transmitter 1-/2gang flat/solar quicklink (EN, 2012-08)
Installation manual en-GB, pl-PL 2012-03-19
PDF1,26 MB -
Product attachment
Configuration guide quicklink (DE-FR-IT-NL, 2016-02)
Product attachment International 2020-01-01
PDF1,18 MB -
KNX product database
KNX Database (from ETS3) for 856551xx-856552xx - KNX radio wall-transmitter 1gang flat quicklink (V101)
KNX product database International 2020-01-01
VD514,64 MB
KNX Database (from ETS4) for 856551xx-856552xx - KNX radio wall-transmitter 1gang flat quicklink (V101)
KNX product database International 2020-01-01
KNXPROD12,24 MB -
Application Guide
Application description ETS for 856551xx-856552xx-856561xx-856562xx - KNX radio wall-transmitter flat quicklink (EN, vers. 6T8010-52A)
Application Guide en-GB, pl-PL 2013-01-16
PDF1,34 MB -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-05-04
PDF290,47 kB
Declaration of Conformity
Declaration of conformity International 2021-05-04
PDF292,46 kB
