Hager in the world
The Hager Gallery plate, 6 modules (57 mm pitch), frames and protects a horizontal row of mechanisms with a sleek midnight look. Glossy jet black (RAL 9005) in glass and durable polycarbonate, it offers IK05 impact resistance and IP21 indoor protection. Compact at 206 x 87.7 x 9.3 mm, it’s ideal for refined residential or commercial interiors.
EAN
3250617197199
Packaging
1 Piece
Gallery plate 8 modules 71mm midnight glass Jet black IP21 IK05 glossy WXP4106
Login to create a product list
You need to be logged into your myHager account to create product lists
Also available in
Product colour - Jet black
Jet black
Silver
Number of gangs
Complete your system
Optional accessories
-
Cover for push button 22 products available -
Touch sensor for bus system 11 products available -
Movement sensor for bus system 2 products available -
Socket outlet 8 products available -
Centre piece for switch or push button 6 products available
Complete your system
-
WXE316DCover KNX push button 6 gang with LED gallery dune
-
WXE302BCover KNX push button 2 gang gallery pure
-
WXE304NCover KNX push button 4 gang gallery night
-
WXE304BCover KNX push button 4 gang gallery pure
-
WXE312DCover KNX push button 2 gang with LED gallery dune
-
WXE302NCover KNX push button 2 gang gallery night
-
WXE314TCover KNX push button 4 gang with LED gallery titane
-
WXE312BCover KNX push button 2 gang with LED gallery pure
-
WXE306TCover KNX push button 6 gang gallery titane
-
WXE316NCover KNX push button 6 gang with LED gallery night
-
WXE306NCover KNX push button 6 gang gallery night
-
WXE316T
Cover KNX push button 6 gang with LED gallery titane
-
WXE306DCover KNX push button 6 gang gallery dune
-
WXE312TCover KNX push button 2 gang with LED gallery titane
-
WXE306BCover KNX push button 6 gang gallery pure
-
WXE304TCover KNX push button 4 gang gallery titane
-
WXE304DCover KNX push button 4 gang gallery dune
-
WXE302DCover KNX push button 2 gang gallery dune
-
WXE302TCover KNX push button 2 gang gallery titane
-
WXE314BCover KNX push button 4 gang with LED gallery pure
-
WXF094
Radio wall-transmitter, gallery, Quicklink, flatt, Battery, 4gang
-
WXF092Radio wall-transmitter, gallery, Quicklink, flatt, Battery, 2gang
-
WXT324KNX push button 4 gang with LED + IR gallery
-
WXT322KNX push button 2 gang with LED + IR gallery
-
WXT302KNX push button 2 gang gallery
-
WXT306KNX push button 6 gang gallery
-
WXT312KNX push button 2 gang with LED gallery
-
WXT304KNX push button 4 gang gallery
-
WXT316KNX push button 6 gang with LED gallery
-
WXT314KNX push button 4 gang with LED gallery
-
WXF096Radio wall-transmitter, gallery, Quicklink, flatt, Battery, 6gang
-
WXF433
Triple socket with detrompage for trunking gallery 2P+E 16A
-
WXF423VTriple socket for trunking gallery 2P+E 16A green
-
WXF423TTriple socket for trunking gallery 2P+E 16A titane
-
WXF423RTriple socket for trunking gallery 2P+E 16A red
-
WXF423NTriple socket for trunking gallery 2P+E 16A night
-
WXF423ETriple socket for trunking gallery 2P+E 16A orange
-
WXF423BTriple socket for trunking gallery 2P+E 16A pure
-
WXF106gallery socket mechanism compatible hidden and standard
-
WXD010T
Rocker for switch gallery 1 module titane
-
WXD010NRocker for switch gallery 1 module night
-
WXD010BRocker for switch gallery 1 module pure-white
-
WXD011TRocker with light indicator switch gallery 1 module titane
-
WXD011NRocker with light indicator switch gallery 1 module night
-
WXD011BRocker with light indicator switch gallery 1 module pure-white
Technical properties
Capacity
-
Number of gangs1
Materials
-
ColourJet black
-
RAL code9005
-
Surface finishGlossy
-
MaterialGlass, Polycarbonate (PC)
-
TreatmentUntreated
Dimensions
-
Height87.70 mm
-
Width206 mm
-
Depth9.30 mm
Accessories
-
Has labelling fieldNo
Installation, mounting
-
Mounting-/Connection PositionHorizontal
Safety
-
Ingress Protection (IP) classIP21
-
Impact resistance IKIK05
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

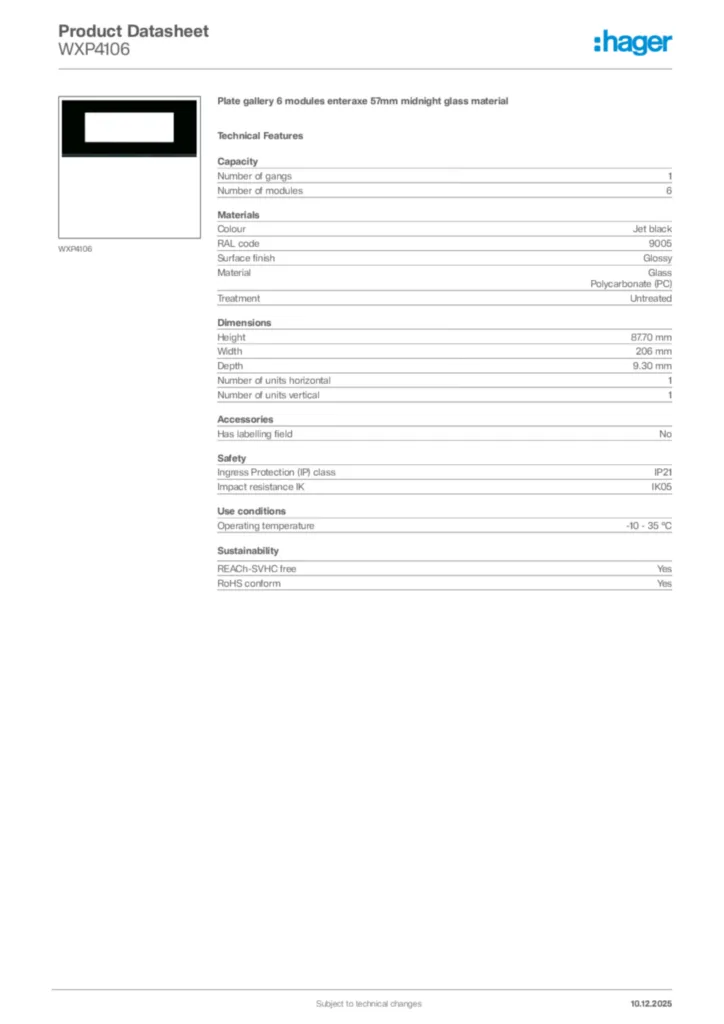

Product datasheet
Hager Product data sheet WXP4106
Plate gallery 6 modules enteraxe 57mm midnight glass material
PDF -
Product certificate
Product certificate en-GB 2023-02-14
Product certificate en-GB 2024-03-19
PDF967,62 kB -
Declaration of conformity
Declaration of conformity International 2022-03-02
PDF99,87 kB
dc24-0011
Declaration of conformity en-GB 2024-05-28
PDF364,74 kB
