cubyko Double horizontal socket 2P+E screwless wall mounted grey IP55 WNC122
Login to create a product list
You need to be logged into your myHager account to create product lists
Also available in
Product colour - Grey
Grey
Polar white
Complete your system
Compatible products
-
Referenced by 9 products available
Referenced by
-
WNA686cubyko Double vertical box empty grey IP55
-
WNA685Bcubyko Double horizontal box empty with 4 sliders white IP55
-
WNA685cubyko Double horizontal box empty with 4 sliders grey IP55
-
WNA682cubyko Double horizontal box empty with 2 sliders grey IP55
-
WNA685B
cubyko Double horizontal box empty with 4 sliders white IP55
-
WNA686Bcubyko Double vertical box empty white IP55
-
WNA682Bcubyko Double horizontal box empty with 2 sliders white IP55
-
WNA685
cubyko Double horizontal box empty with 4 sliders grey IP55
-
WNA686
cubyko Double vertical box empty grey IP55
Technical properties
Voltage
-
Rated voltage250 V
Electric current
-
Rated current16 A
Frequency
-
Frequency50 - 60 Hz
Materials
-
ColourGrey
-
RAL code7011
-
Surface finishMatt
-
MaterialThermoplastic
-
TreatmentUntreated
Dimensions
-
Height76 mm
-
Width147 mm
-
Depth65 mm
-
Number of units2
-
Built-in depth flush-mounted boxes0
-
Built-in depth0
Connection
-
Connector/plug typeScrew terminal
Installation, mounting
-
Mounting onSurface mounting
-
Mounting-/Connection PositionHorizontal
Connectivity
-
Type of connectionPlug-in connection
-
Mounting typeScrew mounting
Equipment
-
Connector/plug type socket outletEarthing pin
-
Rotated central insertNo
-
With hinged lidYes
-
With round protective earth pinYes
-
With signal lampNo
-
With lockNo
Accessories
-
Has labelling fieldNo
Cover, door
-
Type of lidSelf-closing hinged cover, can be arrested in end position
Capacity
-
Number of modules2
Safety
-
With enhanced contact protectionYes
-
Impact resistance IKIK07
-
Ingress Protection (IP) classIP55
Functions
-
With orientation lightingNo
-
With function lightingNo
Identification
-
With imprintNo
-
Related Systemscubyko
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

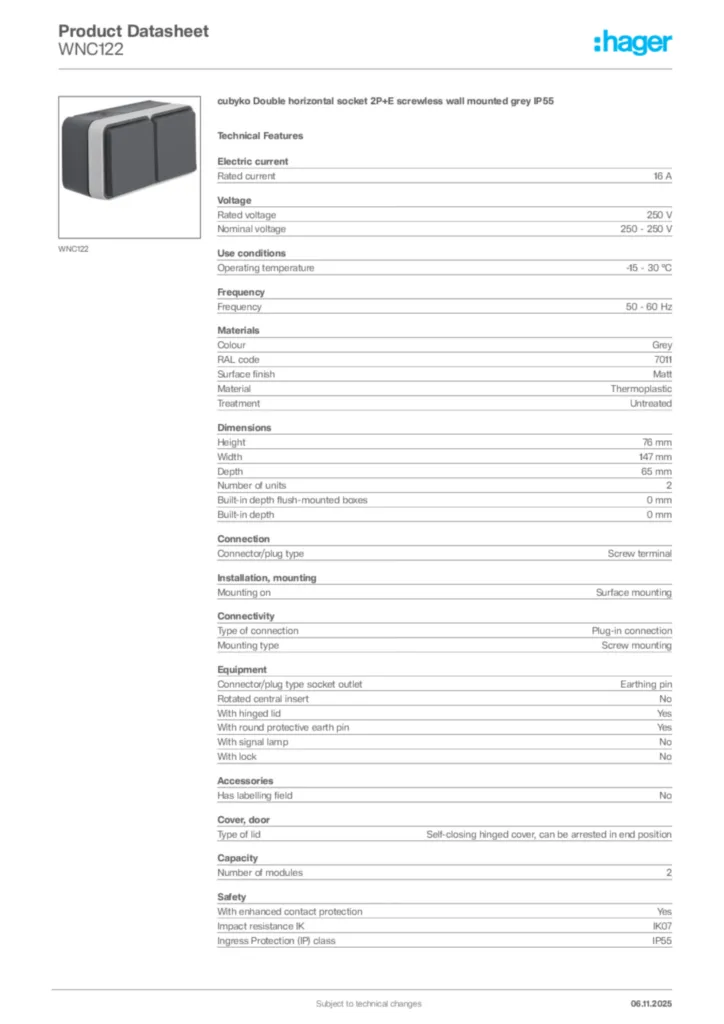

Product datasheet
Hager Product data sheet WNC122
cubyko Double horizontal socket 2P+E screwless wall mounted grey IP55
PDF -
Product licence
Product licence en-GB, fr-FR 2013-08-27
PDF171,71 kB -
Declaration of conformity
Declaration of conformity International 2021-07-14
PDF111,30 kB
Declaration of conformity en-GB 2025-12-05
PDF227,13 kB
