Hager Vector IP65 surface-mounted enclosure providing 36 modules (3 rows of 12) for neat indoor distribution in residential or light commercial sites. Rated 63 A, 400 V, with 12 conduit inlets, 3 rails, Class II insulation, IK08 impact resistance, and a transparent single door. Light grey PS (RAL7035). Snap-on, no lock. Dimensions 552×310×151 mm. IP65 with door. Not UV-resistant; indoor use only.
EAN
3250616456105
VPE
1 piece
Enclosure Vector JP5x 24M IP65 IK08 2-row Surface-mount 63A Transparent door VE312L
Phase out product: please contact your electrical wholesaler for availability
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Accessories/spare parts for terminals 8 product.page.accessories.products-available -
Cross-connector for terminal block 1 product.page.accessories.products-available -
Cable gland shroud 2 product.page.accessories.products-available -
Cable entry sleeve 1 product.page.accessories.products-available -
Cable gland 5 product.page.accessories.products-available -
Lock system 1 product.page.accessories.products-available
product.page.accessories.title-modal
-
VZ461
Terminal support, Volta, QuickConnect, equipped, 1R
-
VZ462Terminal support, Volta, QuickConnect, equipped, 2R
-
VZ463Terminal support, Volta, QuickConnect, equipped, 3R
-
VZ464Terminal support, Volta, QuickConnect, equipped, 4R
-
VZ521PE/N-Terminal support, Volta, with brass Terminals 13 connections
-
VZ522PE/N-Terminal support, Volta, with brass Terminals 17 connections
-
VZ523PE/N-Terminal support, Volta, with brass Terminals 22 connections
-
VZ524PE/N-Terminal support, Volta, with brass Terminals 25 connections
Technical characteristics
Connection
-
Number of conduit inlets12
Voltage
-
Nominal voltage400 - 400 V
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current IN63 A
Equipment
-
Number of rails3
-
Number of rows3
-
Number of section in width1
-
With lockNo
-
Has neutral terminal blockNo
-
Has earthing terminal blockNo
-
Has mounting plateNo
Capacity
-
Number of modules36
Functions
-
With conduit inletsYes
Dimensions
-
Height552 mm
-
Width310 mm
-
Depth151 mm
-
Number of width units12
Cover, door
-
Number of cabinet doors1
-
Number of locks0
-
Door/cover is transparentYes
-
Cabinet door typeSingle door
Materials
-
MaterialPolystyrene (PS)
-
RAL code7035
-
ColourLight grey
-
Ultraviolet-resistantNo
Safety
-
Protection classIsolation class II
-
Impact resistance IKIK08
-
Ingress Protection (IP) classIP65
-
Locking typeSnap on lock, Without lock
-
Glow wire test750 °C
-
Protection class with doorIP65
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-

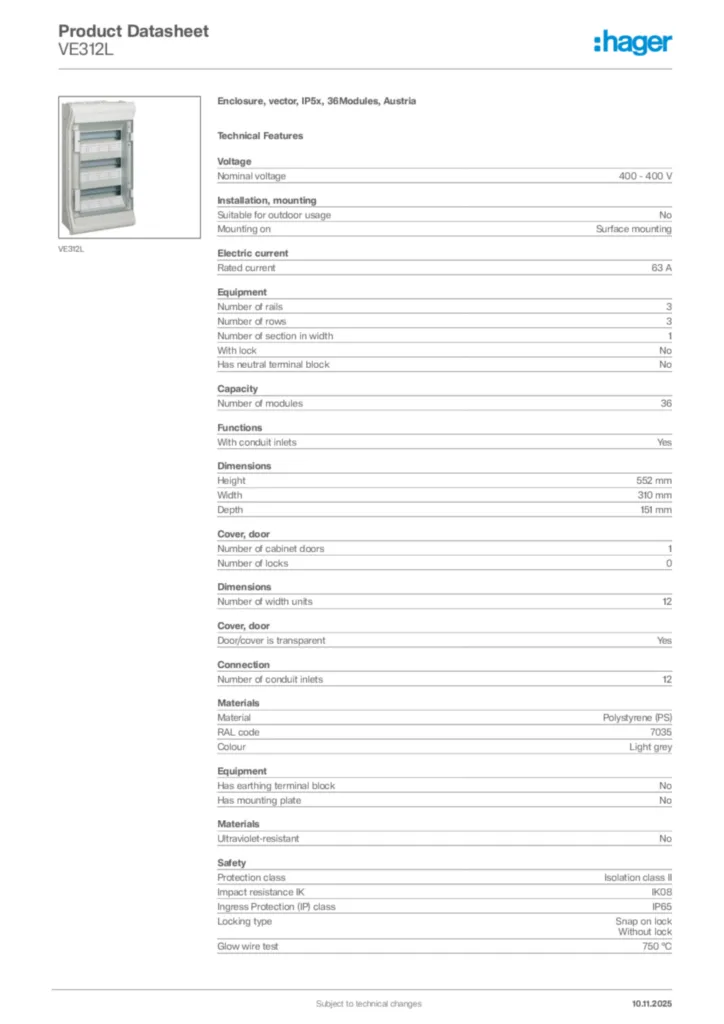

GeneratedProductDatasheet
