Enclosure,vector, JP5x,24Modules,version Austria VE212L

EAN
3250616455108
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Enclosure,vector, JP5x,24Modules,version Austria

VE212L

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • See more (25)
    • Accessor­ies/s­pare parts for terminals 8 products available
    • Cross-­con­nector for terminal block 1 products available
    • Common Accessories 1 products available
    • Cable gland shroud 2 products available
    • Cable gland 8 products available
    • Cable entry sleeve 2 products available

    Complete your system

    • Accessor­ies/s­pare parts for terminals
    • Cross-­con­nector for terminal block
    • Common Accessories
    • Cable gland shroud
    • Cable gland
    • Cable entry sleeve
    • Gland plate for enclosure
    • Distrib­utor assembly terminal blocks
    • Lock system
    • VZ461

      Terminal support, Volta, QuickConnect, equipped, 1R
      0.00 €  / *
    • VZ462

      Terminal support, Volta, QuickConnect, equipped, 2R
      0.00 €  / *
    • VZ463

      Terminal support, Volta, QuickConnect, equipped, 3R
      0.00 €  / *
    • VZ464

      Terminal support, Volta, QuickConnect, equipped, 4R
      0.00 €  / *
    • VZ521

      PE/N-Terminal support, Volta, with brass Terminals 13 connections
      0.00 €  / *
    • VZ522

      PE/N-Terminal support, Volta, with brass Terminals 17 connections
      0.00 €  / *
    • VZ523

      PE/N-Terminal support, Volta, with brass Terminals 22 connections
      0.00 €  / *
    • VZ524

      PE/N-Terminal support, Volta, with brass Terminals 25 connections
      0.00 €  / *
    • VZ728

      Carrier, vector, with PE/N-terminal 1x25
      0.00 €  / *
    • VZ011

      Enclosure, vector, wall mounting lug for external fixation
      0.00 €  / *
    • VZ013V

      Plugs for pressure equalization fitting, universal, for M20/25
      0.00 €  / *
    • VZ021V

      Enclosure, vector, sealing plug, for pressure balance screw joint M2
      0.00 €  / *
    • VZ016M

      Cable gland, vector, IP65, M16, plastic
      0.00 €  / *
    • VZ020M

      Cable gland, vector, IP65, M20, plastic
      0.00 €  / *
    • VZ025M

      Cable gland, vecor, IP65, M25, plastic
      0.00 €  / *
    • VZ032M

      Cable gland, vector, IP65, M32, plastic
      0.00 €  / *
    • VZ040M

      Cable gland, vector, IP65, M40, plastic
      0.00 €  / *
    • VZ020D

      Pressure balance screw joint, vector, IP66, M20
      0.00 €  / *
    • VZ025D

      Pressure balance screw joint, vector, IP66, M25
      0.00 €  / *
    • VZ032D

      Pressure balance screw joint, vector, IP66, M32
      0.00 €  / *
    • VZ758

      Bushing line, vector, IP54, metric
      0.00 €  / *
    • VZ754

      Coupling bushing, vector, PG21, RAL7035, Set: 10 pieces
      0.00 €  / *
    • VZ747

      Insert shutter, vector, for 12M
      0.00 €  / *
    • KJ01B

      Brass busbar terminal 80A, 4pole, 1x 2, 5-16 ² / 8x 1, 5-10 ² per pole
      0.00 €  / *
    • VZ311

      Key lock, vector, with 2 keys
      0.00 €  / *

    Technical properties

    Connec­tion
    • Number of conduit inlets
      12
    Voltage
    • Nominal voltage
      400 - 400 V
    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Surface mounting
    Elec­tric current
    • Rated current
      63 A
    Equip­ment
    • Number of rails
      2
    • Number of rows
      2
    • Number of section in width
      1
    • With lock
      No
    • Has neutral terminal block
      No
    • Has earthing terminal block
      No
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      24
    Func­tions
    • With conduit inlets
      Yes
    Dimen­sions
    • Height
      427 mm
    • Width
      310 mm
    • Depth
      151 mm
    • Number of width units
      12
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      0
    • Door/­cover is trans­parent
      Yes
    Mater­ials
    • Material
      Poly­styrene (PS)
    • RAL code
      7035
    • Colour
      Light grey
    • Ultra­vi­olet-res­istant
      No
    Safety
    • Protec­tion class
      Isol­a­tion class II
    • Impact resist­ance IK
      IK08
    • Ingress Protec­tion (IP) class
      IP65
    • Locking type
      Snap on lock, Without lock
    • Glow wire test
      750 °C

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Hager REACH declaration VE212L
    PDF
    Hager RoHS report VE212L
    PDF
    PEP - ENCLOSURE SURFACE GAMMA 26 M (english)
    PDF
    25,39 MB

    Downloads

    • Image VE212L | Hager Africa

      Product Image VE212L

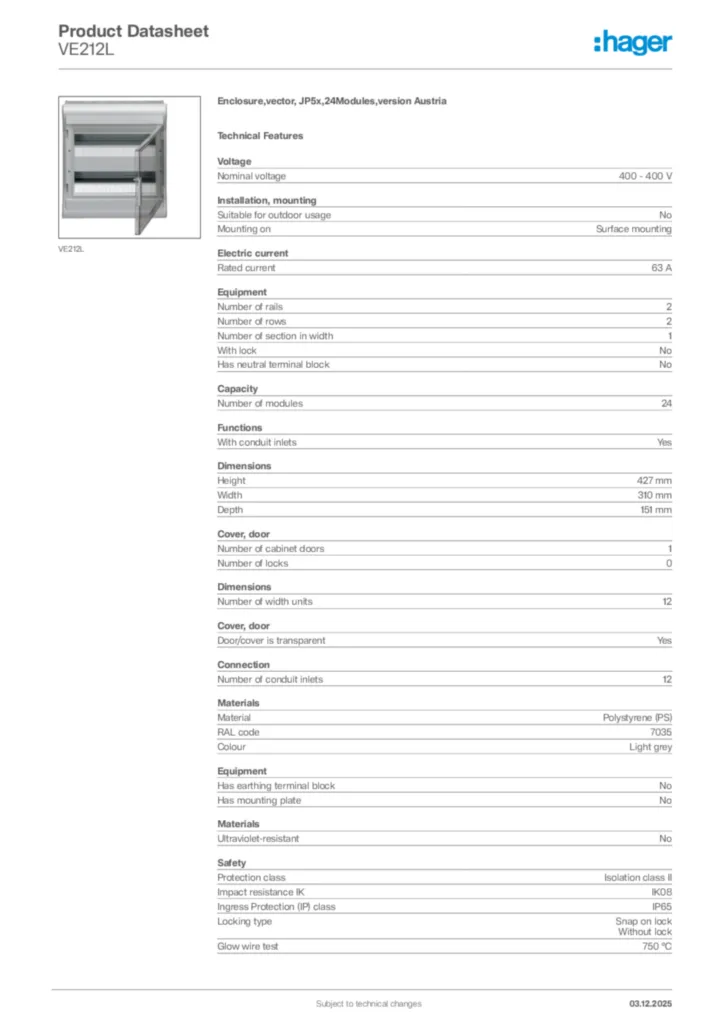

    • Product datasheet

      Image undefined | Hager Africa

      undefined

      PDF

    • Installation manual

      Image Installation manual International 2022-02-07 | Hager Africa

      Installation manual International 2022-02-07

      PDF
      4,31 MB

    • Declaration of conformity

      Image Declaration | Hager Africa

      Declaration

      Declaration of conformity International 2022-11-14

      PDF
      257,02 kB
      Image Declaration | Hager Africa

      Declaration

      Declaration of conformity International 2022-05-09

      PDF
      836,07 kB
      Image Declaration | Hager Africa

      Declaration

      Declaration of conformity International 2022-12-19

      PDF
      258,36 kB
      Image Declaration | Hager Africa

      Declaration

      Declaration of conformity International 2022-02-18

      PDF
      814,05 kB
