The Hager Modular Door for ACB HW 2000 A, Quadro Evo, secures and finishes switchgear compartments in distribution boards. Steel, powder-coated RAL 9010, right-hinged single door; 600 x 700 x 365 mm. IP30, Class I, 3-point 7 mm lock with 2 keys. Fits 2-section width panels. Ideal for enclosing air circuit breakers up to 2000 A in commercial and industrial installations.

EAN

3250616377394

Packaging

1 Piece

quadro evo enclosures and accessories

Orion.Plus steel enclosure plain door 1200x1200x400 IP65 IK10 wall-mount UC766PDH

Technical properties
Environmental value
Documentations
More products

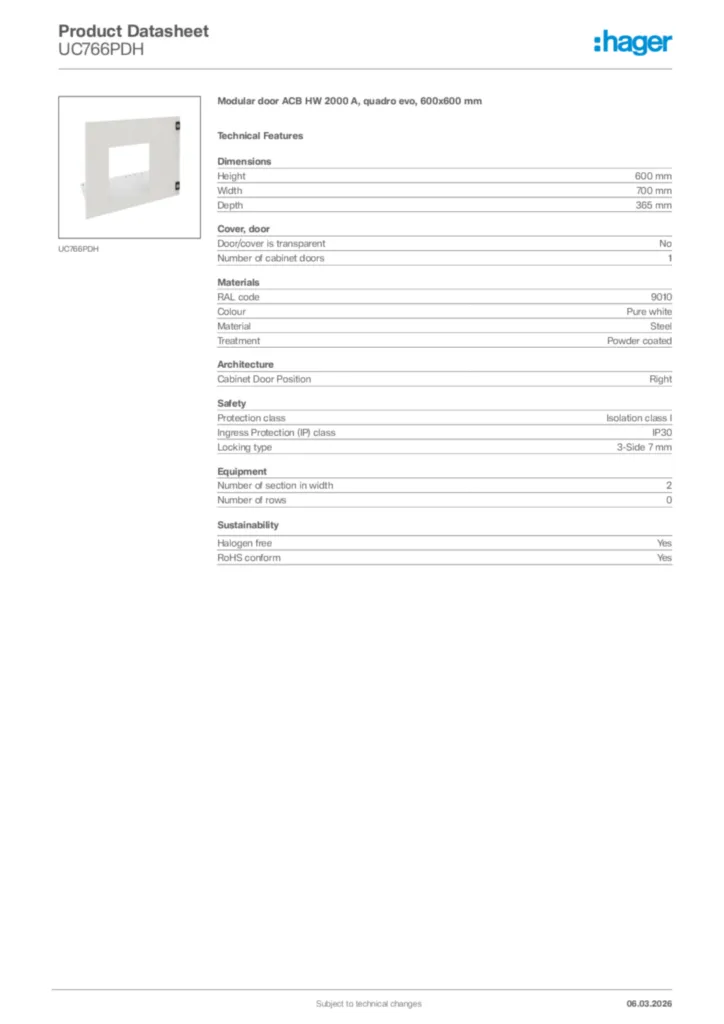

Download the data sheet

Technical properties

Height

600 mm
Width

700 mm
Depth

365 mm

Door/cover is transparent

No
Number of cabinet doors

1

RAL code

9010
Colour

Pure white
Product colour

Pure white
Material

Steel
Treatment

Powder coated

Cabinet Door Position

Right

Protection class

Isolation class I
Ingress Protection (IP) class

IP30
Locking type

3-Side 7 mm

Number of section in width

2
Number of rows

0
Number of keys

2

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Halogen free Yes
