The Hager Quadro Evo segregation plate for HW ACBs (600x600 mm, depth 517) provides safe compartmentalisation in switchboards, separating power sections to enhance touch protection, arc-fault containment and thermal management. Made from galvanised, varnished steel for durability, Class I earthed construction. Sized for 600x600 cabinets for easy integration and compliant clearances.
EAN
3250616377363
Packaging
1 Piece
Enclosed fused combination switch TPN 125A IP41 UC6060HW
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Safety
-
Protection classIsolation class I
Dimensions
-
Height600 mm
-
Width600 mm
-
Depth517 mm
Materials
-
MaterialSteel
-
TreatmentGalvanised, Varnished
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

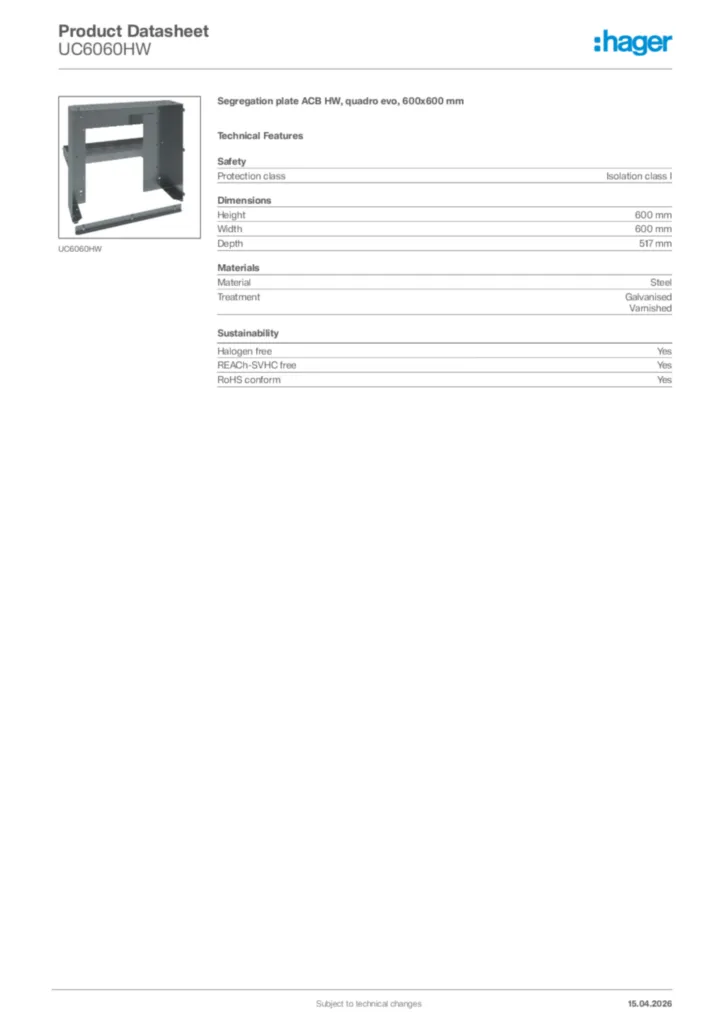

Hager Product data sheet UC6060HW
Segregation plate ACB HW, quadro evo, 600x600 mm
PDF -
Instruction manual
Instruction manual International 2025-02-12
PDF5,76 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2023-09-26
PDF348,14 kB
Declaration
Declaration of conformity International 2023-09-26
PDF360,17 kB
Declaration of conformity International 2024-02-15
PDF380,56 kB
Declaration of conformity International 2024-02-15
PDF393,09 kB
Declaration of conformity en-GB 2026-04-07
PDF461,69 kB
Declaration of conformity en-GB 2026-04-07
PDF441,44 kB
