    • TYBS704A
    EAN
    3250610050538
    Packaging
    1 Piece
    • Binary input modules

    Binary input 4 fold, flush mounted, KNX TYBS704A

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Binary input 4 fold, flush mounted, KNX

    TYBS704A

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

  • See more (13)
    • Surge protec­tion device for data network­s/MCR tech­no­logy 1 products available
    • Accessor­ies/s­pare parts for bus system 4 products available
    • Inter­face for bus system 1 products available
    • System inter­face/­media gateway for bus system 3 products available
    • Power supply for bus system 2 products available
    • Connec­tion/branching terminal for bus system 1 products available

    Complete your system

    • Surge protec­tion device for data network­s/MCR tech­no­logy
    • Accessor­ies/s­pare parts for bus system
    • Inter­face for bus system
    • System inter­face/­media gateway for bus system
    • Power supply for bus system
    • Connec­tion/branching terminal for bus system
    • Area/line coupler for bus system
    • TG029

      Surge protection device, KNX
      0.00 €  / *
    • TG019

      Bus cable length 500m green, KNX
      0.00 €  / *
    • TG018

      Bus cable length 100m green, KNX
      0.00 €  / *
    • TGZ181

      Bus cable, 100m, B2cas1d1a1, green
      0.00 €  / *
    • TGZ185

      Bus cable, 500m, B2cas1d1a1, green
      0.00 €  / *
    • TYFS122

      Modular USB KNX Secure Interface
      0.00 €  / *
    • TYFS120

      KNX/IP Secure interface, 1 module
      0.00 €  / *
    • TYFS121

      Router KNX/IP Secure, 1 module
      0.00 €  / *
    • TJAS471

      domovea plus
      0.00 €  / *
    • TXA112

      Power supply 30V DC 640 mA
      0.00 €  / *
    • TXA114

      Power supply 1x 30V DC KNX + 1x 24V DC
      0.00 €  / *
    • TG008

      Connectors for twisted pair termination red/black
      0.00 €  / *
    • TYFS130

      Line Coupler, KNX Secure
      0.00 €  / *

    Technical properties

    Archi­tec­ture
    • Bus system
      EIB
    Settings
    • Supported config­ur­a­tion mode
      ETS, easy
    Elec­tric current
    • Number of entry circuits
      4
    Connectivity
    • With bus system KNX radio
      No
    Equip­ment
    • External signal voltage neces­sary
      No
    • Radio frequency bidirec­tional
      No
    • With battery
      No
    • With HVAC control
      No
    Install­a­tion, mounting
    • Mounting on
      Flush mounting
    Lighting
    • LED controlling
      No
    Mater­ials
    • Material
      Plastic
    • Colour
      Light grey
    • RAL code
      7035
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    Use condi­tions
    • Oper­ating temper­ature
      -5 - +45 °C
    Cable
    • Cable length
      0.25 m
    Voltage
    • Input voltage
      3.3-3.3 V
    • Oper­ating voltage over bus
      21-32 V
    • Type voltage supply
      DC
    • System supply voltage
      30 V DC Via bus
    Dimen­sions
    • Length
      43 mm
    • Height
      28.5 mm
    • Depth
      15.4 mm
    Texts
    • Install­a­tion mode
      For flush-­mounted and hollow wall mounting
    • Type of connec­tion
      With pre-assembled cable

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    REACH declaration TYBS704A
    PDF
    RoHS report TYBS704A
    PDF
    PEP document en-GB 2024-04-12
    PDF
    412,93 kB

    Downloads

    • Image TYBS704A | Hager Africa

      Product Image TYBS704A

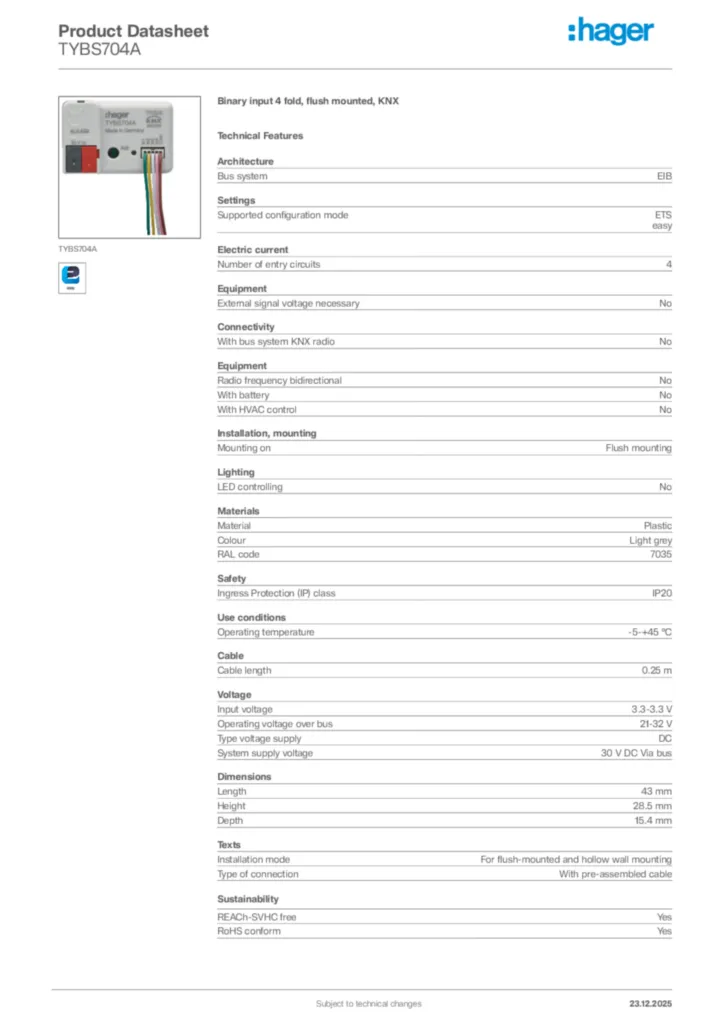

    • Product datasheet

      Image Hager Product data sheet TYBS704A | Hager Africa

      Hager Product data sheet TYBS704A

      Binary input 4 fold, flush mounted, KNX

      PDF

    • Instruction manual

      Image Instruction manual en-GB 2025-04-01 | Hager Africa

      Instruction manual en-GB 2025-04-01

      PDF
      814,36 kB

    • Installation manual

      Image Installation manual en-GB, de-DE, fr-FR, it-IT, nl-NL, pt-PT, zh-CN 2023-12-15 | Hager Africa

      Installation manual en-GB, de-DE, fr-FR, it-IT, nl-NL, pt-PT, zh-CN 2023-12-15

      PDF
      3,05 MB

    • Manual

      Image Manual en-GB 2021-11-10 | Hager Africa

      Manual en-GB 2021-11-10

      PDF
      2,67 MB

    • KNX product database

      Image KNX product database International 2024-05-06 | Hager Africa

      KNX product database International 2024-05-06

      KNXPROD
      1,16 MB

    • Application Guide

      Image Application Guide en-GB 2024-06-27 | Hager Africa

      Application Guide en-GB 2024-06-27

      PDF
      1,57 MB

    • Declaration of conformity

      Image EU Declaration of Conformity | Hager Africa

      EU Declaration of Conformity

      Declaration of conformity en-GB, fr-FR 2024-03-28

      PDF
      360,90 kB
      Image UKCA Declaration of Conformity | Hager Africa

      UKCA Declaration of Conformity

      Declaration of conformity en-GB 2024-03-28

      PDF
      270,31 kB
