Liféa trunking 60x90 with coupling and 2 cable retainer, grey LFF6009007030

EAN
4012740852647
Packaging
16 Meters

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Liféa trunking 60x90 with coupling and 2 cable retainer, grey

LFF6009007030

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • See more (7)
    • Cable clip/re­tainer for install­a­tion duct 1 products available
    • Parti­tion for install­a­tion duct 1 products available
    • End piece for install­a­tion duct 1 products available
    • External corner for install­a­tion duct 1 products available
    • Internal corner for install­a­tion duct 1 products available
    • T-piece for install­a­tion duct 1 products available

    Complete your system

    • Cable clip/re­tainer for install­a­tion duct
    • Parti­tion for install­a­tion duct
    • End piece for install­a­tion duct
    • External corner for install­a­tion duct
    • Internal corner for install­a­tion duct
    • T-piece for install­a­tion duct
    • Flat angle for install­a­tion duct
    • M7248

      Cable retainer, LF/LFP B=90mm
      0.00 €  / *
    • M2026

      partition LF H60
      0.00 €  / *
    • LFF6009067030

      endcap halogen free for trunking LF/LFF (40, 60)x90mm stone grey
      0.00 €  / *
    • LFF6009037030

      external corner halogen free for trunking LF/LFF 60x90mm stone grey
      0.00 €  / *
    • LFF6009047030

      internal corner halogen free for trunking LF/LFF 60x90mm stone grey
      0.00 €  / *
    • LF6009087030

      T-piece halogen free for trunking LF 60x90mm stone grey
      0.00 €  / *
    • LFF6009057030

      flat angle overlapping halogen free for LF/LFF 60x90mm stone grey
      0.00 €  / *

    Technical properties

    Dimen­sions
    • Height
      60 mm
    • Width
      90 mm
    • Length
      2000 mm
    • Inner cross-sec­tion
      4550 - 4550 mm²
    Capa­city
    • Max. number of cables (Ø11mm, 50% filled, without devices)
      23
    Mater­ials
    • Material
      Polyvinyl­chloride (PVC)
    • Treat­ment
      Untreated
    • RAL code
      7030
    • Colour
      Stone grey
    Safety
    • Impact resist­ance IK
      IK07
    • Ingress Protec­tion (IP) class
      IP40
    Stand­ards
    • Suit­able for func­tional integ­rity according to DIN4102-12
      No
    Use condi­tions
    • Oper­ating temper­ature
      -5 - 60 °C
    Connectivity
    • Trunking coup­ling
      Pre-equipped with couplers
    Equip­ment
    • Number of parti­tions
      0
    • Number of compart­ments
      1 - 1
    • Number of plug­gable parti­tions
      1
    • Cable retaining clip included
      Yes
    • With protective film
      No

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    PEP - Distribution trunking - series LFF (english)
    PDF
    383,26 kB
    Hager REACH declaration LFF6009007030
    PDF
    Hager RoHS report LFF6009007030
    PDF

    Downloads

    • Image LFF6009007030 | Hager Africa

      Product Image LFF6009007030

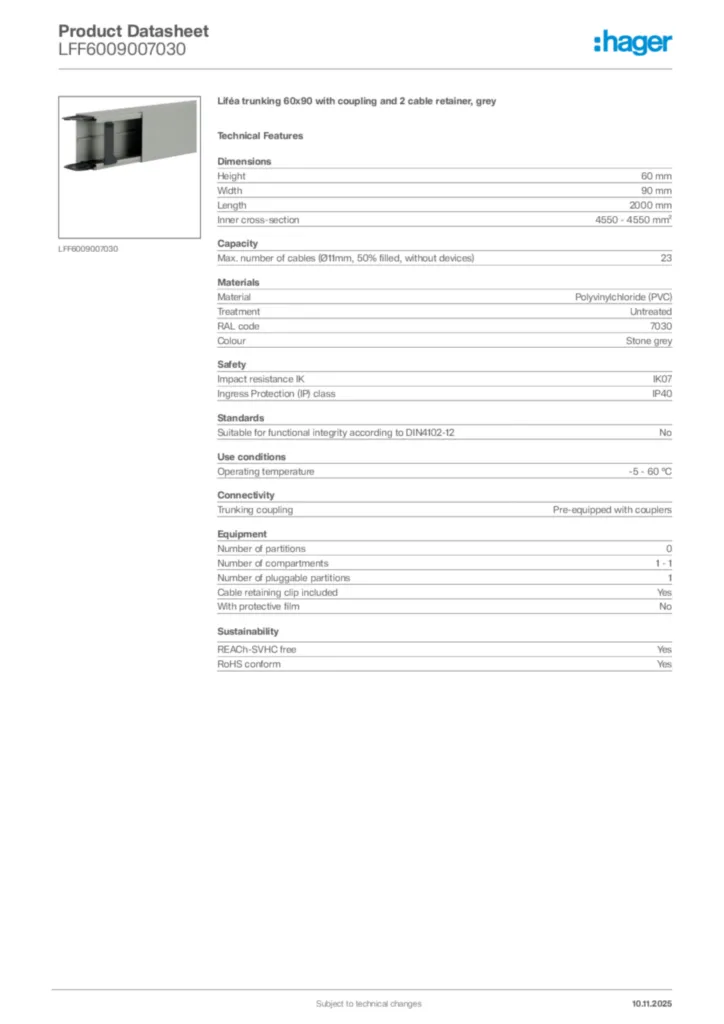

    • Product datasheet

      Image undefined | Hager Africa

      undefined

      PDF

    • Product licence

      Image Product_Licence_NF004_1074_LFF | Hager Africa

      Product_Licence_NF004_1074_LFF

      Product licence International 2021-02-12

      PDF
      1,52 MB

    • Declaration of conformity

      Image EU-Declaration LFF T045A FR_EN 26072019 | Hager Africa

      EU-Declaration LFF T045A FR_EN 26072019

      Declaration of conformity International 2020-06-25

      PDF
      48,04 kB
