The Hager external corner, halogen-free, for LF/LFF 60x90 trunking (stone grey RAL7030) ensures a neat, safe corner transition. Adjustable 83-97° for imperfect walls, with overlapping design for a clean finish. Click mounting enables quick installation. ABS construction, IK07 impact resistance, -5 to 60°C operation. Dimensions 60x90 mm (a=48 mm). Ideal for tidy cable management in residential and commercial installs.
EAN
4012740022781
Packaging
1 Piece
External corner halogen-free for trunking LF/LFF 40x90 click mounting LFF6009037030
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Dimensions
-
Height60 mm
-
Width90 mm
-
Measurement a48 mm
Accessories
-
Type of accessoryMoulded
Settings
-
Angle range83 - 97
Materials
-
MaterialAcrylonitrile-Butadiene-Styrene (ABS)
-
TreatmentUntreated
-
ColourStone grey
-
RAL code7030
Safety
-
Impact resistance IKIK07
Standards
-
Suitable for functional integrity according to DIN4102-12No
Use conditions
-
Operating temperature-5 - 60 °C
Equipment
-
With protective filmNo
Configuration
-
OverlappingYes
Connectivity
-
Mounting typeClick mounting
-
Related SeriesLFF 60x90
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

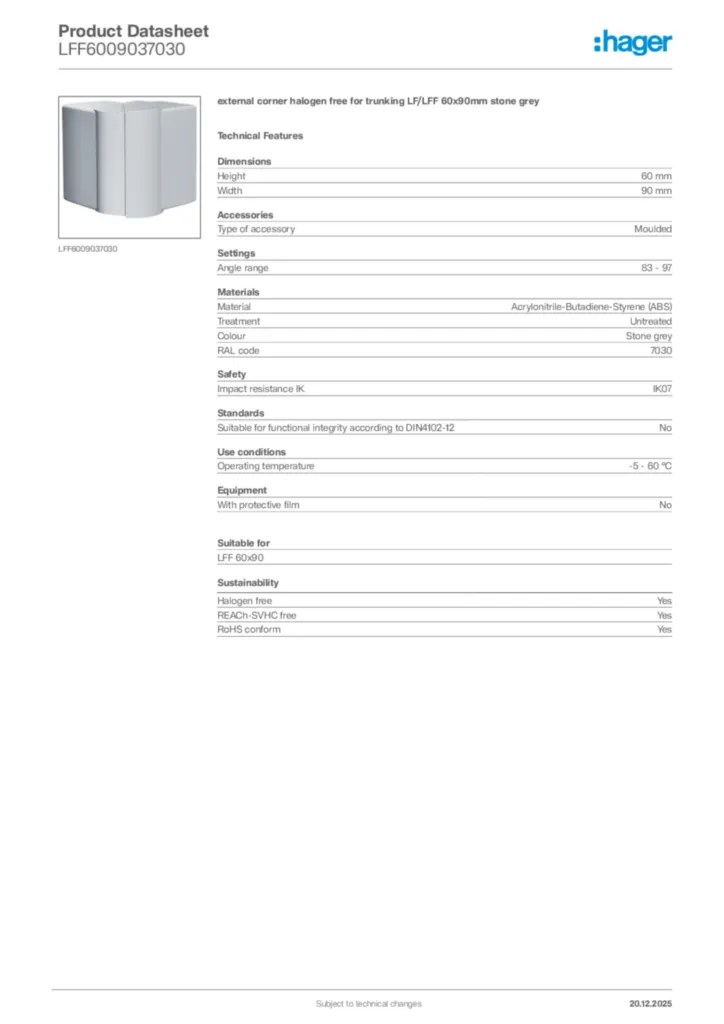

Product datasheet
Hager Product data sheet LFF6009037030
external corner halogen free for trunking LF/LFF 60x90mm stone grey
PDF -
Product licence
Product_Licence_NF004_1074_LFF
Product licence International 2021-02-12
PDF1,52 MB -
Declaration of conformity
Declaration of conformity en-GB 2026-08-07
PDF455,72 kB
Declaration of conformity en-GB 2026-08-07
PDF334,89 kB
EU-Declaration LFF T045A FR_EN 26072019
Declaration of conformity International 2020-06-25
PDF48,04 kB
T062B_EU-Declaration-of-conformity_DE-EN_LF-LFE
Declaration of conformity International 2023-02-07
PDF52,28 kB
