The Hager flat angle, overlapping, halogen-free fitting for LF/LFF 60x90 trunking in stone grey (RAL7030) enables neat 83-97° direction changes while maintaining cover overlap for a clean, secure finish. Moulded ABS with IK07 impact resistance, 60x90 mm profile, 128 mm leg, -5 to 60°C rating. Ideal for reliable cable routing in residential and commercial installations.

EAN

4012740022828

Packaging

1 Piece

External corner halogen-free 40x57mm for trunking Click mounting IK07 LFF6009057030

Technical properties
Environmental value
Documentations
More products

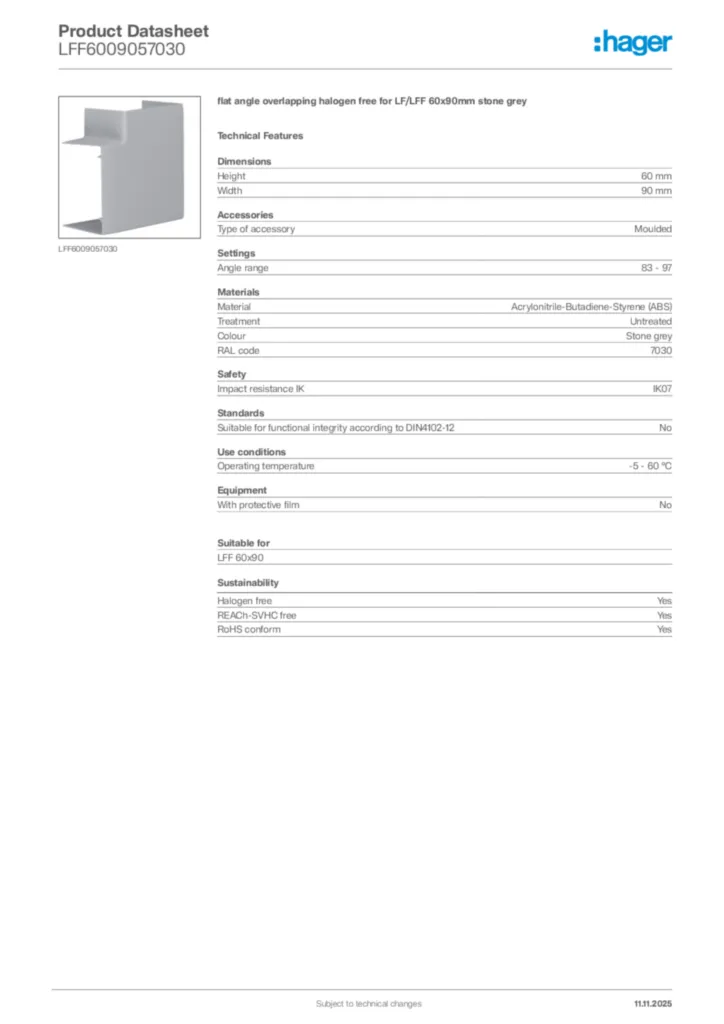

Download the data sheet

Technical properties

Height

60 mm
Width

90 mm
Measurement a

128 mm

Type of accessory

Moulded

Angle range

83 - 97

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Stone grey
RAL code

7030

Impact resistance IK

IK07

Suitable for functional integrity according to DIN4102-12

No

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

Yes
With antibacterial treatment

No

Symmetrical

Yes

Related Series

LFF 60x90

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
