Liféa trunking 60x57 with coupling and 2 cable retainer, grey LFF6006007030

EAN
4012740852623
Packaging
16 Meters

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Liféa trunking 60x57 with coupling and 2 cable retainer, grey

LFF6006007030

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • Cable clip/re­tainer for install­a­tion duct 1 products available
  • T-piece for install­a­tion duct 1 products available
  • End piece for install­a­tion duct 1 products available
  • External corner for install­a­tion duct 1 products available
  • Flat angle for install­a­tion duct 1 products available
  • Internal corner for install­a­tion duct 1 products available

Complete your system

  • Cable clip/re­tainer for install­a­tion duct
  • T-piece for install­a­tion duct
  • End piece for install­a­tion duct
  • External corner for install­a­tion duct
  • Flat angle for install­a­tion duct
  • Internal corner for install­a­tion duct
  • M7239

    Cable retainer, LF/LFP B=60mm
    0.00 €  / *
  • LF6006087030

    T-piece halogen free for trunking LF 60x57mm stone grey
    0.00 €  / *
  • LFF6006067030

    endcap halogen free for trunking LF/LFF (30, 40, 60)x60mm stone grey
    0.00 €  / *
  • LFF6006037030

    external corner halogen free for trunking LF/LFF 60x57mm stone grey
    0.00 €  / *
  • LFF6006057030

    flat angle overlapping halogen free for trunking LF/LFF 60x57mm stone grey
    0.00 €  / *
  • LFF6006047030

    internal corner halogen free for trunking LF/LFF 60x57mm stone grey
    0.00 €  / *

Technical properties

Dimen­sions
  • Height
    60 mm
  • Width
    57 mm
  • Length
    2000 mm
  • Inner cross-sec­tion
    2860 - 2860 mm²
Capa­city
  • Max. number of cables (Ø11mm, 50% filled, without devices)
    15
Mater­ials
  • Material
    Polyvinyl­chloride (PVC)
  • Treat­ment
    Untreated
  • RAL code
    7030
  • Colour
    Stone grey
Safety
  • Impact resist­ance IK
    IK07
  • Ingress Protec­tion (IP) class
    IP40
Stand­ards
  • Suit­able for func­tional integ­rity according to DIN4102-12
    No
Use condi­tions
  • Oper­ating temper­ature
    -5 - 60 °C
Connectivity
  • Trunking coup­ling
    Pre-equipped with couplers
Equip­ment
  • Number of parti­tions
    0
  • Number of plug­gable parti­tions
    0
  • Cable retaining clip included
    Yes
  • With protective film
    No

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
REACh-SVHC free Yes

Certifications and documents

PEP - Distribution trunking - series LFF (english)
PDF
383,26 kB
Hager REACH declaration LFF6006007030
PDF
Hager RoHS report LFF6006007030
PDF

Downloads

  • Image LFF6006007030 | Hager Africa

    Product Image LFF6006007030

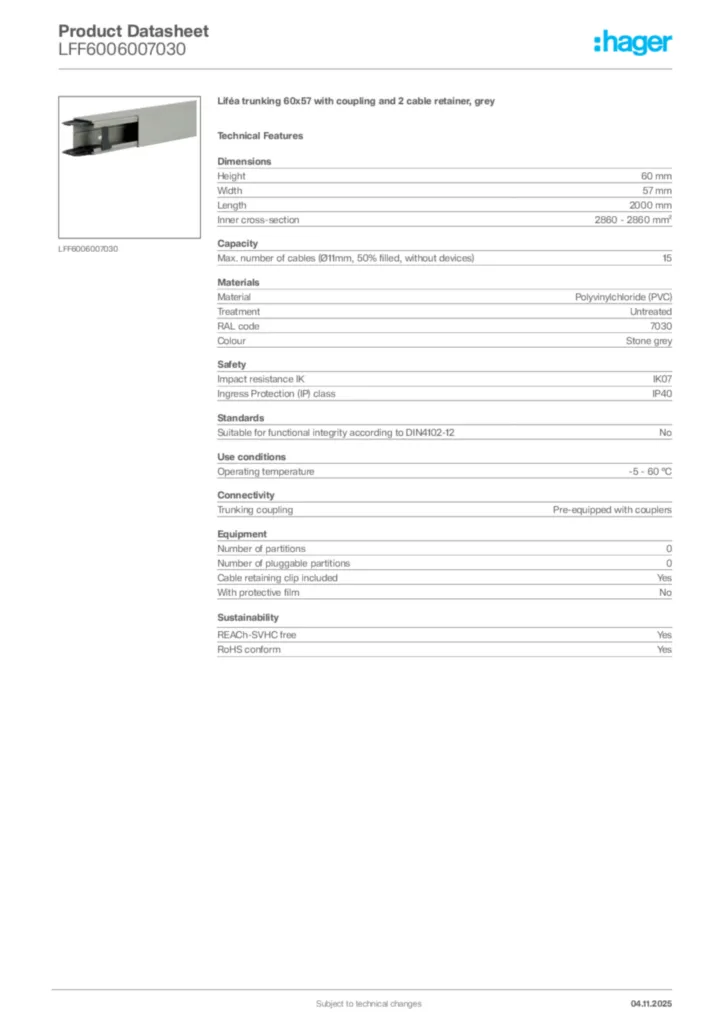

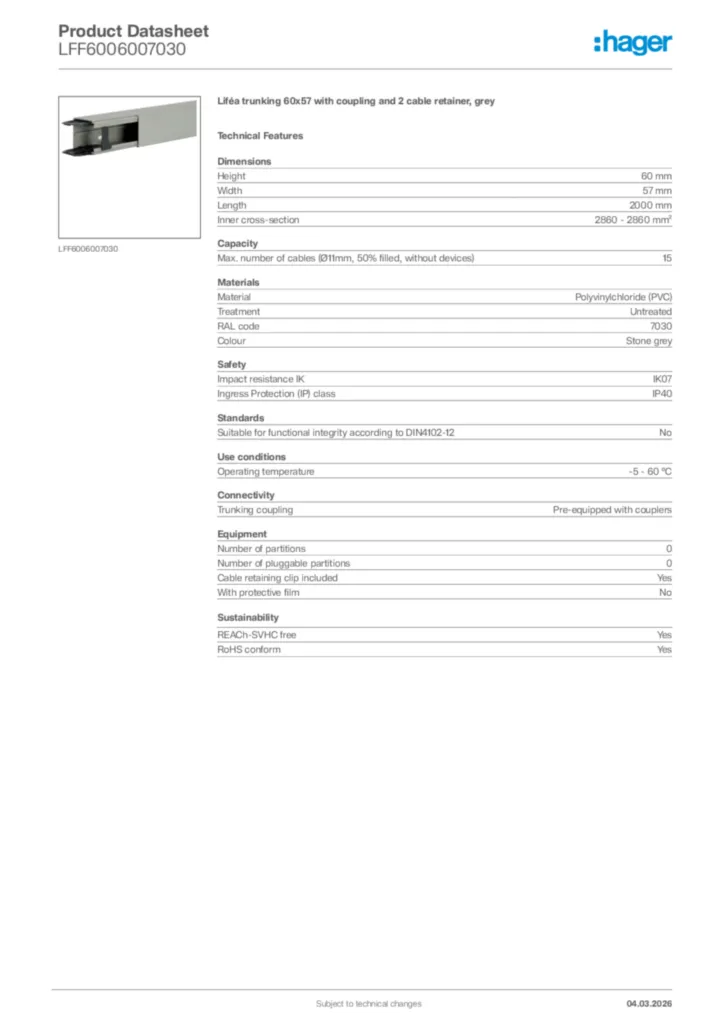

  • Product datasheet

    Image undefined | Hager Africa

    undefined

    PDF

  • Product licence

    Image Product_Licence_NF004_1074_LFF | Hager Africa

    Product_Licence_NF004_1074_LFF

    Product licence International 2021-02-12

    PDF
    1,52 MB

  • Declaration of conformity

    Image EU-Declaration LFF T045A FR_EN 26072019 | Hager Africa

    EU-Declaration LFF T045A FR_EN 26072019

    Declaration of conformity International 2020-06-25

    PDF
    48,04 kB
