The Hager flat angle overlapping halogen‑free accessory for LF/LFF 60x57 mm trunking delivers neat corner transitions with adjustable 83-97° alignment. Moulded ABS (IK07) offers robust, low‑smoke safety. Size 60x57 mm, A=95 mm. Stone grey RAL7030 for discreet finishes. Operating −5 to 60 °C. Ideal for clean, reliable cable routing in residential and commercial installations.

EAN

4012740022729

Packaging

1 Piece

Flat angle overlapping halogen-free trunking LF/LFF 40x90mm Stone Grey IK07 LFF6006057030

Technical properties
Environmental value
Documentations
More products

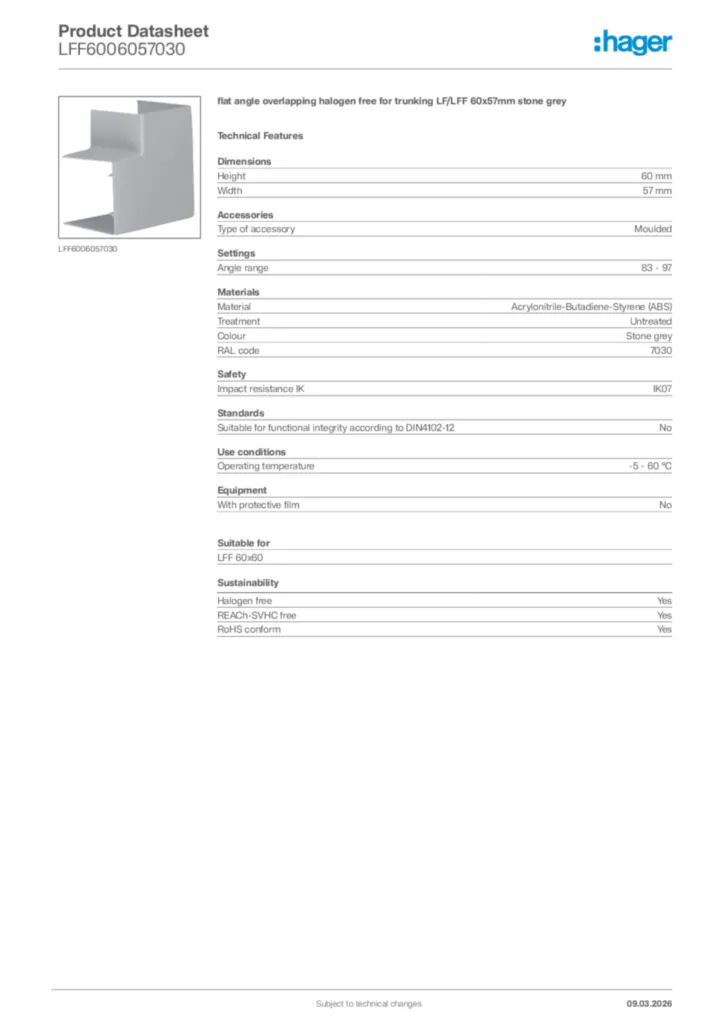

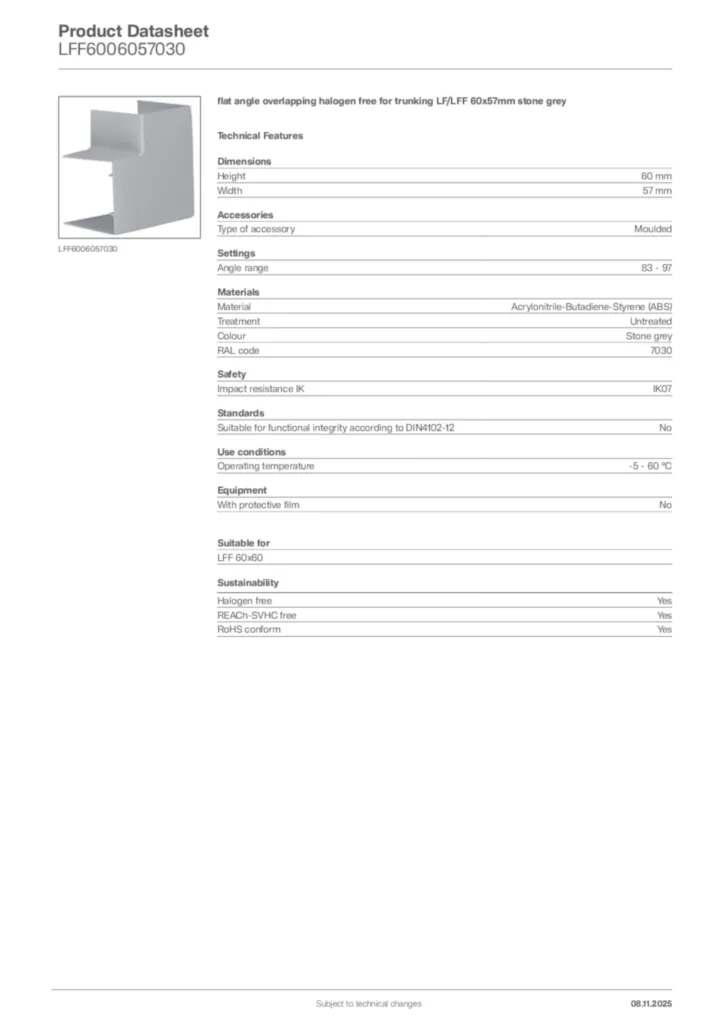

Download the data sheet

Technical properties

Height

60 mm
Width

57 mm
Measurement a

95 mm

Type of accessory

Moulded

Angle range

83 - 97

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Stone grey
RAL code

7030

Impact resistance IK

IK07

Suitable for functional integrity according to DIN4102-12

No

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

Yes
With antibacterial treatment

No

Symmetrical

Yes

Related Series

LFF 60x60

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
