The Hager halogen‑free internal corner for LF/LFF 60x57mm trunking in stone grey (RAL7030) delivers a clean, safe inside bend with an adjustable 83-97° angle. Moulded ABS with IK07 impact resistance and overlap design conceals cuts and protects conductors. Fast click mounting for rapid install. Dimensions 60×57mm, a=135mm. Operates -5 to 60°C—ideal for office and commercial cable routing.

EAN

4012740022705

Packaging

1 Piece

Internal corner LF/LFF/FB trunking 60x230 Halogen-free IK07 Stone grey RAL7030 LFF6006047030

Technical properties
Environmental value
Documentations
More products

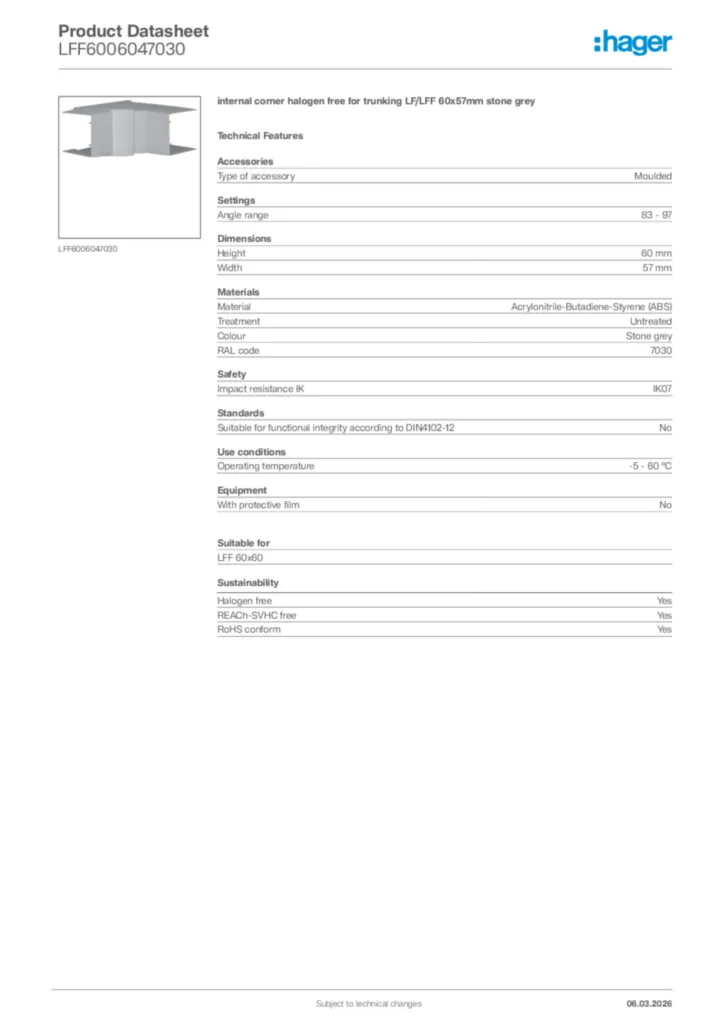

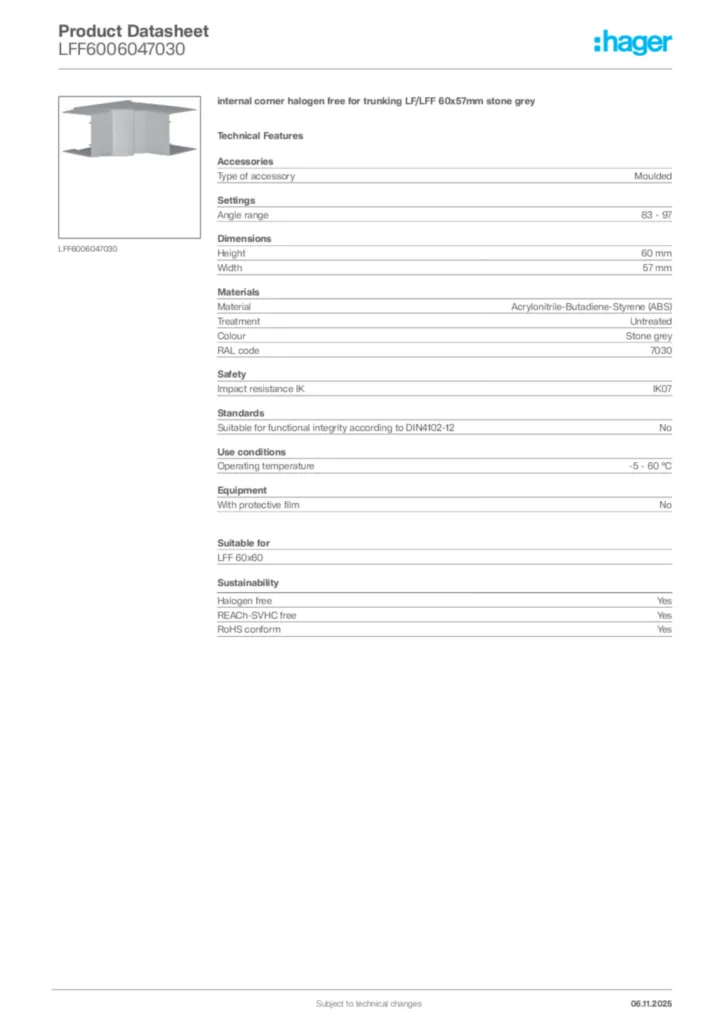

Download the data sheet

Technical properties

Type of accessory

Moulded

Angle range

83 - 97

Height

60 mm
Width

57 mm
Measurement a

135 mm

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Stone grey
RAL code

7030

Impact resistance IK

IK07

Suitable for functional integrity according to DIN4102-12

No

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

Yes

Mounting type

Click mounting

Related Series

LFF 60x60

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
