Liféa trunking 40x40 with coupling, grey LFF4004007030
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
End piece for installation duct 1 products available -
External corner for installation duct 1 products available -
Flat angle for installation duct 1 products available -
Internal corner for installation duct 1 products available -
T-piece for installation duct 1 products available
Complete your system
Technical properties
Dimensions
-
Height40 mm
-
Width40 mm
-
Length2000 mm
-
Inner cross-section1200 - 1200 mm²
Capacity
-
Max. number of cables (Ø11mm, 50% filled, without devices)6
Materials
-
MaterialPolyvinylchloride (PVC)
-
TreatmentUntreated
-
RAL code7030
-
ColourStone grey
Safety
-
Impact resistance IKIK07
-
Ingress Protection (IP) classIP40
Standards
-
Suitable for functional integrity according to DIN4102-12No
Use conditions
-
Operating temperature-5 - 60 °C
Connectivity
-
Trunking couplingPre-equipped with couplers
Equipment
-
Number of partitions0
-
Number of pluggable partitions0
-
Cable retaining clip includedNo
-
With protective filmNo
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

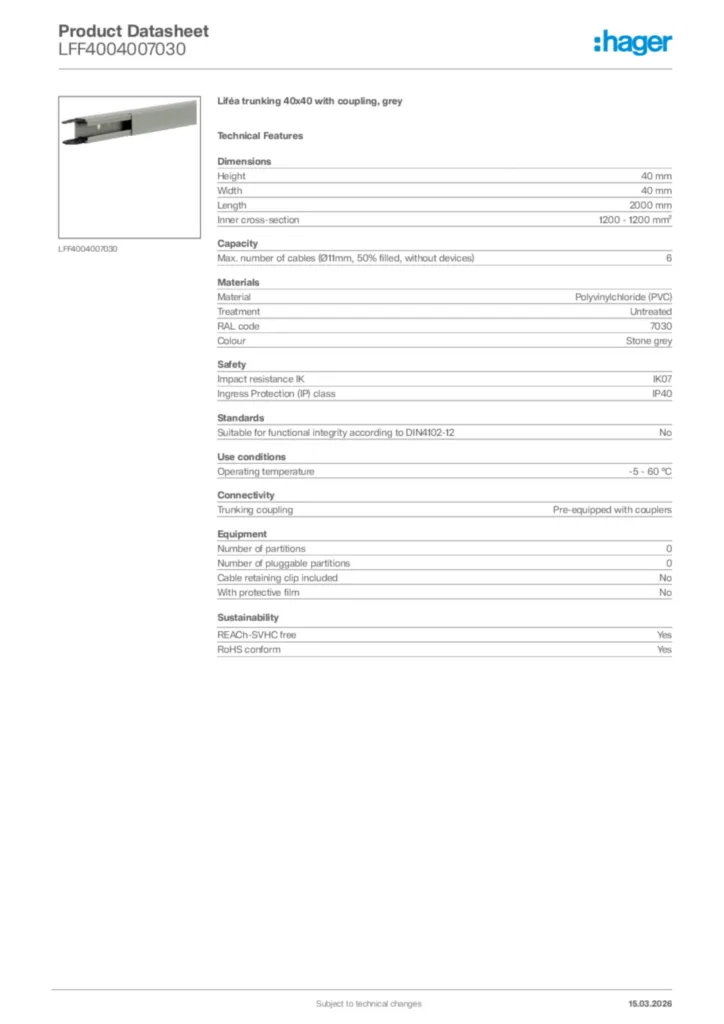

Product datasheet
Hager Product data sheet LFF4004007030
Liféa trunking 40x40 with coupling, grey
PDF -
Product licence
Product_Licence_NF004_1074_LFF
Product licence International 2021-02-12
PDF1,52 MB -
Declaration of conformity
EU-Declaration LFF T045A FR_EN 26072019
Declaration of conformity International 2020-06-25
PDF48,04 kB
