The Hager external corner for LF 40x40 trunking provides a clean 90° outside bend with halogen‑free safety. Moulded ABS (IK07) in stone grey RAL7030, 40x40 mm with 45 mm projection, it withstands -5 to 60°C. Ideal for neat, continuous cable routing in residential and commercial installs, ensuring protected transitions and a consistent finish across the LFF 40x40 series.

EAN

4012740021371

Packaging

1 Piece

Halogen-free end cap for LF/LFF trunking 40/60x90 IK07 Stone Grey RAL7030 LF4004037030

Technical properties
Environmental value
Documentations
More products

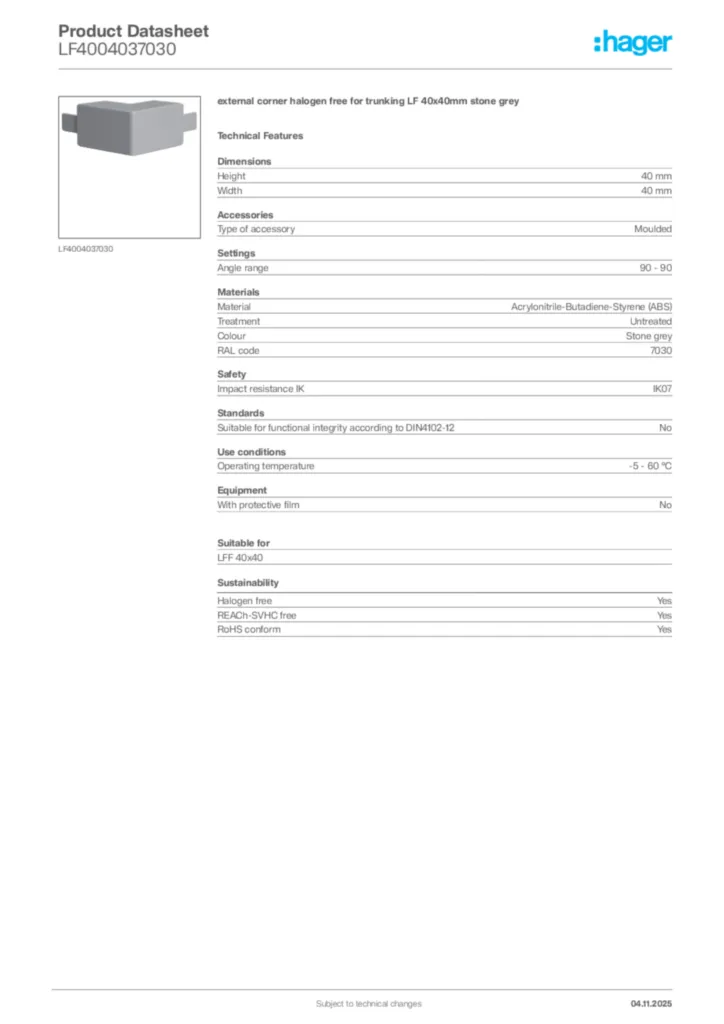

Download the data sheet

Technical properties

Height

40 mm
Width

40 mm
Measurement a

45 mm

Type of accessory

Moulded

Angle range

90 - 90

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Stone grey
RAL code

7030

Impact resistance IK

IK07

Suitable for functional integrity according to DIN4102-12

No

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

No

Related Series

LFF 40x40

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
