The Hager halogen-free T-piece for LF 40x40 mm trunking enables clean, safe T-junctions in cable routes. Made of robust ABS (IK07) in stone grey RAL7030, it withstands -5 to 60°C. Molded for a precise fit with LFF 40x40 series, it helps reduce toxic emissions in case of fire and maintains a neat, professional finish in residential and commercial installations. Measurement a: 170 mm.

EAN

4012740021494

Packaging

1 Piece

Cable trunking systems - LF

Flat angle Overlapping Halogen-free for trunking LF 40x57 Stone grey RAL7030 LF4004087030

Technical properties
Environmental value
Documentations
More products

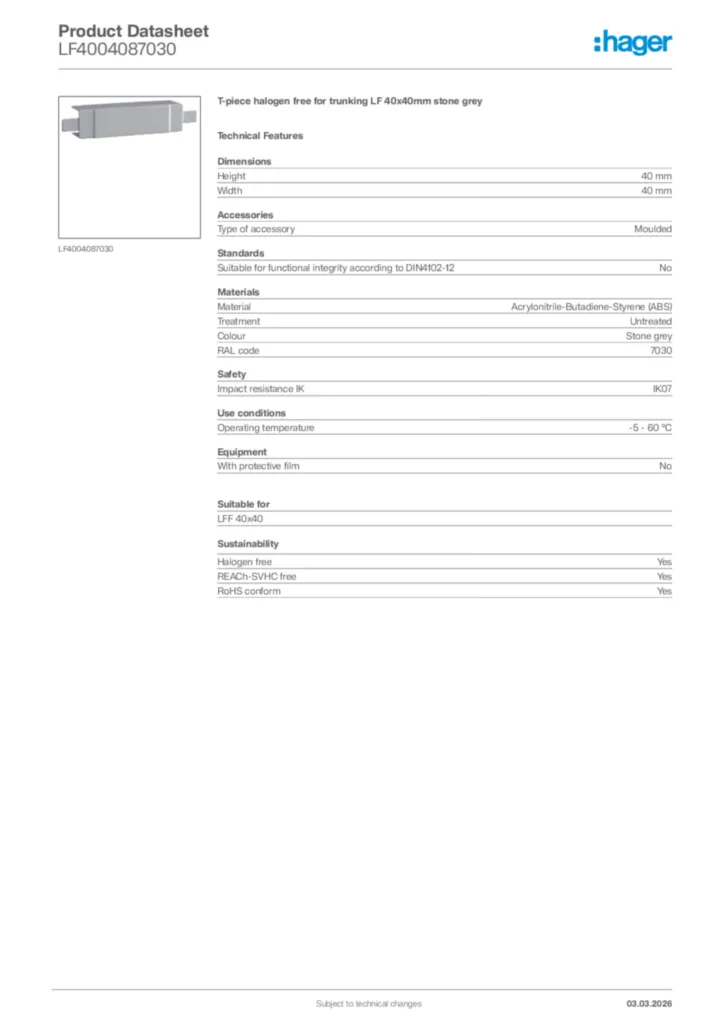

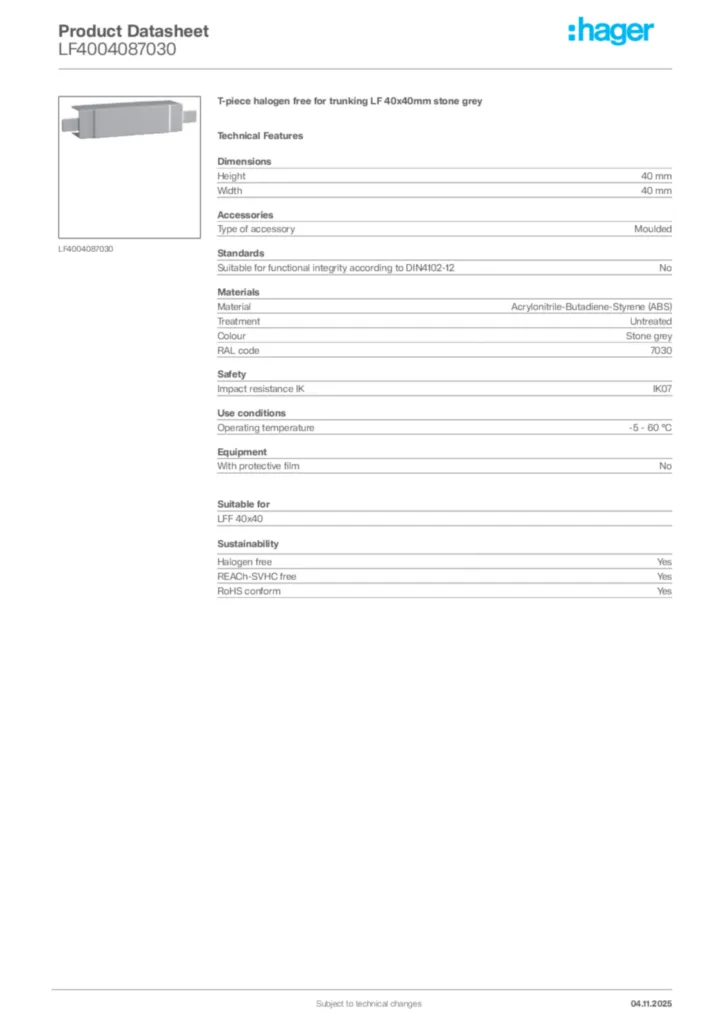

Download the data sheet

Technical properties

Height

40 mm
Width

40 mm
Measurement a

170 mm

Type of accessory

Moulded

Suitable for functional integrity according to DIN4102-12

No

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Stone grey
RAL code

7030

Impact resistance IK

IK07

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

No
With antibacterial treatment

No

Related Series

LFF 40x40

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
