The Hager insulated busbar for 2 motor starters enables quick, safe distribution across two 3‑pole starters. Rated 63A at 230-400V with 4.5kV impulse withstand, it uses a 10 mm² fork phase busbar for secure connections. Compact 88 mm (5 modules), it streamlines wiring, saves space, and ensures reliable operation from −25 to 55°C in motor control panels.
EAN
3250613740429
Packaging
10
Insulated fork busbar 3 motor starters 3P 63A 10mm² 230-400V KD302M
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Electric current
-
Rated current IN63 A
Architecture
-
Number of poles3
Dimensions
-
Length88 mm
Voltage
-
Rated impulse withstand voltage Uimp4500 V
-
Rated operational voltage Ue230 - 400 V
Connection
-
Cross-section rigid conductor10 mm²
-
Connector/plug typePhase busbar with fork
Use conditions
-
Operating temperature-25 - 55 °C
Capacity
-
Number of modules5
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

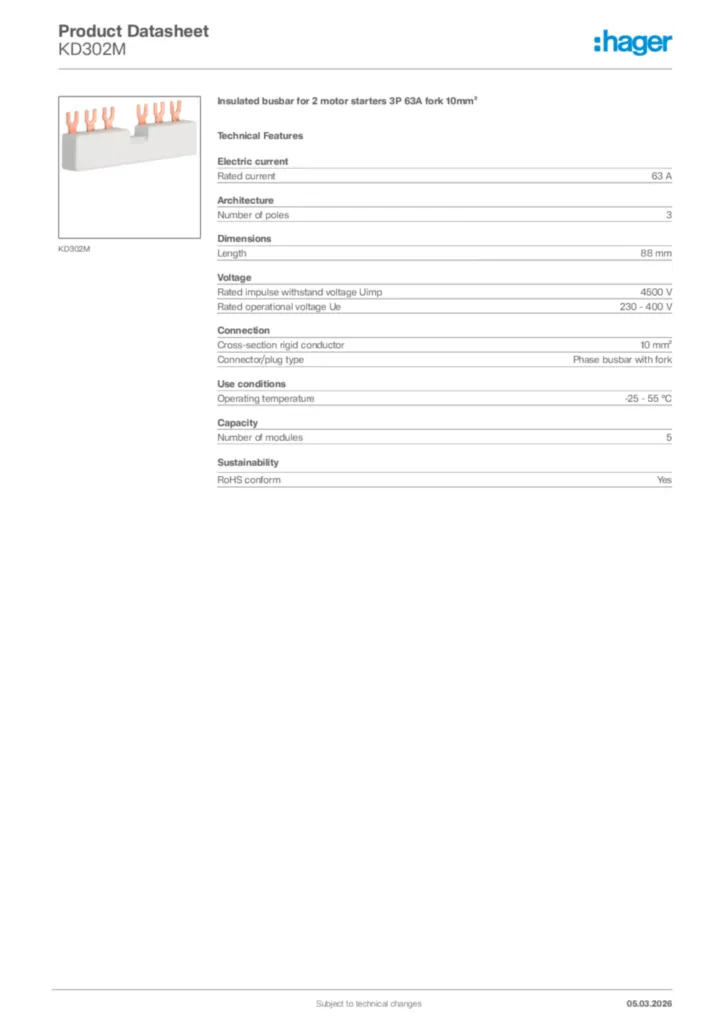

Hager Product data sheet KD302M
Insulated busbar for 2 motor starters 3P 63A fork 10mm²
PDF -
Declaration of conformity
Declaration of conformity International 2026-08-04
PDF321,62 kB
Declaration of conformity en-GB 2026-01-12
PDF364,15 kB
Declaration of conformity en-GB 2026-01-12
PDF386,96 kB
More documentation
