The Hager insulated 3P prong busbar 63A (24 modules) streamlines safe three‑phase distribution. Rated 230-400 V with 4 kV impulse withstand, it accepts rigid 10 mm² conductors via pin phase design. At 420 mm length, it feeds up to 24 modules, enabling quick, reliable, and tidy linking of breakers in residential and light commercial panels.
EAN
3250613720124
VPE
10 pieces
Insulated busbar 3P+N 80A Pin 16mm² 57 Modules 1m 230-400V 4kV Uimp KB363C
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Protective cap/strip for phase busbar 1 product.page.accessories.products-available
Technical characteristics
Electric current
-
Rated current IN63 A
Architecture
-
Number of poles3
Dimensions
-
Length420 mm
Voltage
-
Rated impulse withstand voltage Uimp4000 V
-
Rated operational voltage Ue230 - 400 V
Connection
-
Cross-section rigid conductor10 mm²
-
Connector/plug typePhase busbar with pin
Capacity
-
Number of modules24
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

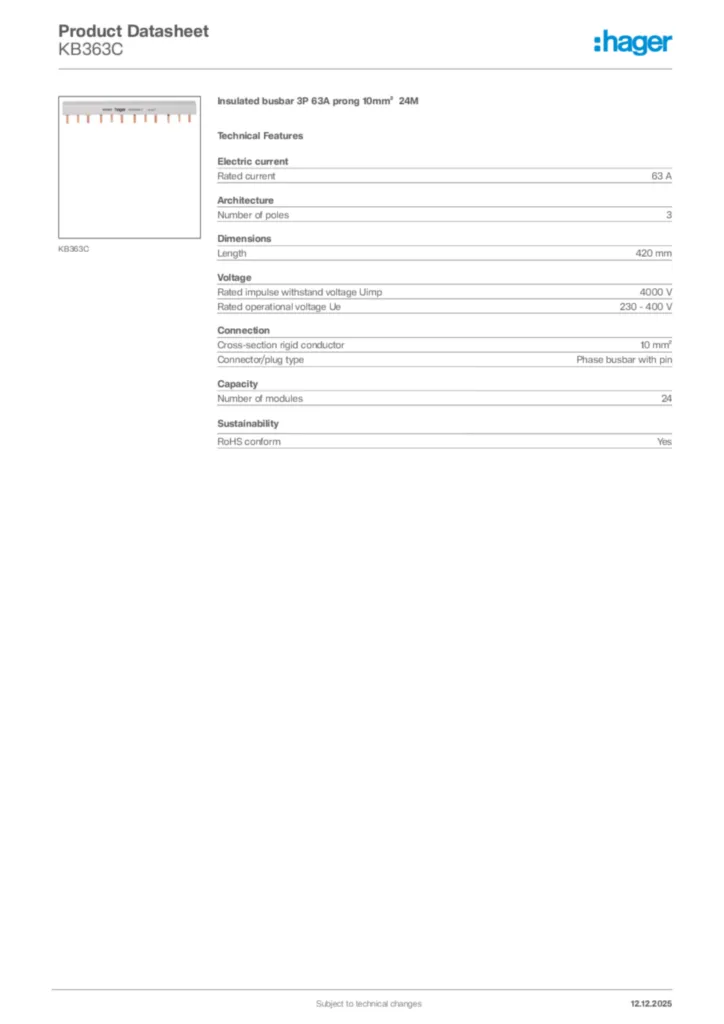

Hager Product data sheet KB363C
Insulated busbar 3P 63A prong 10mm² 24M
