The Hager h3+ P160 Energy 4P4D MCCB, 40A, 4-pole with left neutral, protects three-phase systems in commercial/industrial switchboards. Breaking capacity: 50 kA at 400/415 V (65 kA at 240 V). Ue 220-690 V, Ui 800 V, Uimp 8 kV. Adjustable long-time, short-time (1.5-10x In, 50-400 ms) and instantaneous (3-15x In) protection. IP4X, fixed mount, screw terminals 6-95 mm² Cu, interlockable, 40k mech/10k elec ops.
EAN
3250613141301
VPE
1 piece
MCCB h3+ P160 Energy 3P 100A 50kA Icu 220-690V Ui 800V HMS041NC
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Auxiliaries cable adaptor 2 product.page.accessories.products-available -
Auxiliaries data cable adaptor 8 product.page.accessories.products-available -
Mechanic accessories for low-voltage components 1 product.page.accessories.products-available -
Phase separation functions 1 product.page.accessories.products-available -
Locking interlocking functions 5 product.page.accessories.products-available -
Door coupling handle 1 product.page.accessories.products-available
product.page.accessories.title-modal
-
HTC370H
CIP - Adaptor for h3+ length 10 m
-
HTC360HCIP - Adaptor for h3+ length 5 m
-
HTC350HCIP - Adaptor for h3+ length 3 m
-
HTC340HCIP - Adaptor for h3+ length 1, 5 m
-
HTC330HCIP - Adaptor for h3+ length 0, 5 m
-
HTC150HZSI - Adaptor for h3+ length 1, 20 m
-
HTC140HCIP - 24 V Adaptor length 1, 20 m
-
HTC130HOAC/PTA adaptor for h3+ length 1, 20 m
-
HYS328HL connection terminal Plug-in P160 1P
-
HYS015HSpread terminal extension P160 4P cage version
-
HYS013HStraight terminal extension P160 4P cage version
-
HYS006HCage terminal P160 cage version Al 4P 1x35-120mm²
-
HYS002HCage terminal P160 cage version Cu/Al 4P 1x 10-95mm²
-
HYS032HRear connection for P160 4P (16-50A)
-
HXA003HShunt trip 100-120V AC (x160-P160-x250-P250-x630-P630)
-
HXA005HShunt trip 380-450V AC (x160-P160-x250-P250-x630-P630)
-
HXA002HShunt trip 48V DC (x160-P160-x250-P250-x630-P630)
-
HXA001HShunt trip 24V DC (x160-P160-x250-P250-x630-P630)
-
HXA004HShunt trip 200-240V AC (x160-P160-x250-P250-x630-P630)
-
HXA055HUVR delayed 380-450V AC (x160-P160-x250-P250)
-
HXA011HUndervoltage release 24V DC (x160-P160-x250-P250-x630-P630)
-
HXA051HUVR delayed 24V DC (x160-P160-x250-P250-x630-P630)
-
HXA015HUndervoltage release 380-450V AC (x160-P160-x250-P250-x630-P630)
-
HXA014HUndervoltage release 200-240V AC (x160-P160-x250-P250-x630-P630)
-
HXA054HUVR delayed 220-240V AC (x160-P160-x250-P250-x630-P630)
-
HXA053HUVR delayed 110-120V AC (x160-P160-x250-P250-x630-P630)
-
HXA013HUndervoltage release 100-120V AC (x160-P160-x250-P250-x630-P630)
-
HYS053HEarth plate for Spread terminal extension P160 4P
-
HYS051HEarth plate for Straight terminal extension P160 4P
-
HYS026HTerminal cover for Rear & Plug-in connection P160 4P
-
HYS024HTerminal cover for Spread terminal extension P160 4P
-
HYS022HTerminal cover for Straight terminal extension P160 4P
-
HYS322HTerminal cover for Plug-in base P160 4P
Technical characteristics
Electric current
-
Rated current IN40 A
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-250 kA
-
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-265 kA
-
Rated ultimate short-circuit breaking capacity Icu under 415 V AC IEC 60947-250 kA
-
Rated ultimate short-circuit breaking capacity Icu under 690 V AC IEC 60947-26 kA
-
Rated service breaking capacity Ics under 220 V AC according to IEC 60947-265 kA
-
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-265 kA
-
Rated service breaking capacity Ics under 240 V AC according to IEC 60947-265 kA
-
Rated service breaking capacity Ics under 380 V AC according to IEC 60947-250 kA
-
Rated service breaking capacity Ics under 400 V AC according to IEC 60947-250 kA
-
Rated service breaking capacity Ics under 415 V AC according to IEC 60947-250 kA
-
Rated service breaking capacity Ics under 690 V AC according to IEC 60947-26 kA
-
Rated current at 10°C according to IEC 6094740 A
-
Rated current at 15°C according to IEC 6094740 A
-
Rated current at 20°C according to IEC 6094740 A
-
Rated current at 25°C according to IEC 6094740 A
-
Rated current at 30°C according to IEC 6094740 A
-
Rated current at 35°C according to IEC 6094740 A
-
Rated current at 40°C according to IEC 6094740 A
-
Rated current at 45°C according to IEC 6094740 A
-
Rated current at 50°C according to IEC 6094740 A
-
Rated current at 55°C according to IEC 6094740 A
-
Rated current at 60°C according to IEC 6094740 A
-
Rated current at 65°C according to IEC 6094740 A
-
Rated current at 70°C according to IEC 6094740 A
Architecture
-
Number of poles4
-
Control/operation elementToggle
-
Device construction typeFixed built-in
-
Neutral positionLeft
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated impulse withstand voltage Uimp8000 V
-
Rated insulation voltage Ui800 V
-
Rated operational voltage Ue220 - 690 V
Functions
-
Trip unitENERGY
Power
-
Power dissipation at IN1.68 W
Endurance
-
Electric endurance in number of cycles10000
-
Number of mechanical operations40000
Installation, mounting
-
Nominal tightening torque6 - 6 Nm
-
Mounting-/Connection PositionFront
Safety
-
Ingress Protection (IP) classIP4X
Connection
-
Cross-section flexible conductor6 - 70 mm²
-
Cross-section rigid conductor6 - 95 mm²
Cover, door
-
InterlockableYes
Cable
-
Cable materialCopper
Compatibility
-
Compatible with RDC AOBNo
-
Suitable for DIN RailNo
-
Suitable for distribution boardYes
Data act compliance
-
Is generating dataYes
-
Data typesAlarms, Basic information, Device energy management, Electrical measurement, Detailed electrical measurement, General diagnostics, Network diagnostics, Operational state, Software diagnostics
-
Data formatsMODBUS (RTU)
-
Estimated daily data volume< 1 KB
-
Real time data generationYes
-
Data stored on deviceYes
Dimensions
-
Height130 mm
-
Width120 mm
-
Depth97 mm
Connectivity
-
Type of connectionScrew terminal
Settings
-
Adjustment range short-term delayed short-circuit release24 - 400 A
Electrical protection
-
Long-time overload protection (ltd): delay (tr)0.5 s, 1.5 s, 2.5 s, 5 s, 7.5 s, 9 s, 10 s, 12 s, 14 s, 16 s
-
Short-time protection (std): current (Isd)1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10
-
Short-time protection (std): delay (tsd)50 ms, 100 ms, 200 ms, 300 ms, 400 ms
-
Instantaneous protection (li): dial setting coefficient3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10, 10.5, 11, 11.5, 12, 12.5, 13, 13.5, 14, 14.5, 15
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

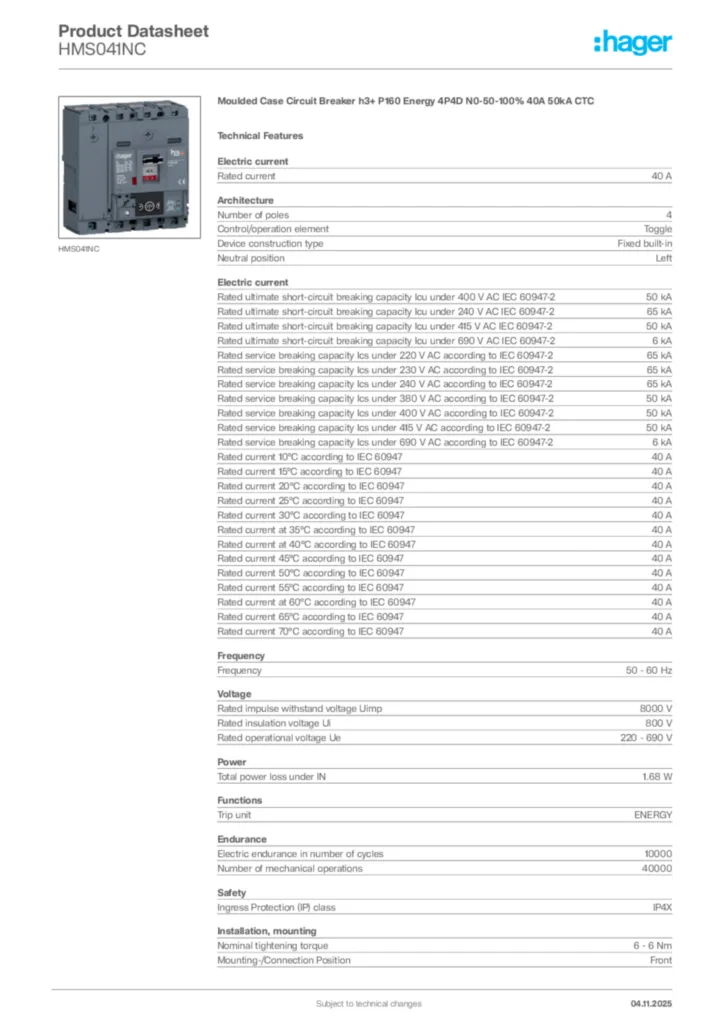

Hager Product data sheet HMS041NC
