The Hager motorized changeover switch 4P 160A 400V provides automatic source transfer for three-phase systems, ensuring continuity and safe isolation. Rated 160A, 380-415 V, 105 kW AC-1 at 400 V, with 40 kA Icc (gG fuses). Fixed built-in design, DIN rail or mounting plate, suitable for distribution boards. Ideal for mains to generator or backup switching in commercial and industrial setups.

EAN

3250613191269

Packaging

1 Piece

Automatic transfer switches up to 1600 A

Motorized changeover switch 4P 100A 400V 50kA AC1 65kW DIN rail/plate HIC416A

Accessories
Technical properties
Environmental value
Documentations
More products

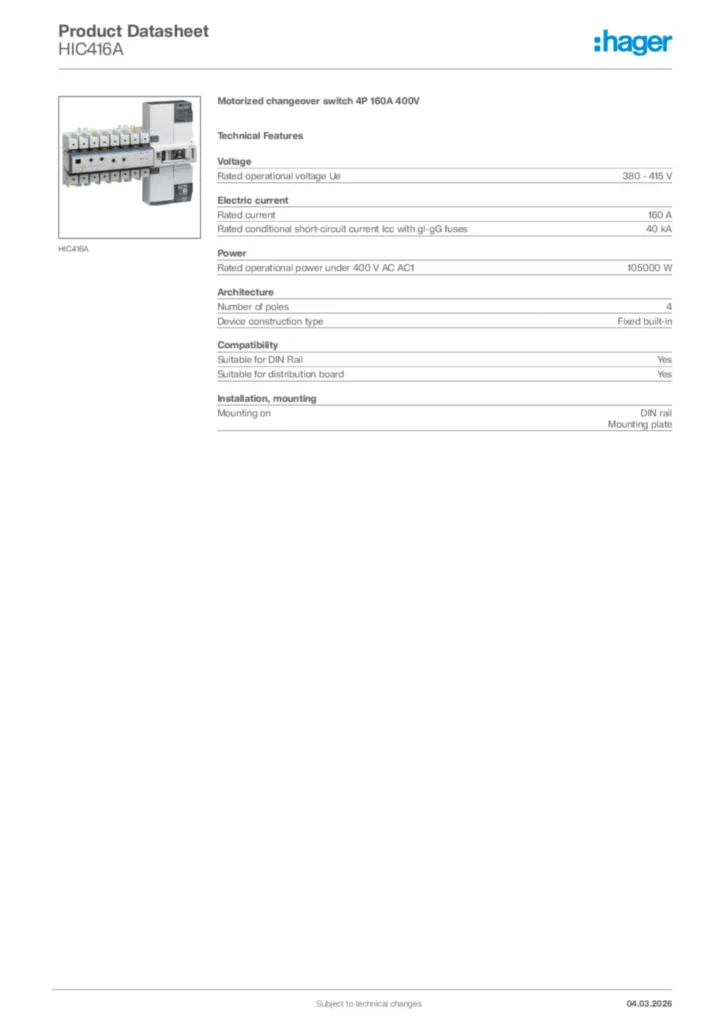

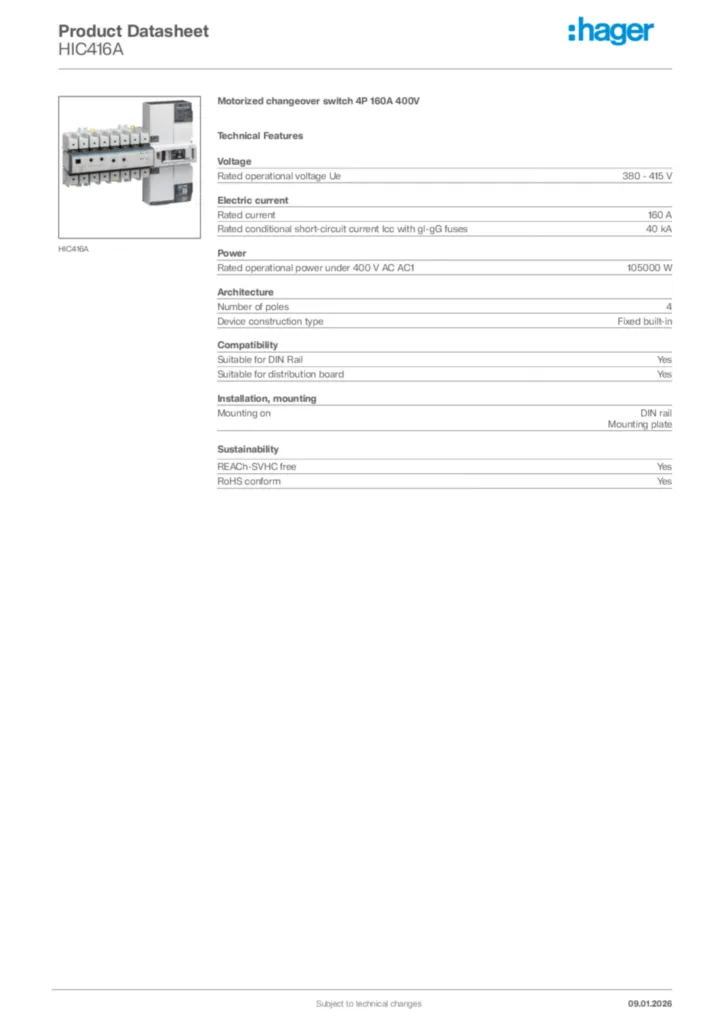

Download the data sheet

Complete your system

Accessories/spare parts for low-voltage switch technology 2 products available
Auxiliary contact block 2 products available
Terminal cover 2 products available

Technical properties

Rated operational voltage Ue

380 - 415 V

Rated current

160 A
Rated conditional short-circuit current Icc with gl-gG fuses

40 kA

Rated operational power under 400 V AC AC1

105000 W

Number of poles

4
Device construction type

Fixed built-in

Suitable for DIN Rail

Yes
Suitable for distribution board

Yes

Mounting on

DIN rail, Mounting plate

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
