    • HZI302
    The Hager Auxiliary Contact 1NO+1NC for 125-630 A devices enables reliable status signalling and control of breakers. Side-mounted with durable screw terminals, it provides one normally open and one normally closed contact to report ON/OFF or trip states to BMS, relays, or PLCs. Ideal for monitoring, interlocking, and safety functions in power distribution.
    EAN
    3250613114497
    Packaging
    1 Piece
    • Accessories Load break switches

    Gamma surface-mount enclosure 54M 3x18 63A IP30 IK05 Israel HZI302

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Gamma surface-mount enclosure 54M 3x18 63A IP30 IK05 Israel

    HZI302

    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Install­a­tion, mounting
    • Mount­ing-/­Con­nec­tion Posi­tion
      Side
    Connectivity
    • Type of connec­tion
      Screw terminal
    Connec­tion
    • Type of contacts
      1NC+1NO
    Dimen­sions
    • Height
      98 mm
    • Width
      104 mm
    • Depth
      36 mm

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    Certifications and documents

    REACH declaration HZI302
    PDF
    RoHS report HZI302
    PDF

    Downloads

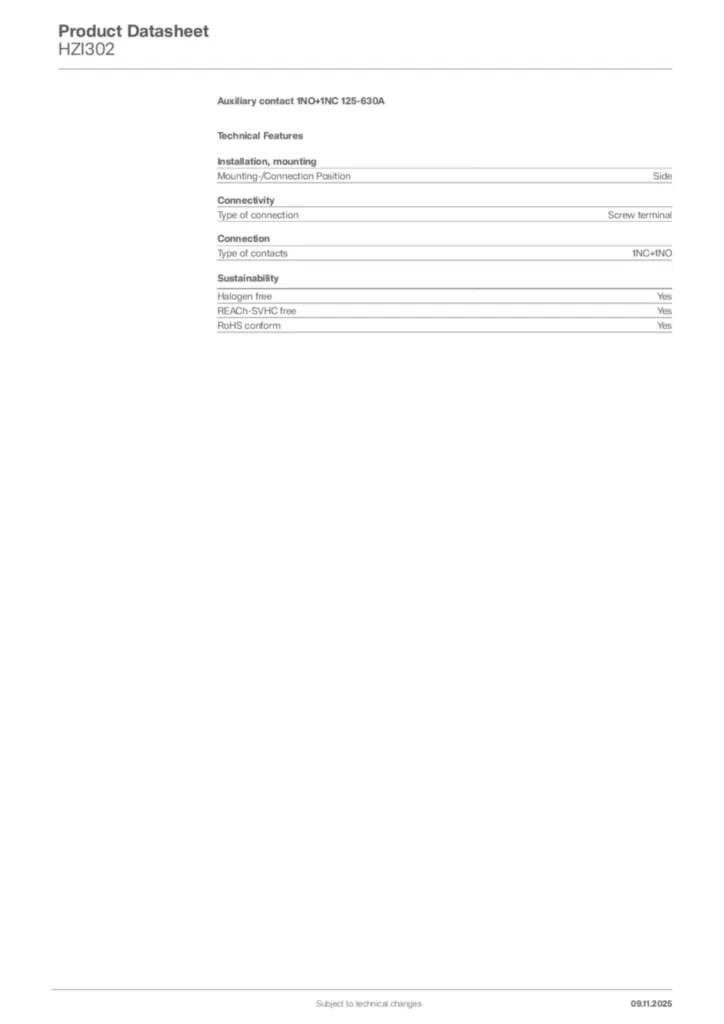

    • Image HZI302 | Hager Africa

      Product Image HZI302

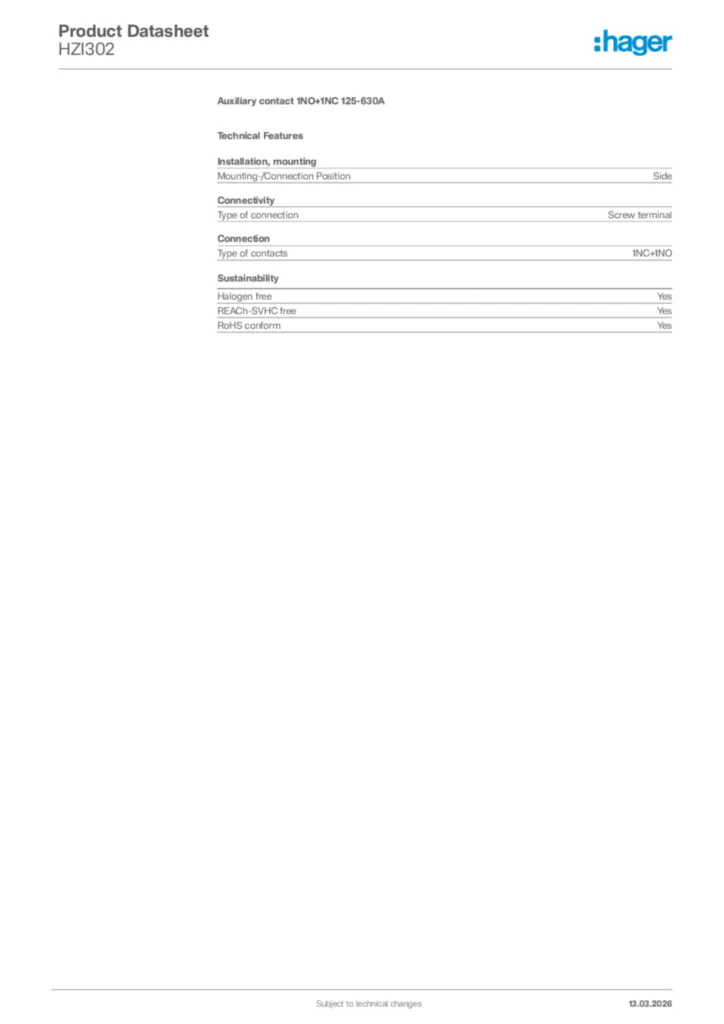

    • Product datasheet

      Image Hager Product data sheet HZI302 | Hager Africa

      Hager Product data sheet HZI302

      Auxiliary contact 1NO+1NC 125-630A

      PDF

    • Declaration of conformity

      Image Declaration | Hager Africa

      Declaration

      Declaration of conformity International 2022-04-13

      PDF
      573,94 kB
      Image Declaration of conformity en-US 2026-07-14 | Hager Africa

      Declaration of conformity en-US 2026-07-14

      PDF
      288,71 kB
