The Hager modular 125A 4P change-over switch ensures safe, reliable transfer between two power sources in commercial and industrial boards. Rated 380-690 V (Ui 800 V, Uimp 8 kV), it withstands Icw 2.5 kA and up to 50 kA with gG fuses. AC-1 82 kW at 400 V. Interlockable short rotary handle enhances safety; IP20. Fits 12.5 modules, 50-60 Hz, -20 to 70 °C. Accepts 4-50 mm² conductors.
EAN
3250613190095
Packaging
1 Piece
Change-over switch 4P 160A 100kA Icc long rotary handle Ui 800V 8.5 Modules HI406R
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Auxiliary contact block 1 products available -
Accessories/spare parts for low-voltage switch technology 1 products available -
Door coupling handle for switchgear 2 products available -
Switch operating shaft 2 products available

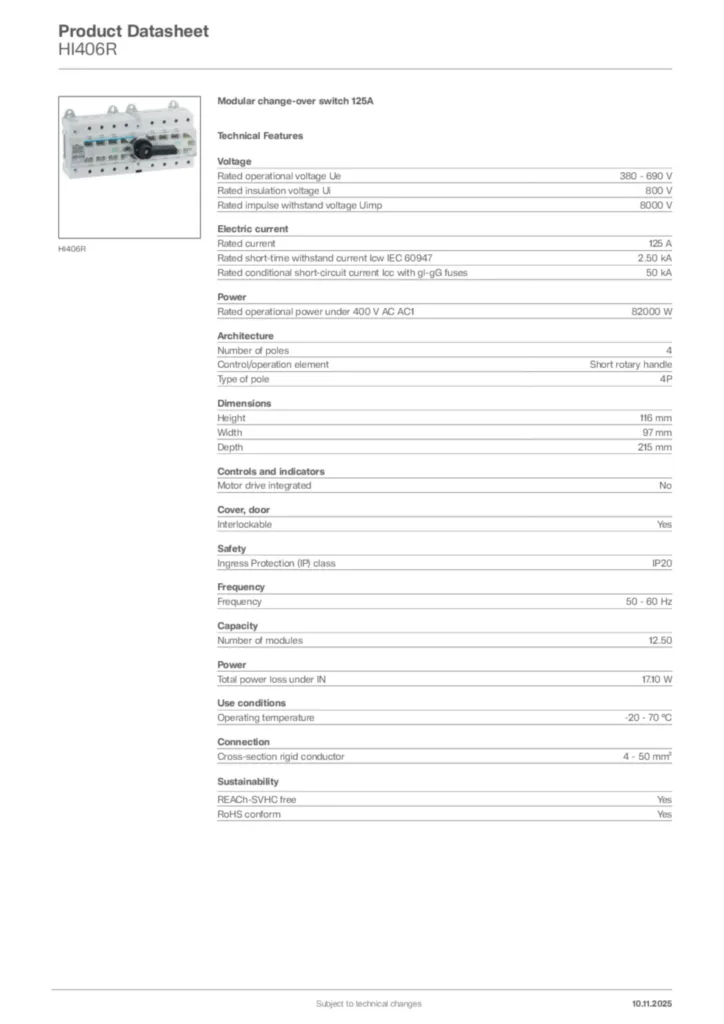

Technical properties
Voltage
-
Rated operational voltage Ue380 - 690 V
-
Rated insulation voltage Ui800 V
-
Rated impulse withstand voltage Uimp8000 V
Electric current
-
Rated current125 A
-
Rated short-time withstand current Icw IEC 609472.50 kA
-
Rated conditional short-circuit current Icc with gl-gG fuses50 kA
Power
-
Rated operational power under 400 V AC AC182000 W
-
Total power loss under IN17.10 W
Architecture
-
Number of poles4
-
Control/operation elementShort rotary handle
-
Type of pole4P
Dimensions
-
Height116 mm
-
Width97 mm
-
Depth215 mm
Controls and indicators
-
Motor drive integratedNo
Cover, door
-
InterlockableYes
Safety
-
Ingress Protection (IP) classIP20
Capacity
-
Number of modules12.50
Frequency
-
Frequency50 - 60 Hz
Use conditions
-
Operating temperature-20 - 70 °C
Connection
-
Cross-section rigid conductor4 - 50 mm²
