Change-over switch 4P 1600A HI464
EAN
3250613190200
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Terminal cover 1 products available -
Accessories/spare parts for low-voltage switch technology 2 products available -
Auxiliary contact block 1 products available -
Door coupling handle for switchgear 1 products available
Compatible products
-
Referenced by 1 products available
Technical properties
Voltage
-
Rated insulation voltage Ui1000 V
-
Rated impulse withstand voltage Uimp12000 V
Electric current
-
Rated current1600 A
-
Rated short-time withstand current Icw IEC 6094778 kA
-
Rated conditional short-circuit current Icc with gl-gG fuses100 kA
Power
-
Rated operational power under 400 V AC AC11053000 W
-
Total power loss under IN488 W
Architecture
-
Number of poles4
-
Control/operation elementLong rotary handle
-
Type of pole4P
Dimensions
-
Height288 mm
-
Width598 mm
-
Depth375 mm
Controls and indicators
-
Motor drive integratedNo
Cover, door
-
InterlockableYes
Safety
-
Ingress Protection (IP) classIP00
Frequency
-
Frequency50 - 60 Hz
Use conditions
-
Operating temperature-20 - 70 °C
Connection
-
Cross-section rigid conductor6x 185 mm²
Downloads
-

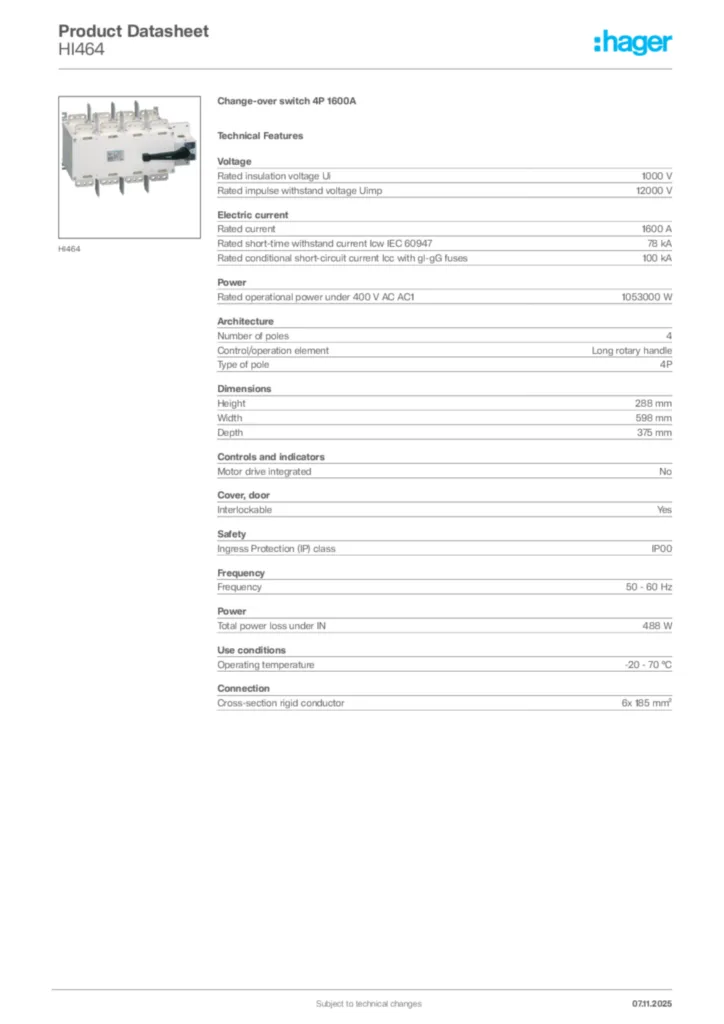

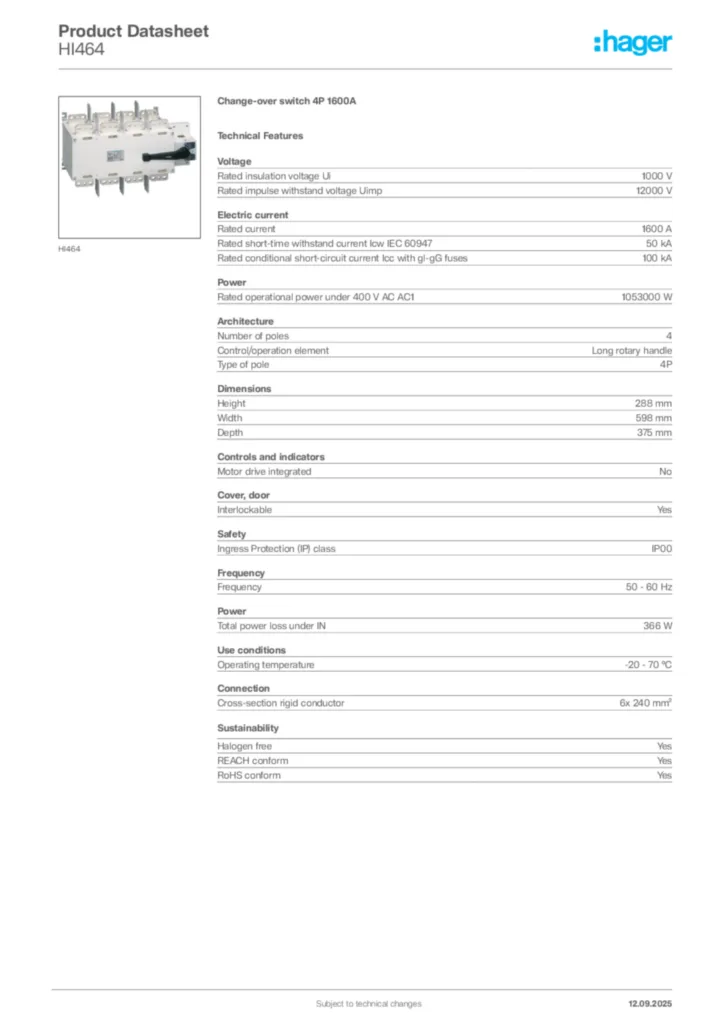

Product datasheet
